Garmin Bail - Garmin Bail Mount: Bracket Assembly; Garmin Bail Mount: Cradle Installation

The device should be mounted in a
location that provides a clear view of the
screen and is easy to reach.
The device should be mounted in a
location that is sturdy enough to support
the mount and device.
The device must be mounted in a location
that allows room to route and connect the
cables. You should allow at least 8 cm
(3 in.) of clearance behind the case.
0RXQWLQJWKH%UDFNHW
$VVHPEO\


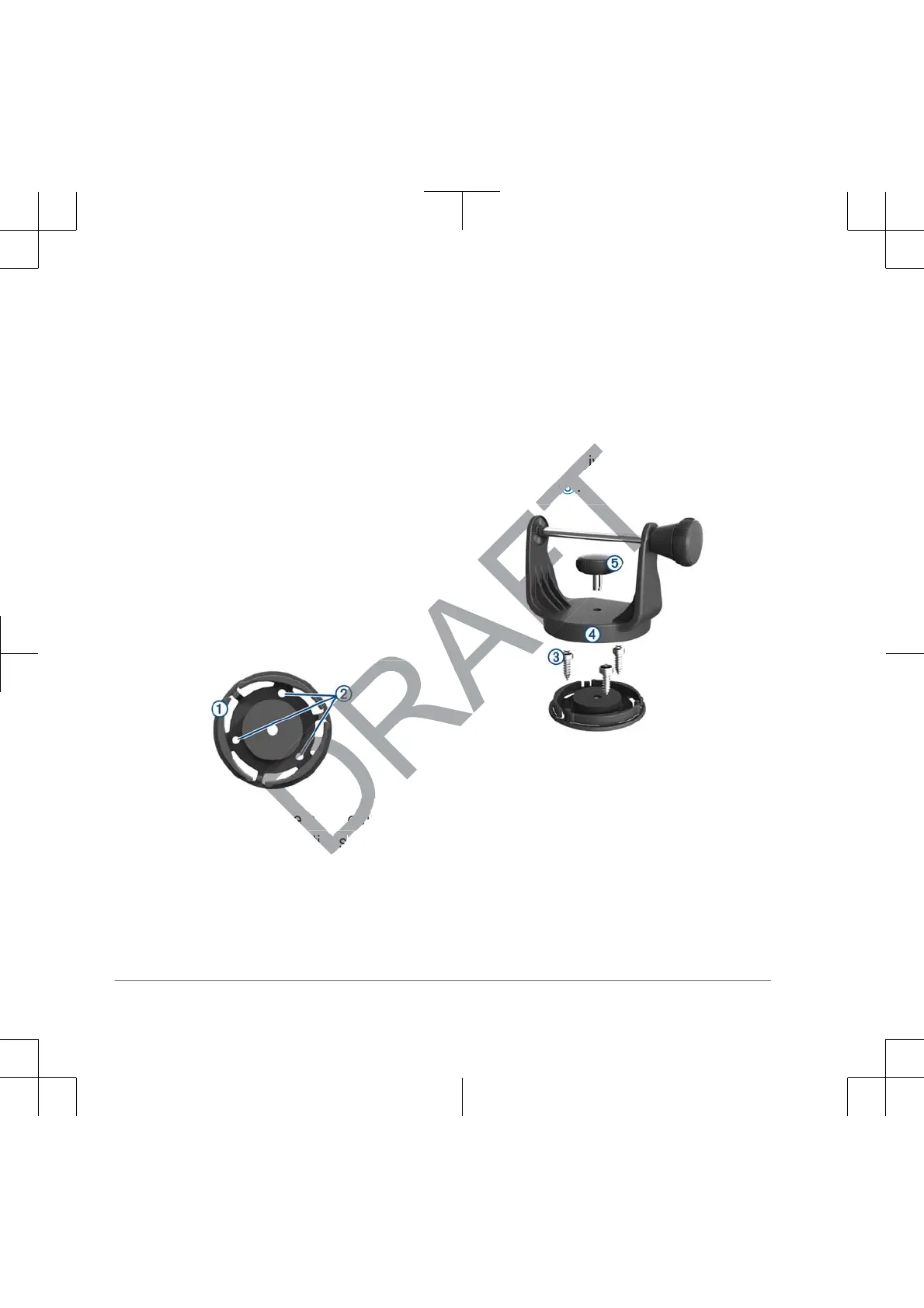

Separate the swivel base
➀
from the
mount.

Using the swivel base as a template,
mark the pilot hole locations
➁
.

Select an option:
• If you intend to secure the base
with machine bolts, drill three 5 mm
(
5
/
32
in.) holes.
• If you intend to secure the base
with self-tapping screws, drill three
1.5 mm (
1
/
16
in.) starter holes.
127(Do not make the holes
deeper than half of the screw
length.

Secure the swivel base with the bolts
or screws
➂
.

Place the swivel mount bracket
➃
over the swivel base and secure it with
the short knob
➄
.
,QVWDOOLQJWKH0RXQWRQWKH
0RXQWLQJ%UDFNHW

Align the slot
➀
on the back of the
cradle with the long mounting knob
➁
,
