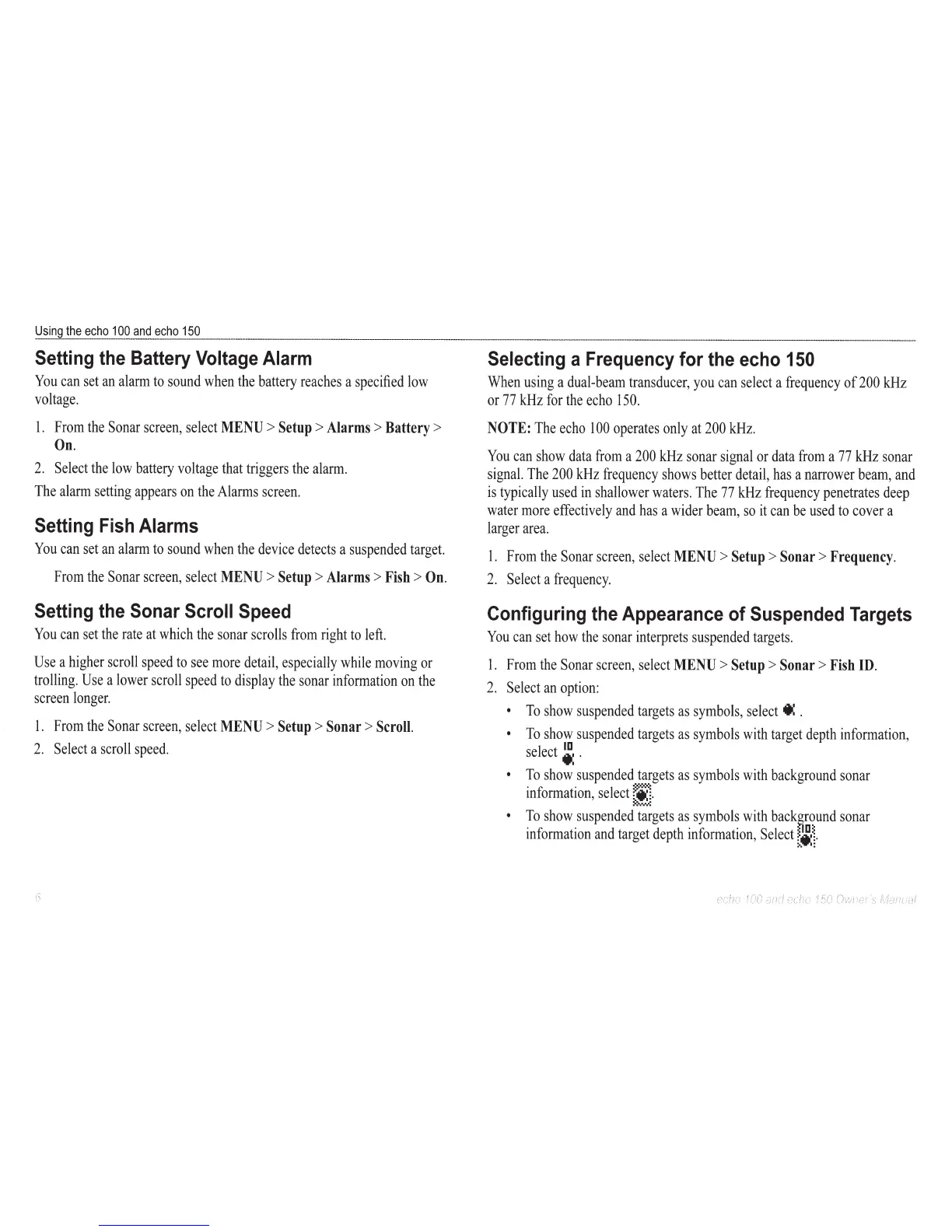

Using
the
echo
1
00
and
echo
150
----------------
Setting
the
Battery
Voltage
Alarm
You
can
set
an
alarm
to
sound
when
the
battery
reaches
a
specified
low
voltage.
1.
From
the
Sonar
screen,
select
MENU
>
Setup
>Alarms > Battery>
On.
2.
Select
the
low
battery
voltage
that
triggers
the
alarm.
The
alarm
setting
appears
on
the
Alarms
screen.
Setting
Fish
Alarms
You
can
set
an
alarm
to
sound
when
the
device
detects
a
suspended
target.
From
the
Sonar
screen,
select
MENU>
Setup>
Alarms> Fish>
On.
Setting
the
Sonar
Scroll
Speed
You
can
set
the
rate
at
which
the
sonar
scrolls
from
right
to
left.
Use
a
higher
scroll
speed
to
see
more
detail,
especially
while
moving
or
trolling.
Use
a
lower
scroll
speed
to
display
the
sonar
information
on
the
screen
longer.
1.
From
the
Sonar
screen,
select
MENU
>
Setup
>
Sonar
>
Scroll.
2.
Select
a
scroll
speed.
Selecting
a
Frequency
for
the
echo
150
When
using
a
dual-beam
transducer,
you
can
select
a
frequency
of
200
kHz
or
77
kHz
for
the
echo
150.
NOTE:
The
echo
100
operates
only
at
200kHz.
You
can
show
data
from
a
200
kHz
sonar
signal
or
data
from
a
77
kHz
sonar
signal.
The
200
kHz
frequency
shows
better
detail,
has
a
narrower
beam,
and
is
typically
used
in
shallower
waters.
The
77
kHz
frequency
penetrates
deep
water
more
effectively
and
has
a
wider
beam,
so
it
can
be
used
to
cover
a
larger
area.
1.
From
the
Sonar
screen,
select
MENU
>
Setup
>
Sonar>
Frequency.
2.
Select
a
frequency.
Configuring
the
Appearance
of
Suspended
Targets
You
can
set
how
the
sonar
interprets
suspended
targets.
1.
From
the
Sonar
screen,
select
MENU>
Setup>
Sonar>
Fish
ID.
2.
Select
an
option:
•
To
show
suspended
targets
as
symbols,
select
.:
.
•
To
show
suspended
targets
as
symbols
with
target
depth
information,
select
« .
•
To
show
suspended
targets
as
symbols
with
background
sonar
information,
select
~·
•
To
show
suspended
targets
as
symbols
with
backfrround
sonar
information
and
target
depth
information,
Select
~~t
:-.
:
1
()i)
()V/1
