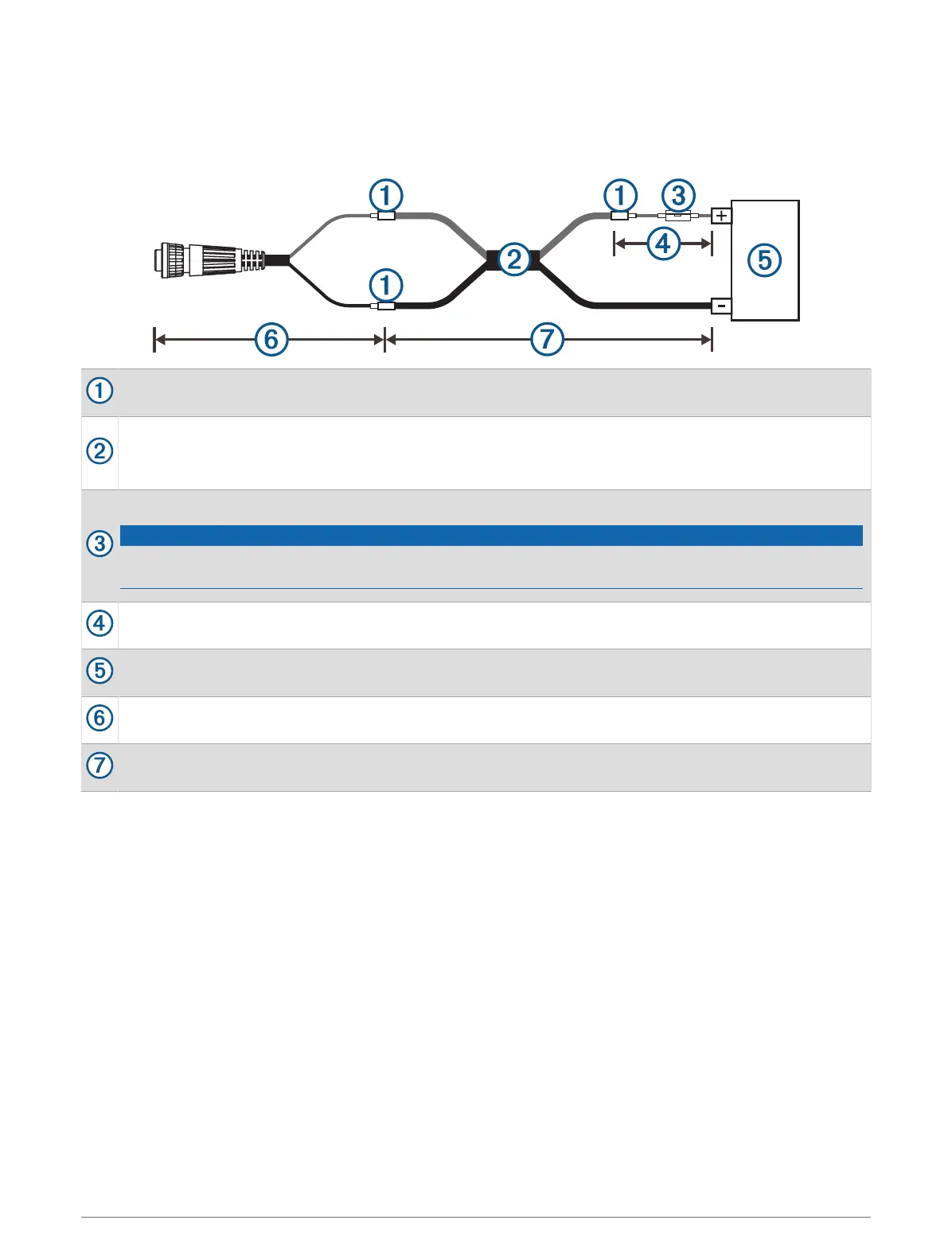

Power Wire Extensions
If necessary, the power wires can be extended using the appropriate wire gauge for the length of the extension.
NOTE: The power wires on this cable are red (+) and black (-). The other wires on this cable are used for other,
optional connections and are not shown in this diagram.
Splice
• Up to 4.6m (15ft.): 10AWG (5.26mm
2
) extension wire
• Up to 7m (23 ft.): 8AWG (8.36mm
2
) extension wire
• Up to 11m (36 ft.): 6AWG (13.29mm
2
) extension wire
Fuse (8A, 125 V fast-acting)
NOTICE
The fuse should be installed as close to the battery as possible. When extending the power wires, remove
the inline fuse and relocate it near the battery connection.
20.3cm (8in.)
Battery
20.3cm (8 in.)
11m (36 ft.) maximum extension
Additional Grounding Consideration
This device should not need additional chassis grounding in most installation situations. If you experience
interference, the grounding screw on the housing can be used to connect the device to the water ground of the
boat to help avoid the interference.
11
