Garmin GPSMAP 17 - Complete Interface Diagram

9
INSTALLATION INSTRUCTIONS
GPSMAP 2006C/2010C & GPS 17
SHIP'S BATTERY
10-32 VOLTS
+
-
GARMIN GSD 20
SOUNDER MODULE
(SEE GSD 20
INSTALL INSTRUCTIONS)
4. A GARMIN SOUNDER UNIT (OTHER THAN GSD 20) CAN PROVIDE WATER DEPTH, WATER TEMPATURE,
AND SPEED VIA NMEA DATA FOR DISPLAY ON THE GPSMAP 2006/2010.
(-)
(-)
(-)

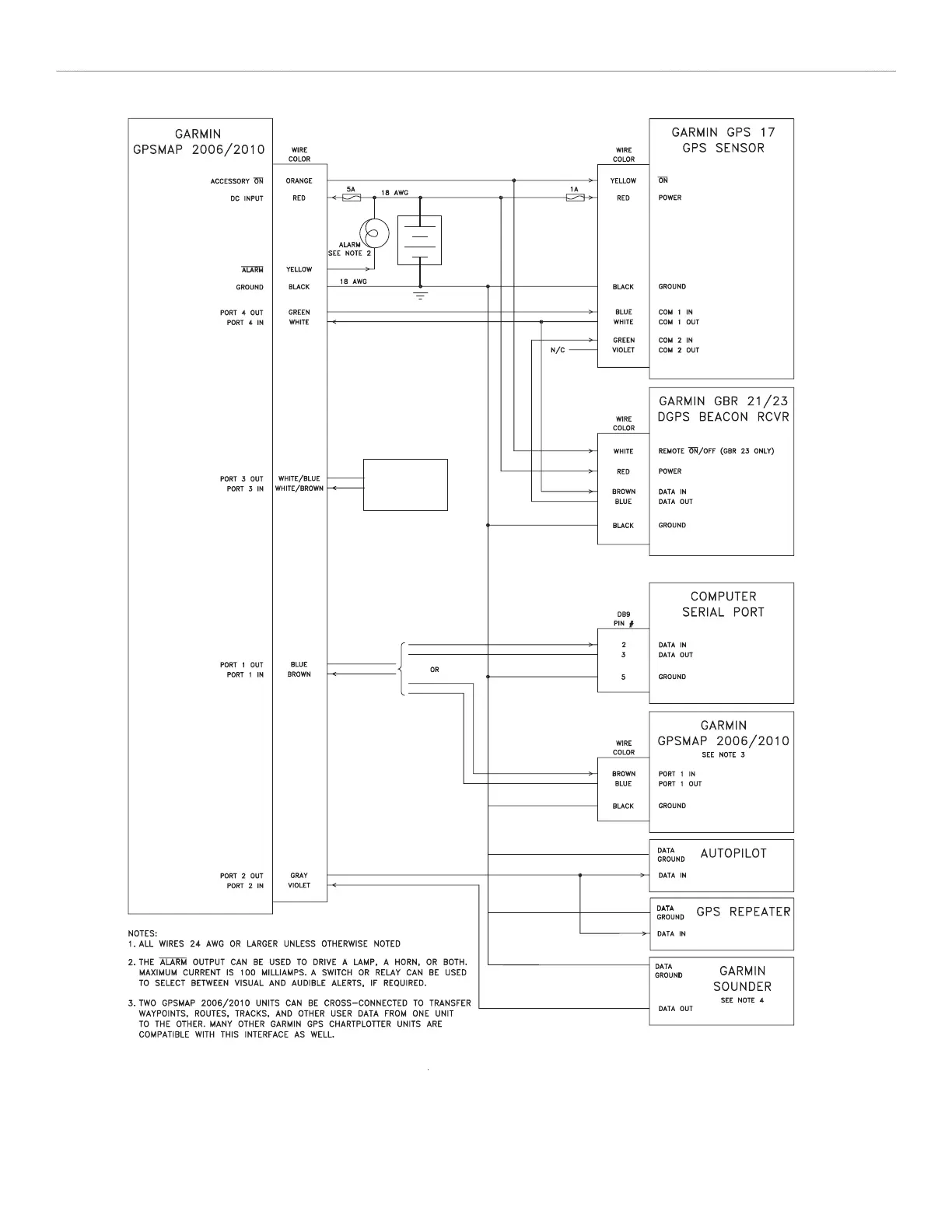

Diagram 2 - Complete Interface
