GARO TWIN+ - Page 18

USER MANUAL
155mm
Klipplinje
-FC2
-FC1
-FB1
-FB2
-XD2-XD1
41971
-KF1
-CC1 -CC2
-P1
-P2
-QA2-QA1
155mm
L1-L3,N,PE
-X1

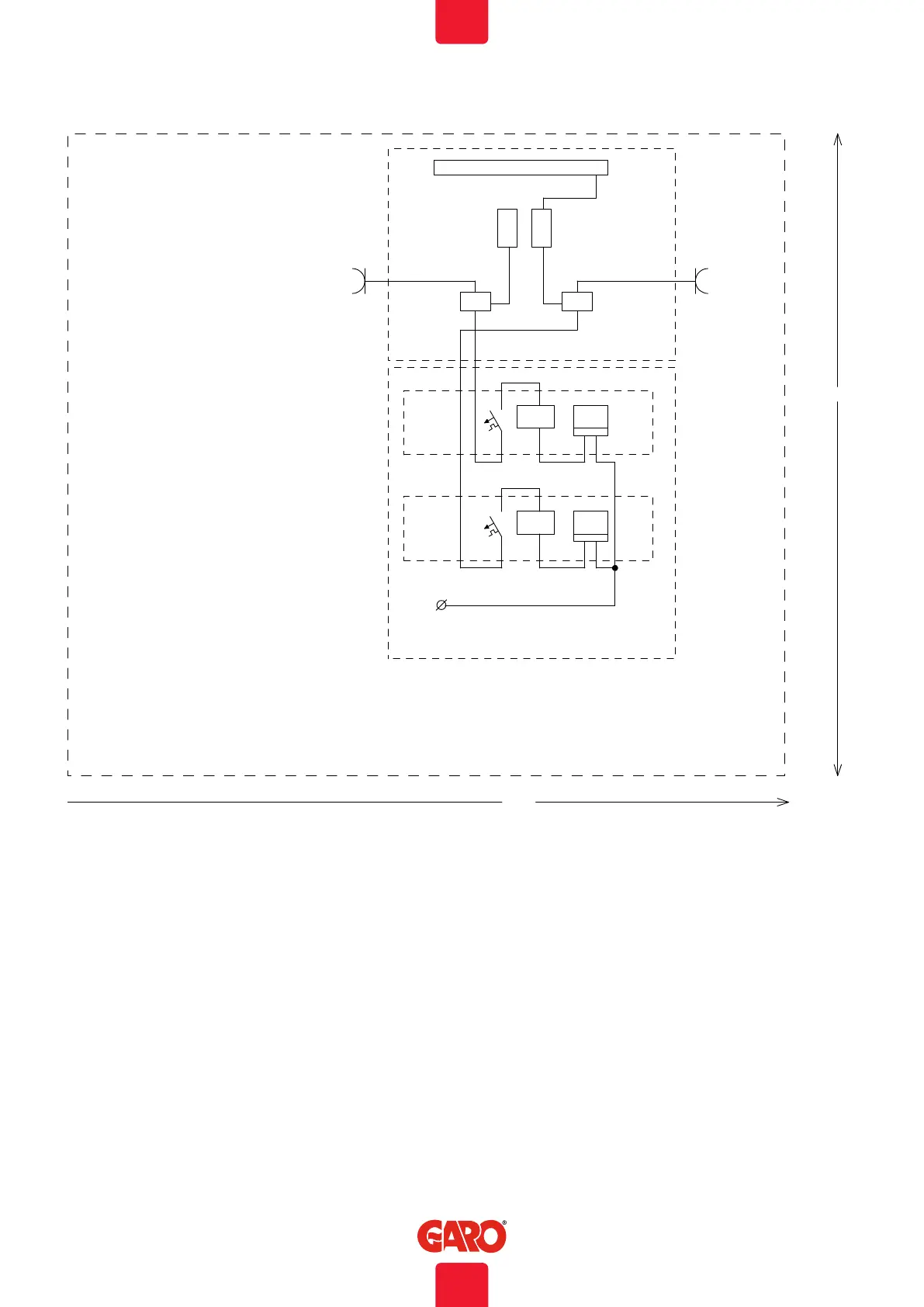

KF1 Top card RGB-Led
CC1 Charge Controller 1
CC2 Charge Controller 2
QA1 Contactor Left Outlet / Connector 1
QA2 Contactor Right Outlet / Connector 2
X1 Incoming terminal
1
FC1 Fuse Left Outlet / Connector 1
FB1 RCCB Left Outlet / Connector 1
P1 Energy Meter Left Outlet / Connector 1
2
FC2 Fuse Right Outlet / Connector 2
FB2 RCCB Right Outlet / Connector 2
P2 Energymeter Right Outlet / Connector 2
18
EN
