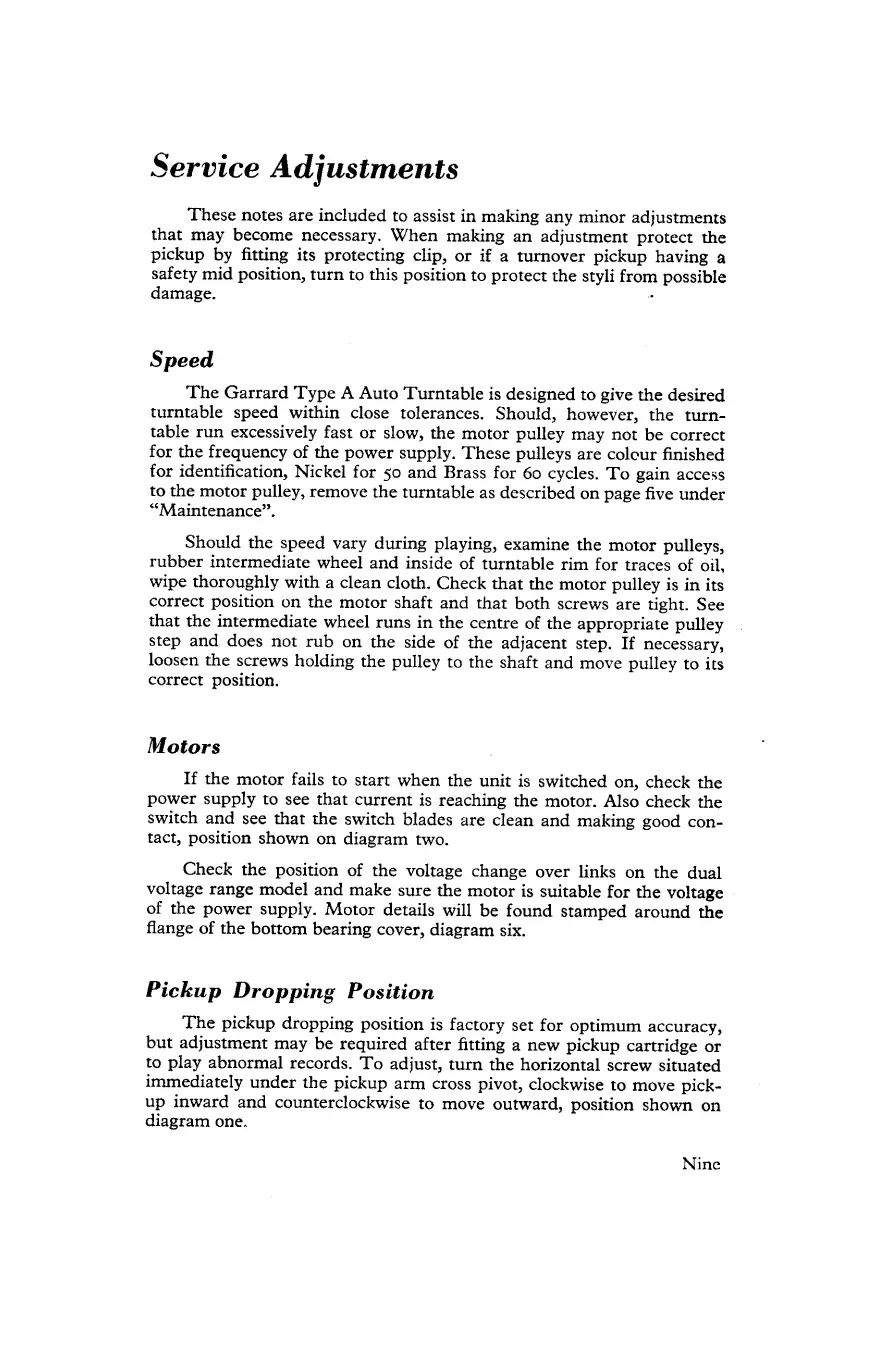

Service
Adjustments
These
notes
are
included
to
assist
in
making
any
minor
adjustments
that
may
become
necessary.
When
making
an
adjustment
protect
the
pickup
by
fitting
its
protecting
clip,
or
if
a
turnover
pickup
having
a
safety
mid
position,
turn
to
this
position
to
protect
the
styli
from
possible
damage.
-
Speed
The
Garrard
Type
A
Auto
Turntable
is
designed
to
give
the
desired
turntable
speed
within
close
tolerances.
Should,
however,
the
turn-
table
run
excessively
fast
or
slow,
the
motor
pulley
may
not
be
correct
for
the
frequency
of
the
power
supply.
These
pulleys
are
colour
finished
for
identification,
Nickel
for
50
and
Brass
for
60
cycles.
To
gain
access
to
the
motor
pulley,
remove
the
turntable
as
described
on
page
five
under
“Maintenance”.
Should
the
speed
vary
during
playing,
examine
the
motor
pulleys,
rubber
intermediate
wheel
and
inside
of
turntable
rim
for
traces
of
oil,
wipe
thoroughly
with
a
clean
cloth.
Check
that
the
motor
pulley
is
in
its
correct
position
on
the
motor
shaft
and
that
both
screws
are
tight.
See
that
the
intermediate
wheel
runs
in
the
centre
of
the
appropriate
pulley
step
and
does
not
rub
on
the
side
of
the
adjacent
step.
If
necessary,
loosen
the
screws
holding
the
pulley
to
the
shaft
and
move
pulley
to
its
correct
position.
Motors
If
the
motor
fails
to
start
when
the
unit
is
switched
on,
check
the
power
supply
to
see
that
current
is
reaching
the
motor.
Also
check
the
switch
and
see
that
the
switch
blades
are
clean
and
making
good
con-
tact,
position
shown
on
diagram
two.
Check
the
position
of
the
voltage
change
over
links
on
the
dual
voltage
range
model
and
make
sure
the
motor
is
suitable
for
the
voltage
of
the
power
supply.
Motor
details
will
be
found
stamped
around
the
flange
of
the
bottom
bearing
cover,
diagram
six.
Pickup
Dropping
Position
The
pickup
dropping
position
is
factory
set
for
optimum
accuracy,
but
adjustment
may
be
required
after
fitting
a
new
pickup
cartridge
or
to
play
abnormal
records.
To
adjust,
turn
the
horizontal
screw
situated
immediately
under
the
pickup
arm
cross
pivot,
clockwise
to
move
pick-
up
inward
and
counterclockwise
to
move
outward,
position
shown
on
diagram
one.
Nine
