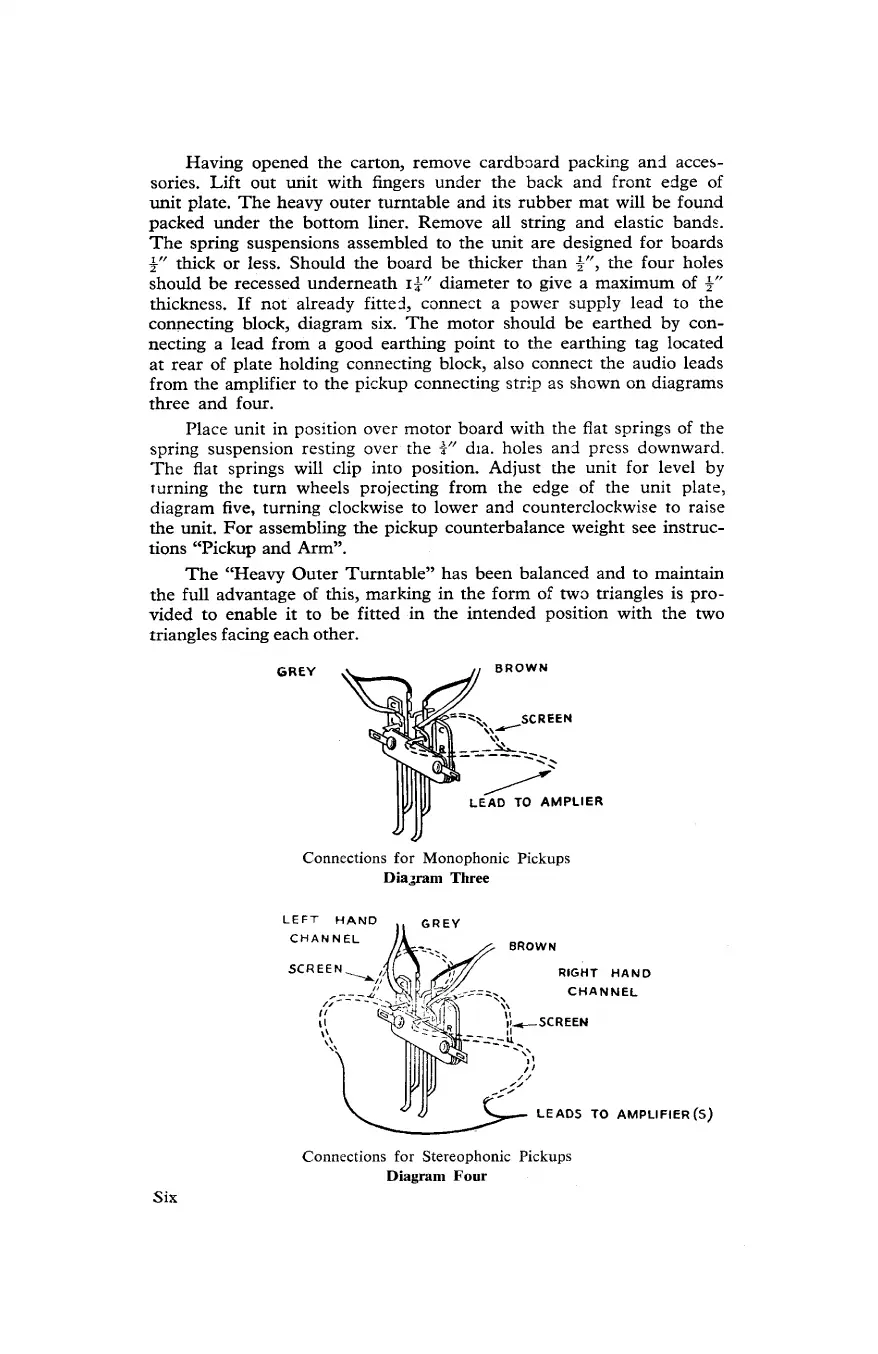

Having opened the carton, remove cardboard packing and acces-
sories. Lift out unit with fingers under the back and front edge of
unit plate. The heavy outer turntable and its rubber mat will be found
packed under the bottom liner. Remove all string and elastic bands.
The spring suspensions assembled to the unit are designed for boards
3” thick or less. Should the board be thicker than 3”, the four holes
should be recessed underneath 11” diameter to give a maximum of }”
thickness. If not already fitted, connect a power supply lead to the
connecting block, diagram six. The motor should be earthed by con-
necting a lead from a good earthing point to the earthing tag located
at rear of plate holding connecting block, also connect the audio leads
from the amplifier to the pickup connecting strip as shown on diagrams
three and four.
Place unit in position over motor board with the flat springs of the
spring suspension resting over the 3” dia. holes and press downward.
The flat springs will clip into position. Adjust the unit for level by
turning the turn wheels projecting from the edge of the unit plate,
diagram five, turning clockwise to lower and counterclockwise to raise
the unit. For assembling the pickup counterbalance weight see instruc-
tions “Pickup and Arm”.
The “Heavy Outer Turntable” has been balanced and to maintain
the full advantage of this, marking in the form of two triangles is pro-
vided to enable it to be fitted in the intended position with the two
triangles facing each other.
GREY BROWN
Connections for Monophonic Pickups
Diazram Three
LEFT HAND GREY
CHANNEL
BROWN
~~
‘yy .
SCREEN. a RIGHT HAND
.
ENG
CHANNEL
CF ae OR
rT sm
LEADS TO AMPLIFIER (5)
Connections for Stereophonic Pickups
Diagram Four
Six
