INSTALLATION INSTRUCTIONS (optional)
11

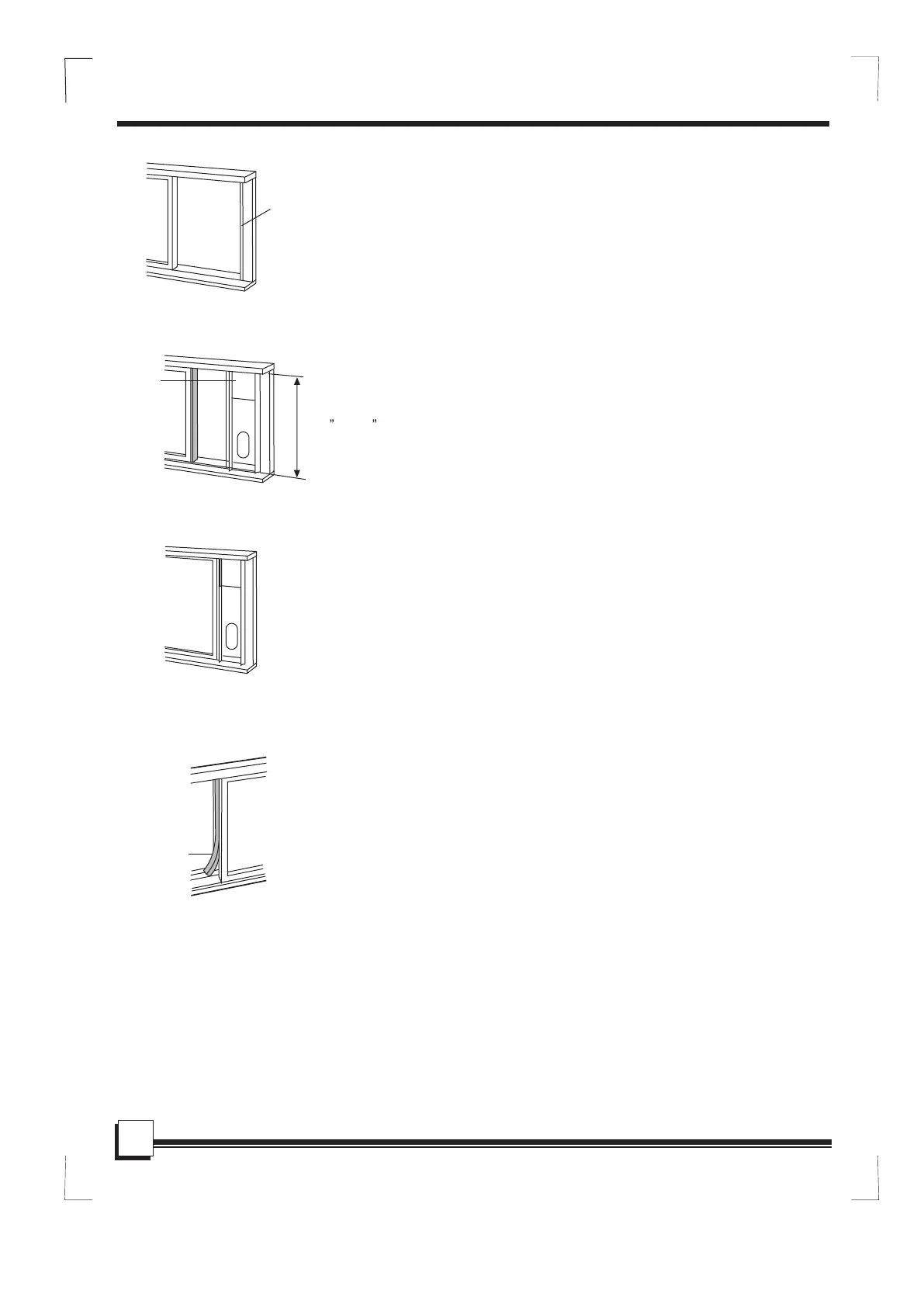

Installation in a sliding sash window
1. Cut the foam seal (adhesive type) to the proper length and
attach it to the window frame. Fig.12.
2. Attach the window slider kit to the window stool. Adjust the
length of the window slider kit according to the width of
window, and shorten the adjustable window kit if the width of
window is less than 26.5".
Open the window sash and place the window slider kit on
the window stool. Fig. 13.
3. Cut the foam seal (adhesive type) to the proper length
and attach it on the top of the window. Fig. 14.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the
gap between the top window sash and outer window
sash. Fig. 15.
Foam seal
Foam seal A
(adhesive type)
Fig.12
Fig.13
Fig.14
Fig.15
Window
panel
NOTE: All the illustrations in this manual are for explanatory
purposes only. Your unit may be slightly different. The
actual shape shall prevail.
26.5 ~ 48.0
