Installation
Tools Needed
-Medium Philips screwdriver; -Tape measure or ruler; -Knife or scissors;
-Saw (optional, to shorten window adapter for narrow windows)
Accessories
Your Window Installation Kit fits windows 67.5-123cm(26.5-48”) and can
be shortened for smaller windows.

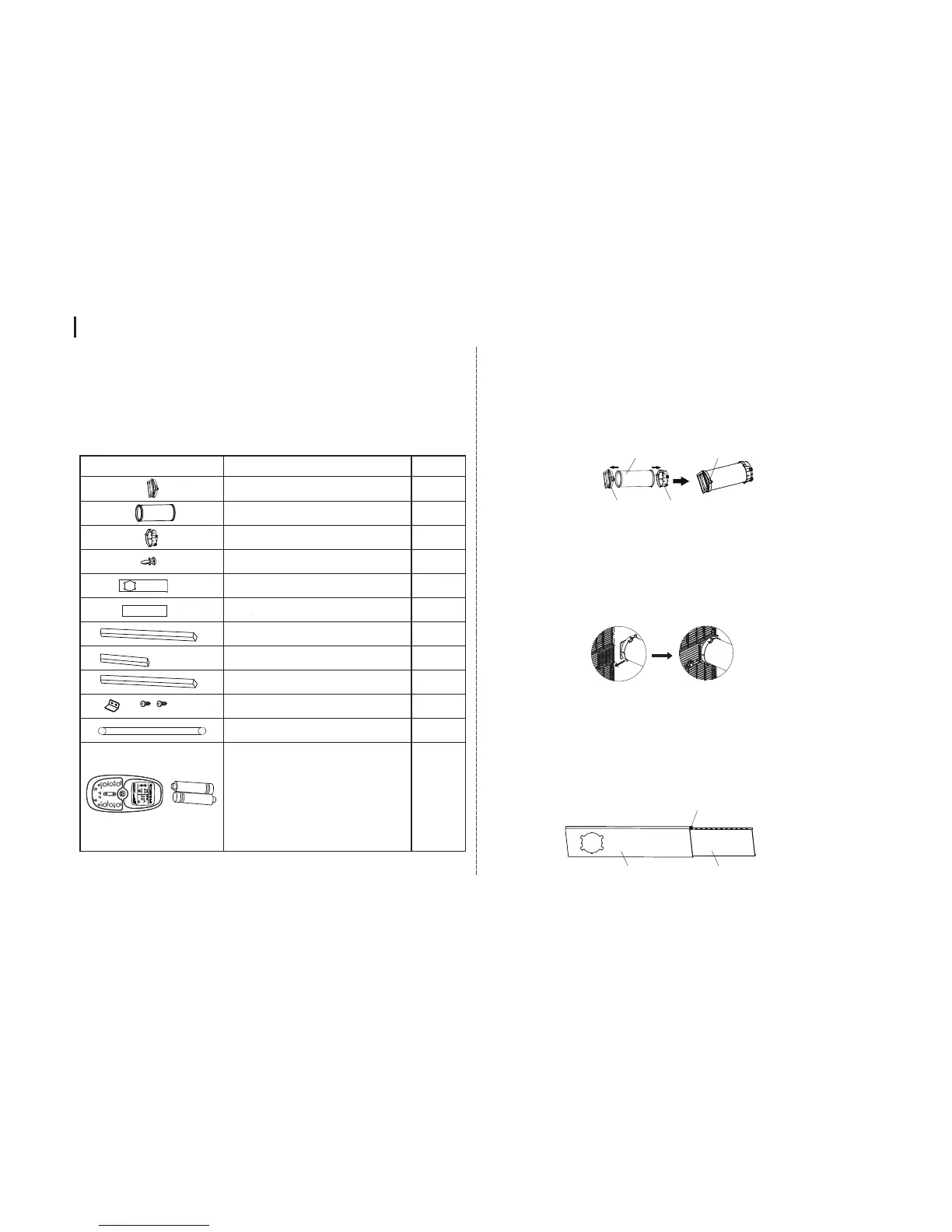

Window Installation Kit
7
Part
Description
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
2 pc
2 pc
1 set
1 set
Unit Adapter
Window Slider Adapter
Window Slider A
Window Slider B
Exhaust Hose
Bolt
Foam Seal A (Adhesive)
Foam Seal B (Adhesive)
Foam Seal C (Non-adhesive)
Security Bracket and 2 Screws
Drain Hose
Quantity
Remote Controller and Battery
(For remote control models only)
Press the exhaust hose into the window slider adapter and unit adapter,
then clamp automatically by elastic buckles of the adaptors.
Push the Exhaust hose into the air outlet opening of the unit along the
arrow direction.
Unit adapter Window slider
adapter
Exhaust hose
Exhaust hose
assembly
Step One: Preparing the Exhaust Hose assembly
Step Two: Install the Exhaust hose assembly to the unit
Step Three: Preparing the Adjustable Window Slider
1. Depending on the size of your window, adjust the size of the
window slider.
2. If the length of the window requires two window sliders, use the bolt
to fasten the window sliders once they are adjusted to the proper
length.
Window slider A Window slider B
Bolt
To Next Page
