Installation

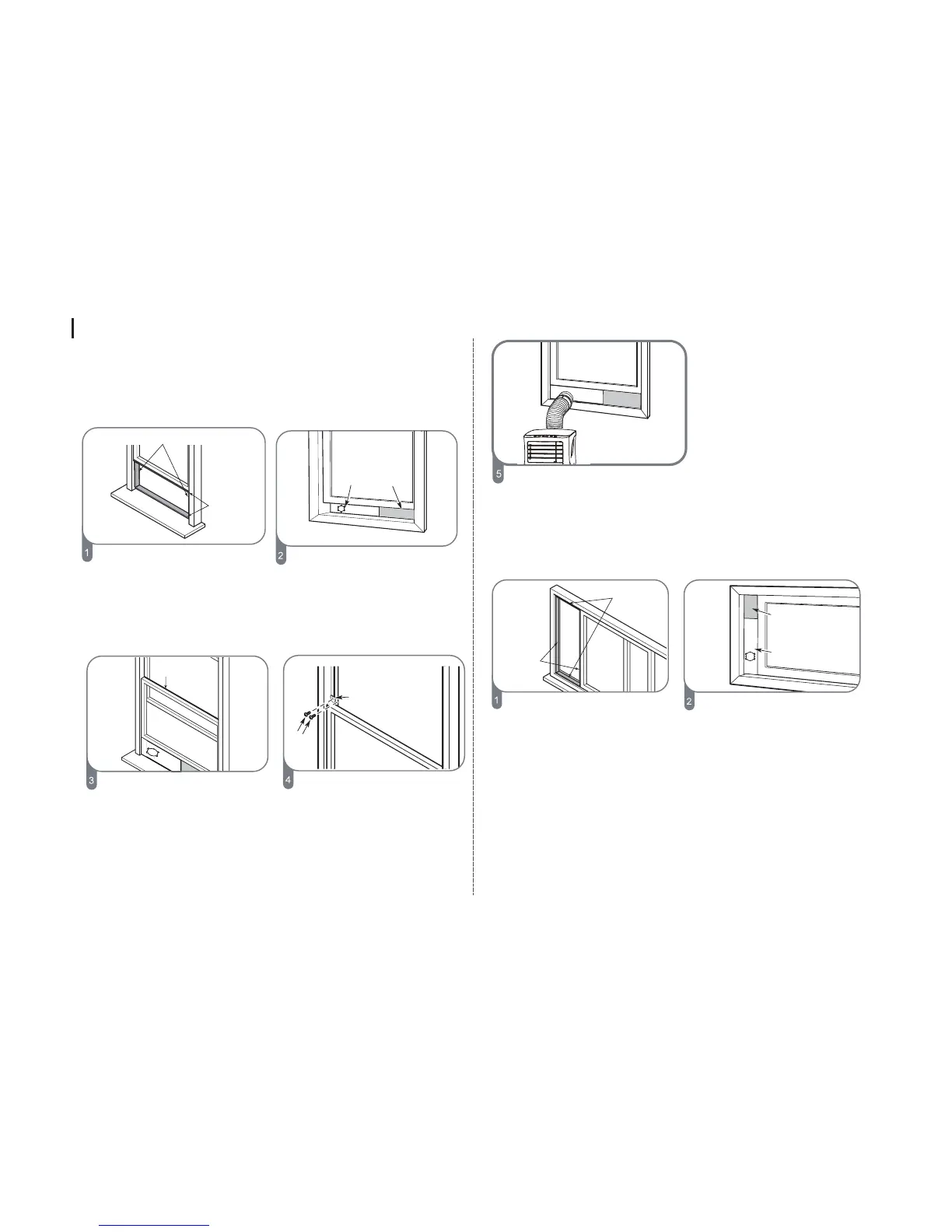

Note: Once the Exhaust Hose assembly and Adjustable Window Slider
are prepared, choose one of the following two installation methods.
Cut the adhesive foam seal A
and B strips to the proper
lengths, then attach them to
the window sash and frame
as shown.
Cut the adhesive foam seal A
and B strips to the proper
lengths, then attach them to
the window sash and frame
as shown.
Cut the non-adhesive foam
seal C strip to match the width
of the window. Insert the seal
between the glass and the
window frame to prevent air
and insects from getting into
the room.
If desired, install the security
bracket with 2 screws as shown.
Insert the window slider adapter
into the hole of the window slider.
Insert the window slider
assembly into the window
opening.
Insert the window slider
assembly into the window
opening.
Type 1: Hung Window Installation
Foam seal B
(Adhesive type-shorter)
2 Screws
Security Bracket
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
8
Type 2: Sliding Window Installation
Foam seal B
(Adhesive type-shorter)
Foam seal A
(Adhesive type)
Window slider A
Window slider B
(if required)
Foam seal C
(Non-adhesive type)
