Operation
10 Dimple Grinder User’s Guide

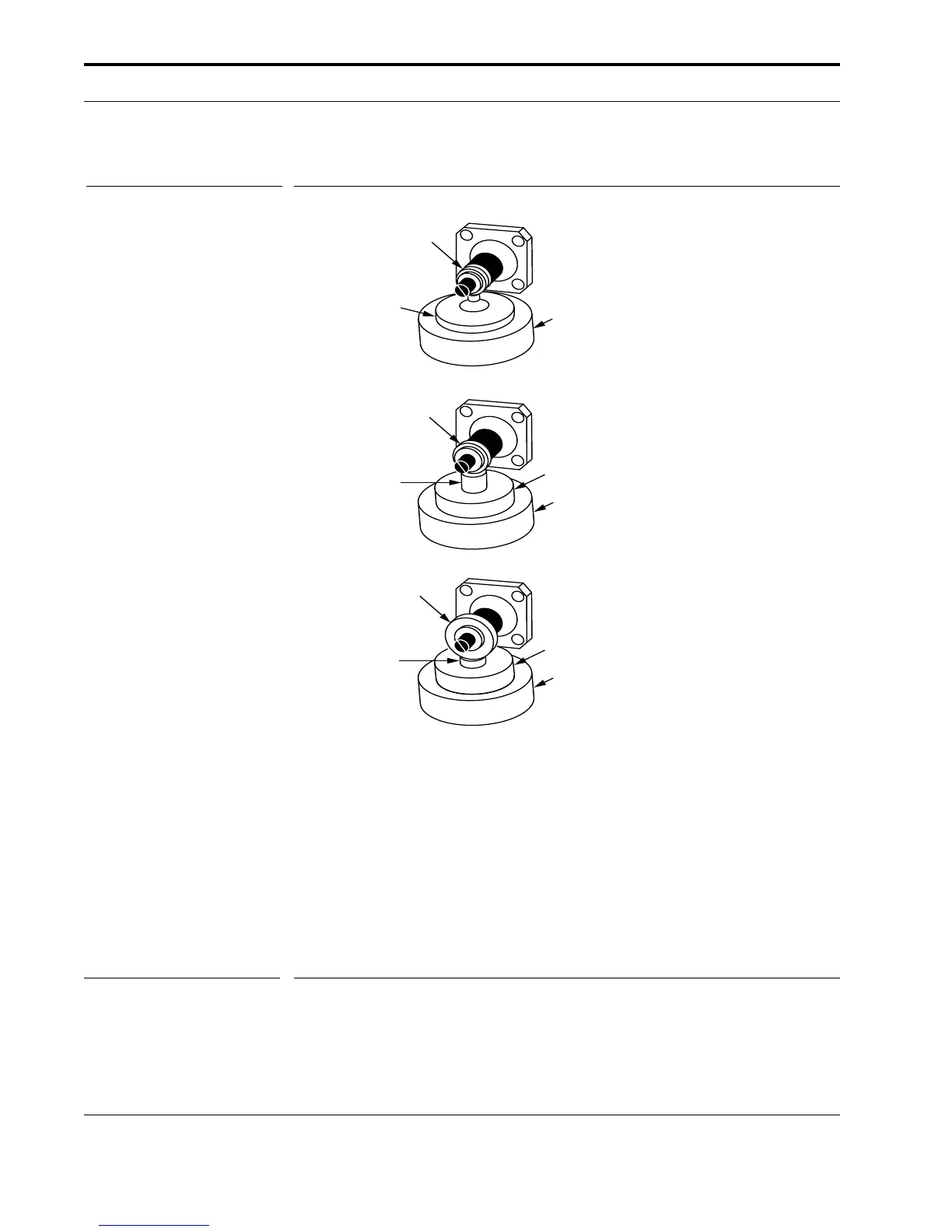

Figure 7 Specimen mounts.
The specimen mount for use in conjunction with the small, 10-mm diameter
wheel has a conical shape to prevent fouling of the grinding wheel axle assem-
bly.
The specimen mount for the large, 20-mm diameter wheel is a simple disc.
Note:
The specimen mounts should be periodically checked for smoothness and
flatness. This may be done either with the stereo microscope or a free-standing
dial indicator.
4.0 Operation
There are two methods by which specimens can be dimpled:
• Set grinding by dimple depth.
Specimen mount
(stainless steel)
Centering
ring
Microsope
mount
Centering
ring
Microsope
mount
Microsope
mount
10-mm
grinding wheel
15-mm
grinding wheel
Specimen mount
(pyrex or
stainless steel)
Specimen mount
(pyrex or
stainless steel)
20-mm
grinding wheel
