Gatan 656 - Figure 9 Set Grinding by Final Thickness

Operation
18 Dimple Grinder User’s Guide

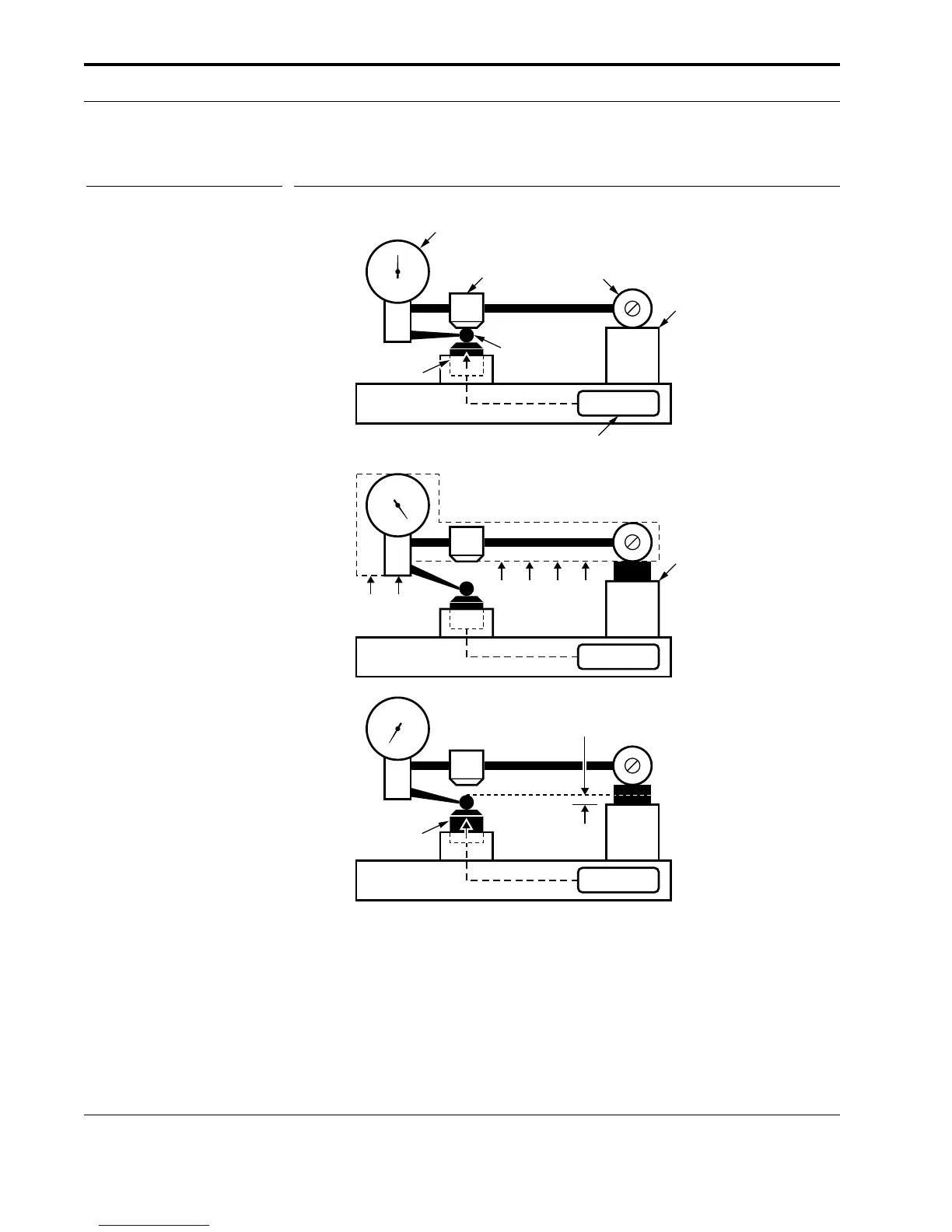

Figure 9 Set grinding by final thickness.
0.000
Specimen
mount
with
specimen
-0.015
0.000
0
Zero
stop
Analog dial
indicator
Grinding
wheel
Spring loaded
stylus
Digital
display
Specimen
mount
without
specimen
Micrometer head raised.
Digital display zeroed.
Micrometer head
raised 15 µm
Final specimen
thickness, 15 µm
T µm
