Finger tighten the bolts only for now - the bracket will find its own spot as you swing the gate
open from the closed position.

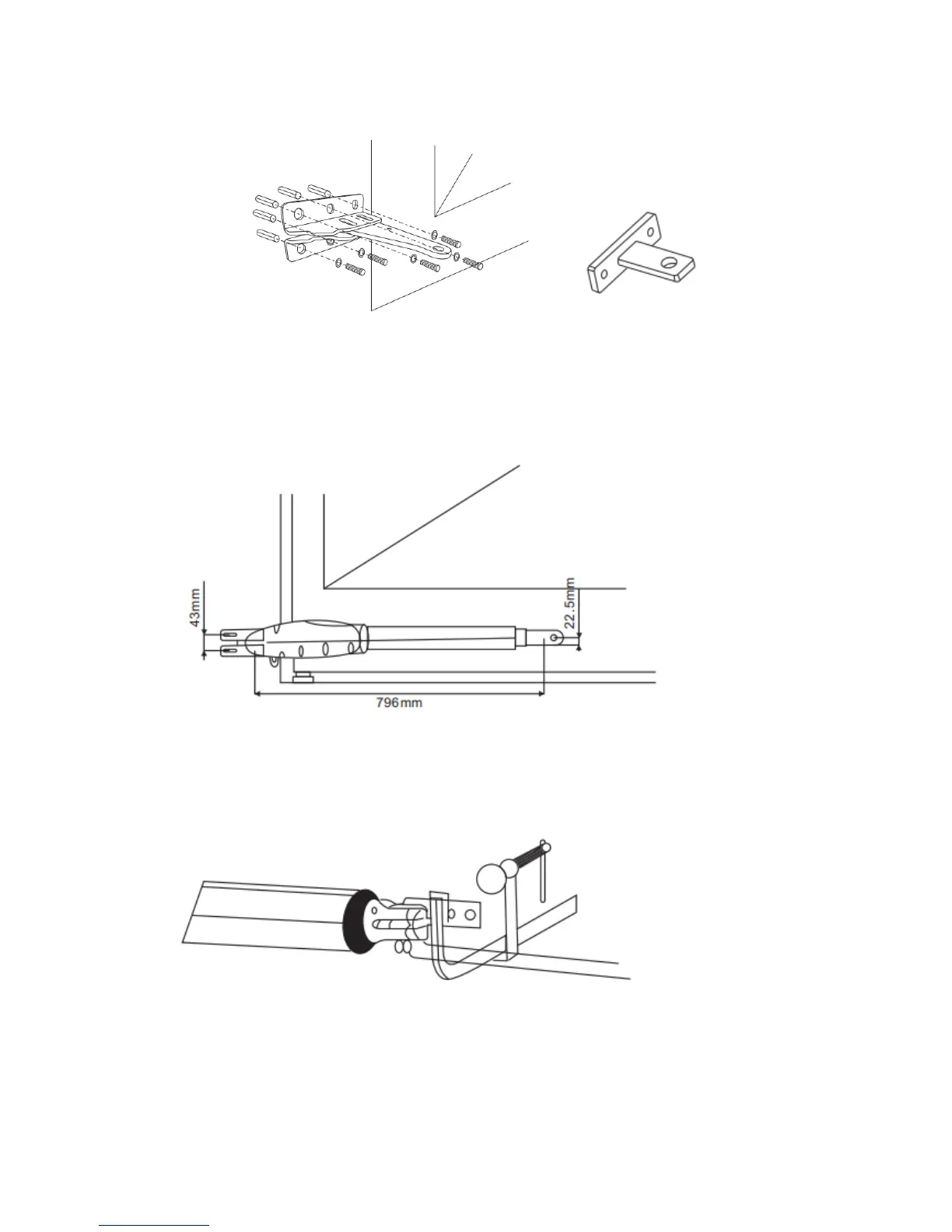

Figure 21 Figure 22
Refer to Figure 23, the distance between gate attach bracket mounting hole of the motor and post
bracket mounting hole is 796mm (31”) the gate attach
Figure 23
Now the post bracket is securely fastened to the hinge post. Next, with the gate in the closed
position clamp and fix the motor front bracket on the gate temporarily.
Figure 24
