16
Replacing Gateway 450ROG Components
www.gateway.com
4 Remove the main and optional secondary batteries by following the
instructions in “Removing the batteries” on page 8.
5 If the mini PCI screw is covered by a wireless Ethernet label, remove the
label.
6 Use the appropriate screwdriver to loosen the captive screw that secures
the mini PCI cover. (The screw cannot be removed.)

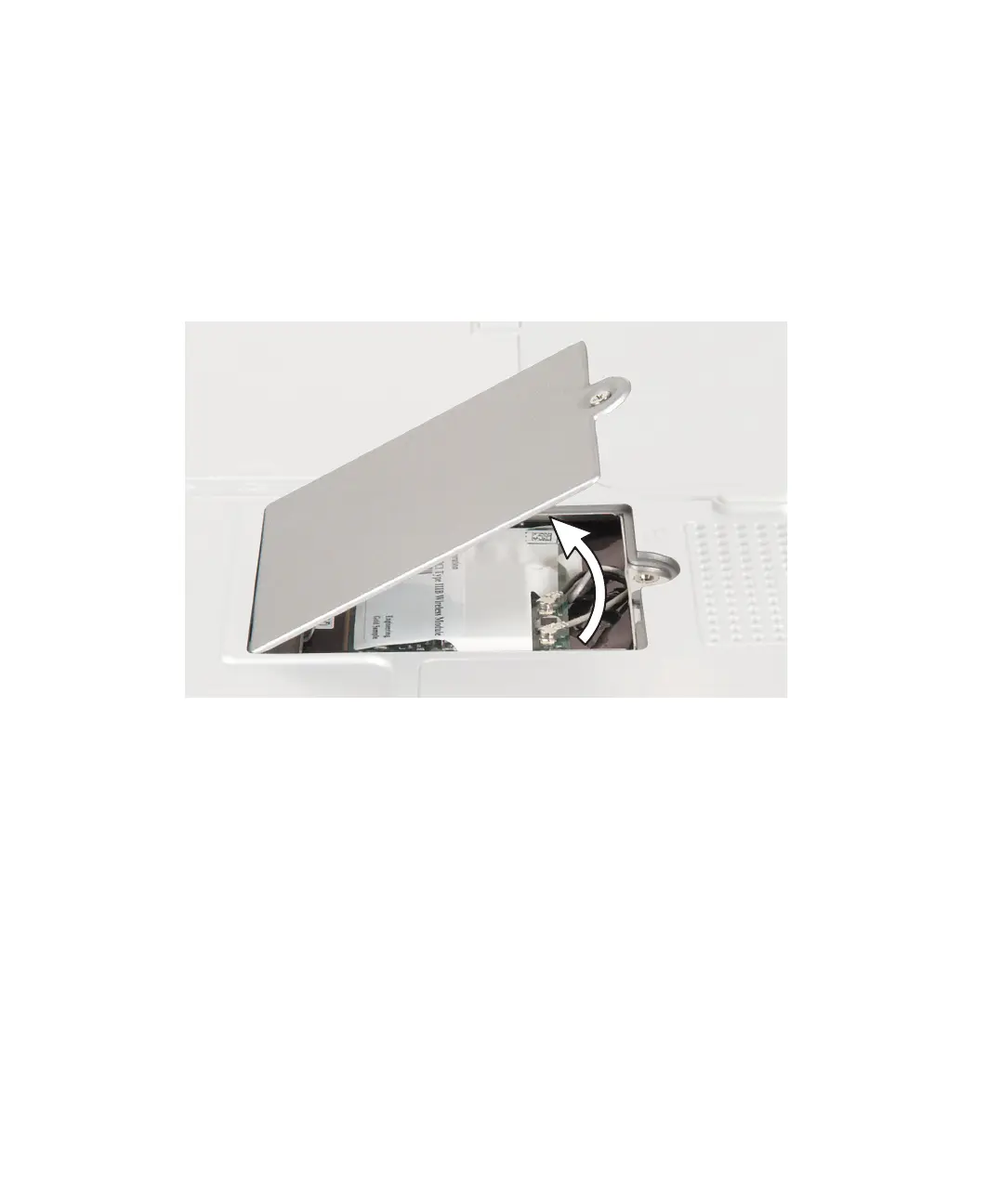

7 Lift the screw side of the cover upward, then slide the cover out.
To Next Page
