6. INVERTER REMOVAL
(1) Disconnect CN2, CN3.
(2) Remove two screws (a).
(3) Remove the INVERTER.
5. LCD MODULE REMOVAL
(1) Remove four screws (a).
(2) Remove the LCD Module.
LCD Module
(a)
(a)
(a)
(a)
(a)
(a)
(a)
(a)

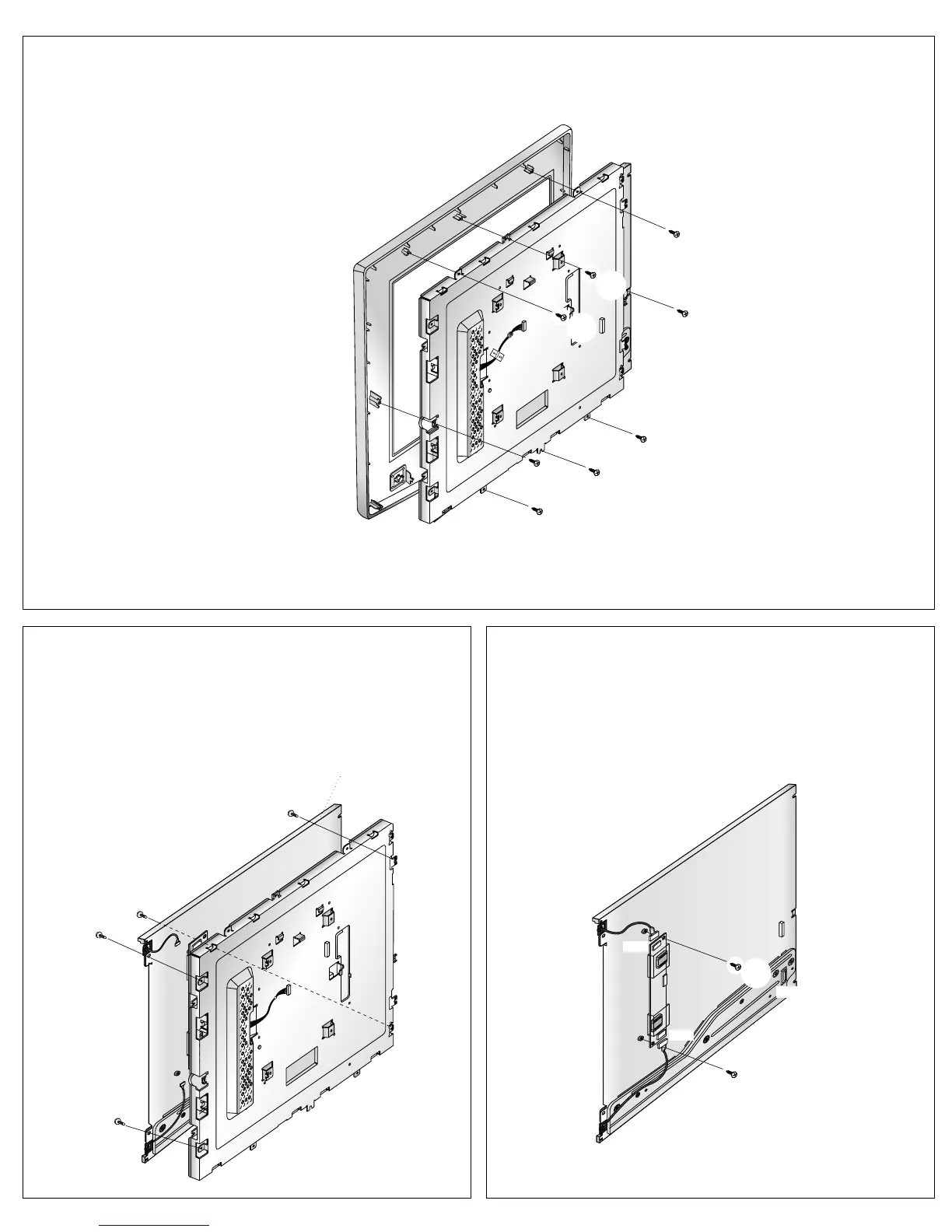

4. MAIN FRAME ASSEMBLY
REMOVAL
(1) Remove eight screws (a).
(2) Remove Main Frame Ass’y
