- 7 -
DISASSEMBLY
(a)
(a)
12V
GENESIS
12V
(b)
(b)
(c)
(c)
(c)
(c)

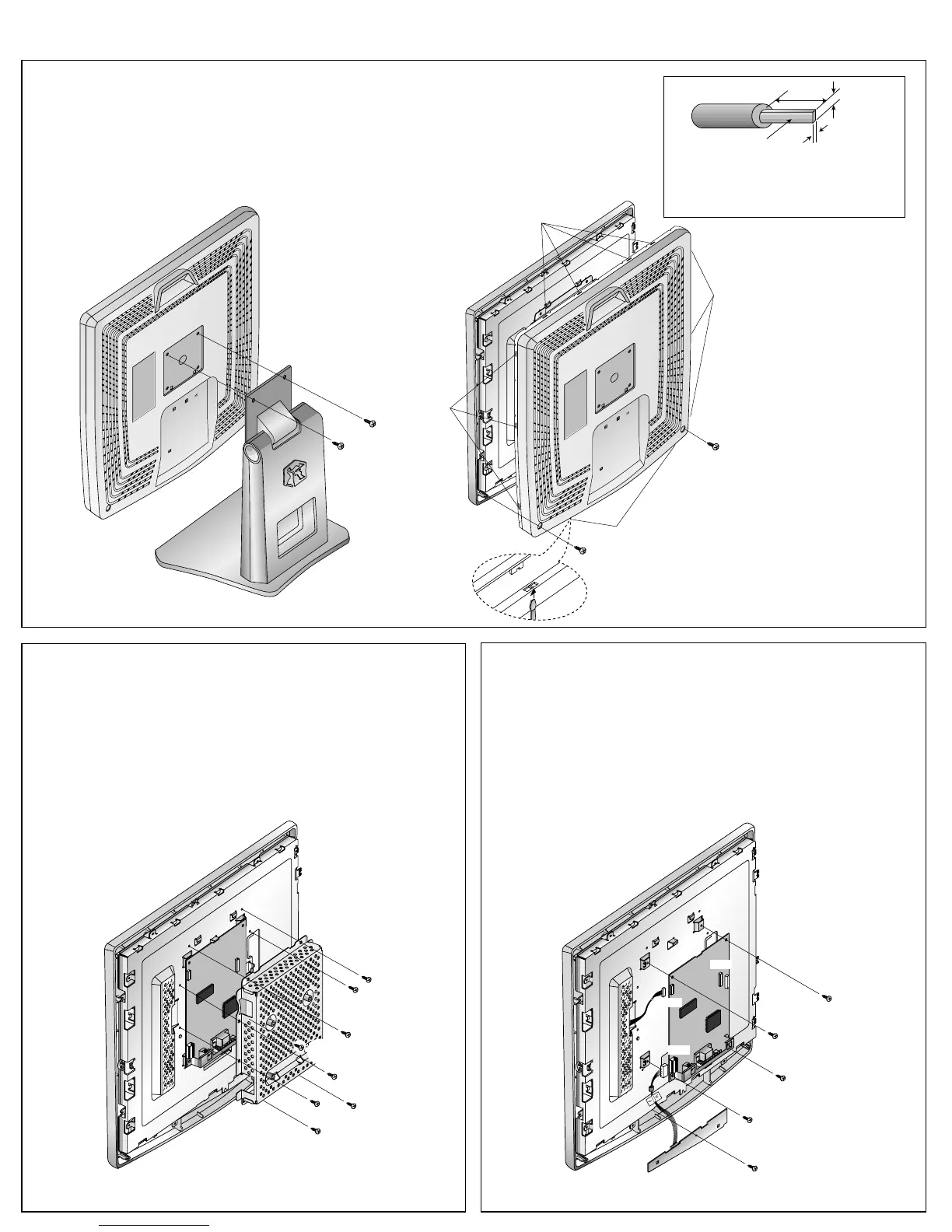

1. TILT/SWIVEL & BACK COVER REMOVAL
(1) Remove two screws (a).
(2) Remove the Tilt/swivel.
(3) Remove two screws (b) from the Back Cover.
(4) Release tweleve latches (c).
(5) Remove the Back Cover from the Bottom Side.
2. METAL REAR ASSEMBLY REMOVAL
(1) Remove eight screws (a).
(2) Remove the Metal rear Ass’y.
GENESIS
(a)
(a)
(a)
(a)
(a)
(a)
(a)
(a)
GENESIS
(a)
(a)
(a)
(b)
(a)
J711
J702
J710
3. CONTROL, MAIN PCB ASSEMBLY
REMOVAL
(1) Disconnect J710, J711 and J702.
(2) Remove four screws (a).
(3) Remove the Main PCB Ass’y.
(4) Remove the screw (b).
(5) Remove the Control PCB Ass’y.
Tip Spec
(a) Width : 5.0~9.0mm
(b) Thickness : 0.3~0.5mm
(c) Depth : less then 10.0mm
(a)
(b)
(c)
Tip
