Gateway VX900T User Manual

— 39 —
REF.NO. PART NO. DESCRIPTION REMARK
REF.NO. PART NO. DESCRIPTION REMARK
VX900T
SECTION 6

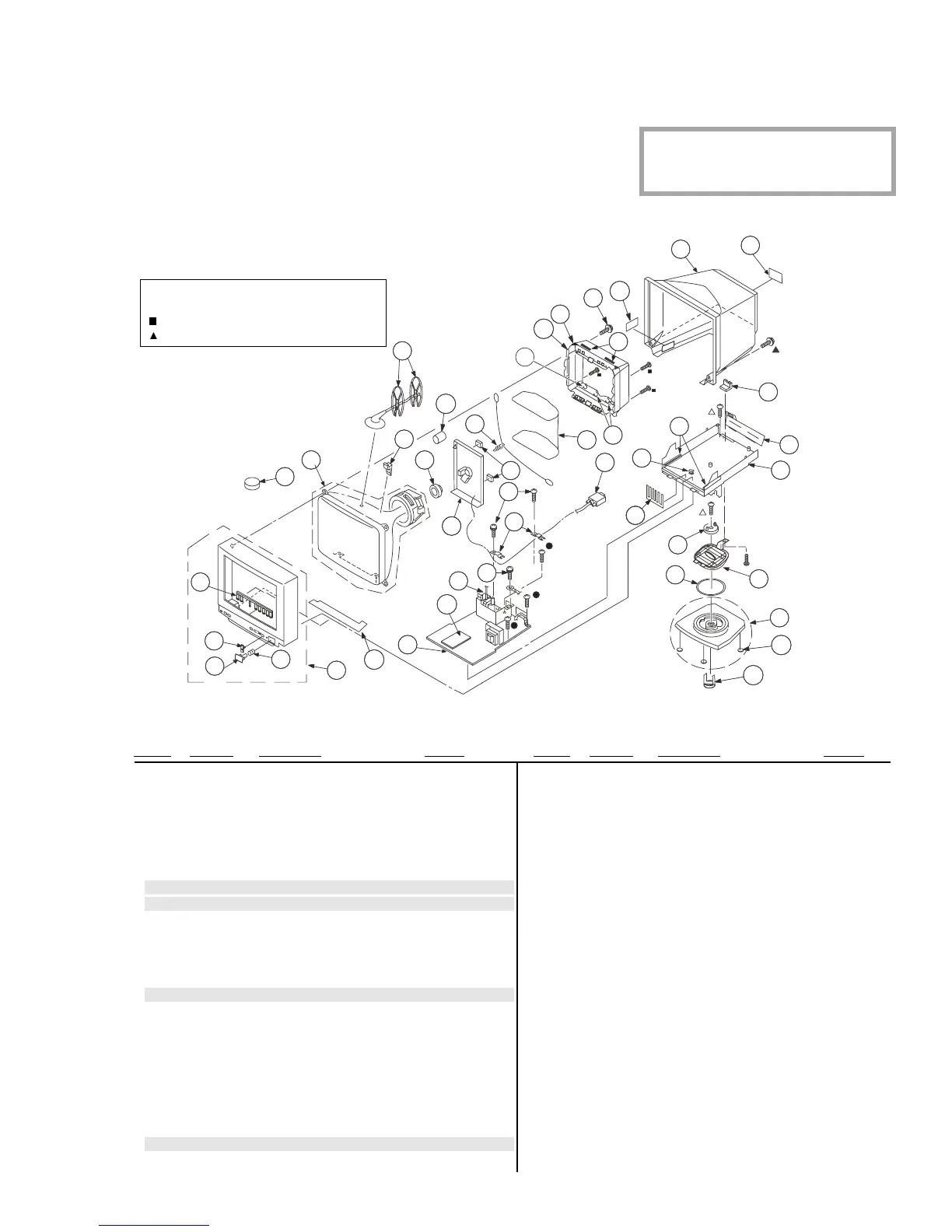

EXPLODED VIEWS
Note:
The components identified by shading
and mark
¡¡
¡¡
¡ are critical for safety.
Replace only with part number specified.
• Items with no part number and no descrip-
tion are not stocked because they are sel-
dom required for routine service.
• The component parts of an assembly are
indicated by the reference numbers in the
remarks column.
• Items marked " * " are not stocked
since they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
REF.NO. PART NO. DESCRIPTION REMARK
1 X-4036-403-1 BEZEL ASSY 2-5
2 3-653-339-21 SPRING, COMPRESSION
3 4-061-777-11 BUTTON, POWER
4 4-061-776-01 GUIDE, LIGHT
5 * 4-067-756-21 BUTTON, MULTI
7 * A-1372-577-A H BOARD, MOUNTED
8 ¡ 8-736-400-61 ITC ASSY, 19FRG-R2
9 ¡ 1-452-932-11 NECK ASSY
10 4-040-897-01 SPACER, DY
11 3-704-372-31 HOLDER, HV CABLE
12 * A-1346-800-B D BOARD, COMPLETE
13 * A-1343-597-A N BOARD, MOUNTED
14 ¡ 1-453-292-11 TRANSFORMER ASSY, FLYBACK (NX-4501//X4E4)
15 7-685-648-79 SCREW +BVTP 3X12 TYPE IT-3
16 7-685-881-09 SCREW + BVTT 4x8 (S)
17 * 4-045-131-01 STOPPER, CABLE
18 * 1-790-283-21 CABLE ASSY VIDEO (15P D-SUB)
19 * A-1298-800-A A BOARD, COMPLETE
20 * 4-050-329-11 CUSHION (A)
21 * 4-061-573-01 SPRING, TENSION
22 ¡ 1-416-859-11 COIL, DEMAGNETIZATION
23 4-041-021-11 HOLDER, DEGAUSSING COIL
REF.NO. PART NO. DESCRIPTION REMARK
24 4-365-808-01 SCREW (5), TAPPING
25 X-4036-132-2 SHIELD ASSY, EMI
26 * 4-067-344-31 CABINET
27 * 4-067-757-31 COVER, CONNECTOR
28 * 4-068-947-01 LABEL, INFORMATION
29 * 4-067-345-32 COVER, CABLE
30 * 4-067-346-01 HOLDER, CABLE
31 X-4036-135-2 BASE ASSY, CHASSIS
32 4-060-531-01 STOPPER (A)
33 4-067-615-31 SLIDER
34 4-060-705-01 RING, TILT SWIVEL
35 X-4036-411-1 BASE ASSY, STAND 39
36 4-041-621-21 STOPPER (B)
37 1-452-032-00 MAGNET, DISC
38 1-500-586-11 FILTER CLAMP (FERRITE CORE)
39 4-068-453-01 FOOT, RUBBER
40 4-067-341-01 SPRING, EMI
41 * 4-067-372-02 HOLDER, A (RIGHT)
41 * 4-067-373-02 HOLDER, A (LEFT)
42 * 4-067-374-01 HOLDER, B
43 * 4-067-370-01 CUSHION, 50 X 20
44 * 4-067-369-01 CUSHION, 30 X 30
45 4-395-824-01 HOLDER, DEGAUSSING COIL
6-1. CHASSIS
7-685-646-79 SCREW +BVTP 3x8
7-685-881-09 SCREW +BVTP 4x8
7-685-872-09 SCREW +BVTP 3x8
7-685-663-71 SCREW +BVTP 4x16
r
¢
11
38
43
22
18
23
40
30
25
31
29
33
35
36
39
34
32
10
9
21
20
16
17
15
14
13
7
1
2
3
4
37
8
5
19
41
42
24
44
28
27
26
45
12
