GAUI X3 - Page 14

6
M2.6x12
#842024
M2.6x12
x1 pcs
N2.5x5
#884003
x1 pcs
#216201
1
1
#216338
2
2
N2.5x5
P.10

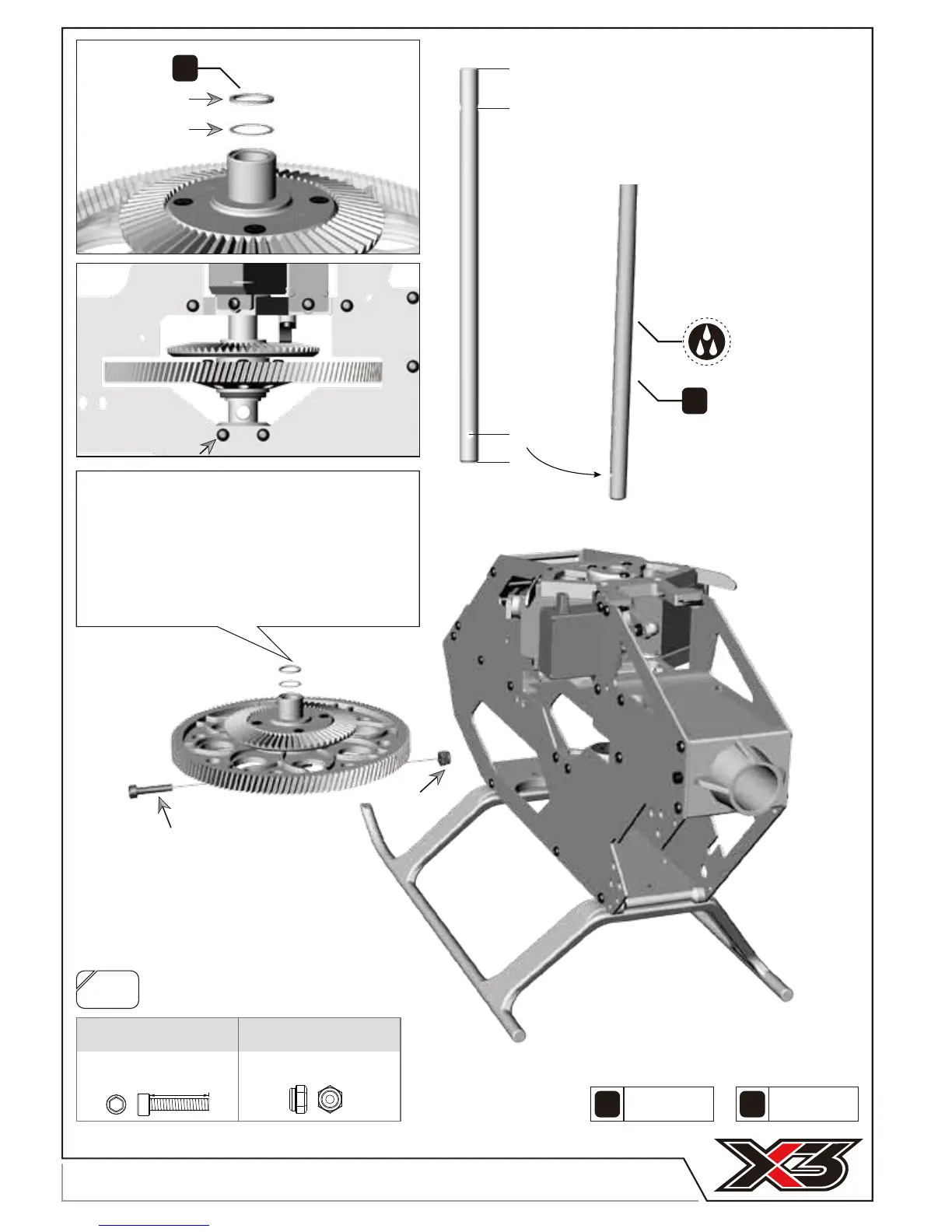

Main gear assembly
主齒盤組裝
W6.2x7.6x0.5
W6.2x7.6x0.1
12.0
配合P.22置入傳動尾管後，適當調整華司厚度
並上提第3軸承座，確認傘齒輪咬合順暢。
平面離洞口處較
近朝下
平面離洞口處較遠朝上
Top: longer distance to the notch
See P.22 installation of tail boom, adjust
with washer(s), lift up the main gear/shaft
/rotor head assembly to adjust , confirm
proper mesh between crown gear and tail
transmission gear.
Bottom:
shorter distance
to the notch
