P.9

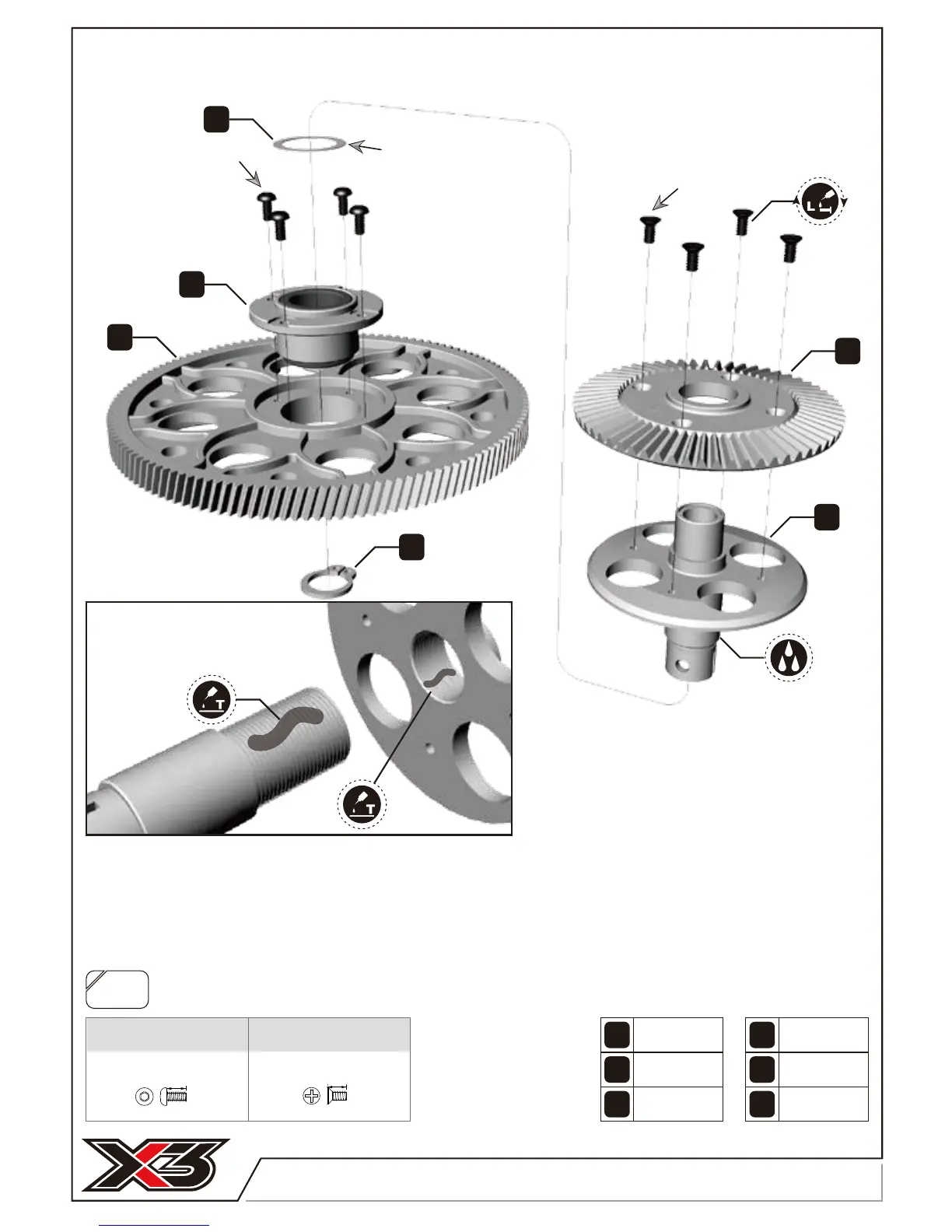

Main gear assembly
主齒盤組裝
5
M2x4
#842004
M2x4
Washer
W10.2x13.5x0.1
Adjust with different washers and double check smooth operation of the main gear assembly
M2x4
x4 pcs
M2x4
#832240
x4 pcs
#216351
1
5
#216182
2
3
#216114
3
1
#216338
4
6
#216111
5
4
#216181
6
2
4.0
4.0
適當的調整華司厚度以確認主齒盤旋轉順暢。
使用去汙劑去除上輪鼓及單向鋼套鎖牙處的保護油，在使用內附的缺氧膠塗抹於上輪鼓及單向鋼套
鎖牙處，並確認鎖入至底，放置1小時後擦除表面殘膠並靜置24小時後才可組裝飛行。
逆牙方向鎖入
Counter threaded (you should
assemble the two part from the
usual opposite direction).
*Important: Use CLEANING NAPHTHA or
Alcohol to remove the protective oil from the
One Way Sleeve & Hub BEFORE assembly.
Customer should take great care in assembling
the two parts together and not forcefully
(it will damage the threads making the part
unusable).
When handled with care, the two parts should be able to be assembled together just by hand, no tool
needed at the beginning.
Use tool to do the final tightening when the hubis all the way to the bottom.
Notice ample anaerobic glue should be used on both the Hub and the One Way Sleeve, excess glue
wiped off after sitting for 1 hour.
The assembled part needs at least 24hours to dry and cure before use.
