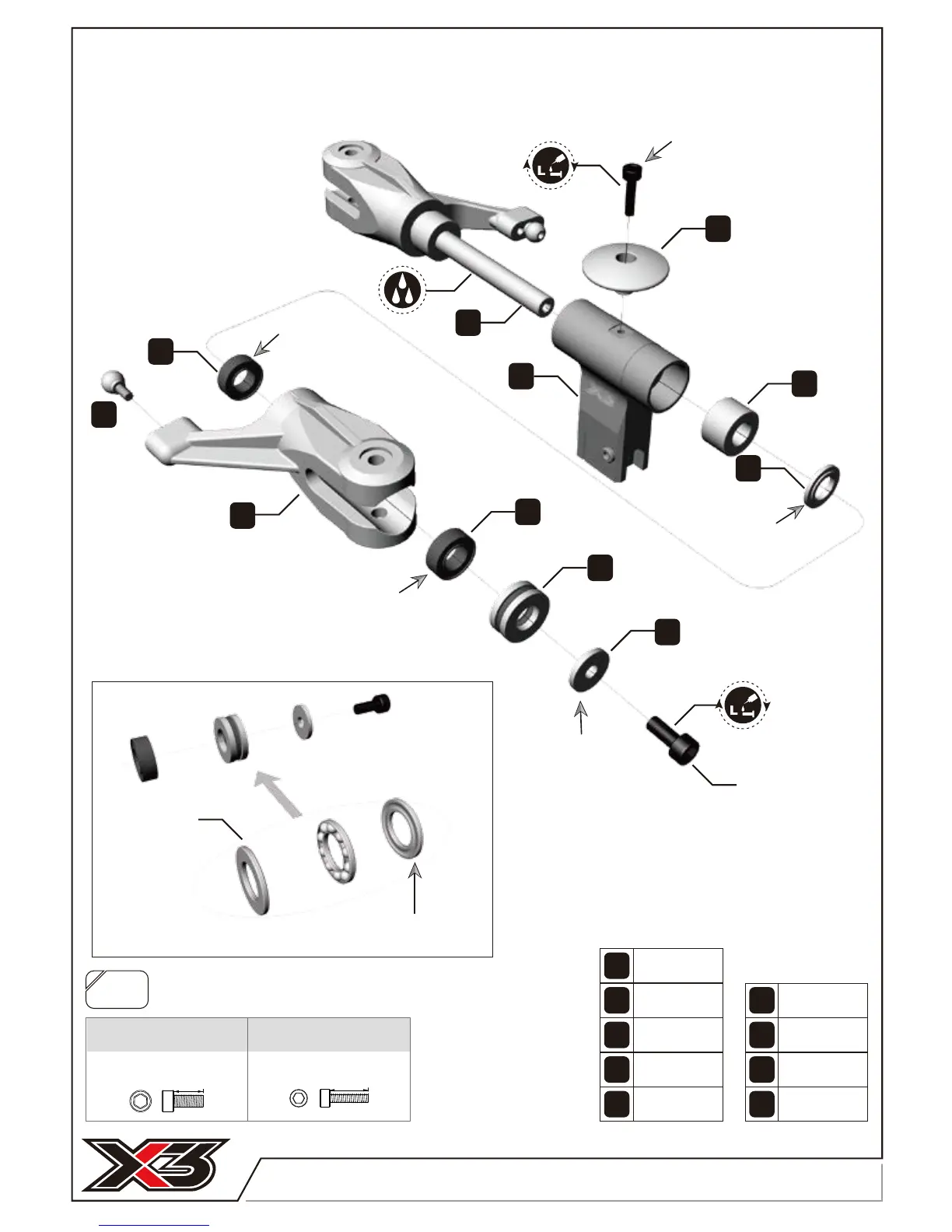

GAUI X3 - Main Rotor Grip Assembly

7
M2.6x6
#842034
M2.6x6
M2x8
W2.6x8x1
W5.1x9x1.1
Bearing
5x9x3
Bearing
5x9x3
Make sure M2.6x6 screw is secured with glue and tightened with moderate/proper force.
Do not over-tighten screw and strip it or it may become a flight safety risk.
Thrust Bearing
5x10x4
Bigger inner race
內徑較大
Smaller inner race
內徑較小
x2 pcs
M2x8
#842008
x1 pcs
#805102
1
9
#216339
2
7
#805114
3
5
#216102
4
3
3
#883552
5
1
#216171
6
8
#216123
7
6
#216202
8
4
#216101
9
2
8.0
6.0
2
P.11
Main rotor grip assembly
主旋翼頭組裝
M2.6x6螺絲請確實上膠並適當鎖緊，不可硬鎖以避免造成螺絲受損，影響飛行安全性。
