GAUI X3 - Tail Boom Assembly

可使用1張紙滾入齒輪之間
調整間隙為0.1mm。
One can use a small strip of paper to
adjust the pinion / main gear mesh to be
around 0.1mm.
When installing the pinion
confirm the position of pinion/ main gear as
pictured below.
Gear Ratios
安裝完成時需確認馬達齒位置如下圖。
齒輪傳動比
9T 14.55:1:4.69
10T 13.10:1:4.69
11T 11.90:1:4.69
12T 10.91:1:4.69
13T 10.07:1:4.69
12
M2x4
#842004
x4 pcs
M3x5
#842018
x2 pcs
M3x3
#842029
x2 pcs
#216110
1
3.0
5.0
4.0
M3x3
M2x4
M3x5
1
P.17

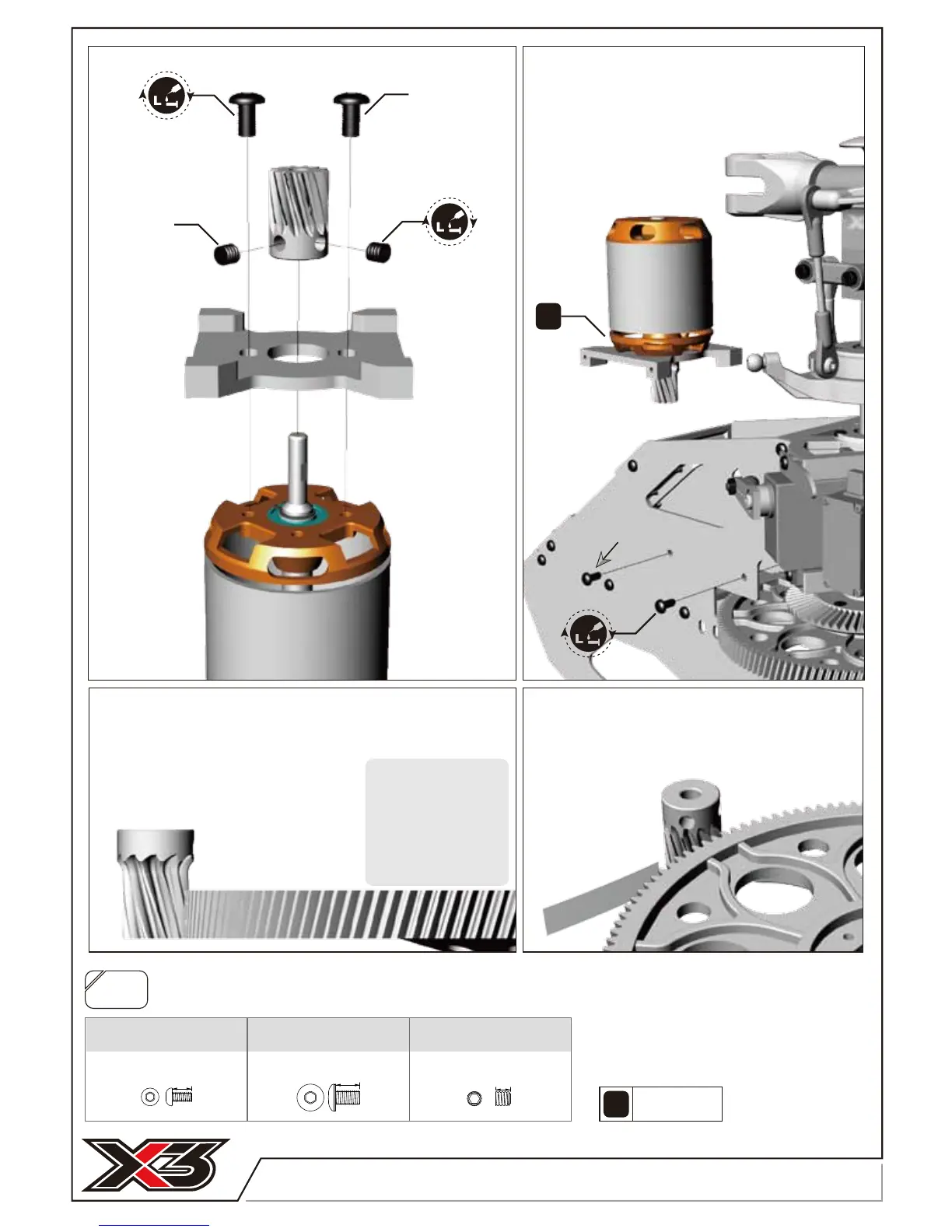

Motor assembly
馬達組裝
