GAUI X7 - Tail Fins Assembly

21
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
支撐桿組裝
水平翼座組裝
M3x14__________
2
M3x27__________
2
M3x27
M3x14
M3x10__________
2
M3x8___________
1
M3x6___________
4
M3x6
M3x10
M3x6
M3x8
螺絲均需上止滑劑
請調整好P.19齒輪間隙後並確認垂直尾翼與
機身同垂直再將尾管定位螺絲M3x8鎖入，
並鎖緊P.7 M3x20螺絲。
All Screws should
be applied with thread lock.
水平尾翼
水平翼固定座
Tail Support Clamp
支撐桿座

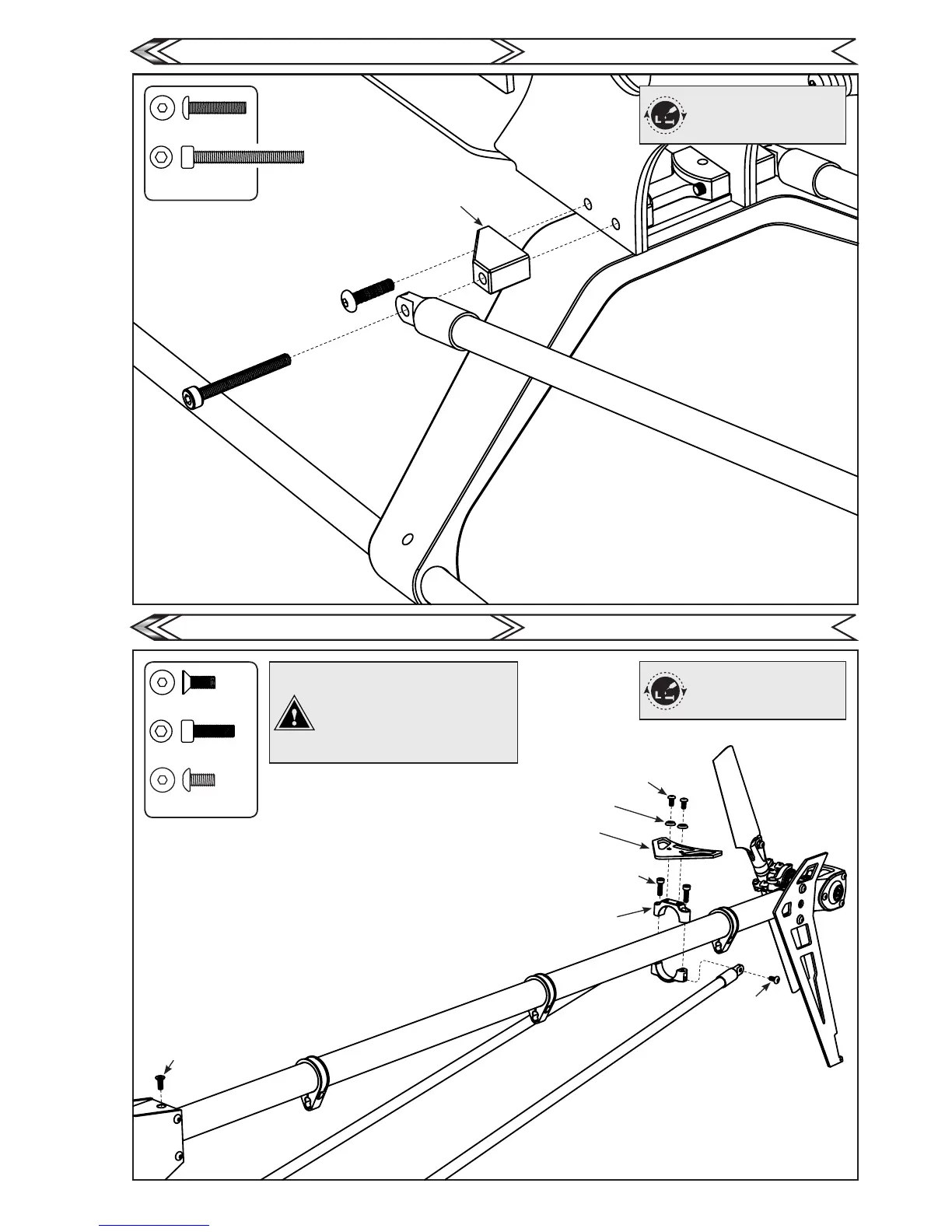

Tail Boom Support Assembly
Tail Fins Assembly
After adjusting the gear mesh as illustrated
in P.19, conrm the vertical stabilizer is
perpendicular to the main fuselage,
then tighten the M3x8 xing screw and
M3x20 screws illustrated in P.7.
Boom support mounting block
Tail n
螺絲均需上止滑劑
All Screws should
be applied with thread lock.
螺絲墊片
Countersunk Washer
