GAUI X7 - Gear Ratio Comparison Sheet; Battery Assembly

31
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
齒輪比配置表
電池組立 -1
1.使用440KV馬達與44.4V電池得到馬達轉速為:19536rpm
2.使用500KV馬達與44.4V電池得到馬達轉速為:22200rpm
電池伏特 × 馬達 KV = 馬達轉速
主齒盤齒數 ÷ 馬達齒數 = 主旋翼齒輪比
馬達轉速 ÷ 主旋翼齒輪比 = 主旋翼轉速
尾傳動主齒盤 ÷ 尾前傳動齒輪 = 尾旋翼齒輪比
尾旋翼齒輪比 × 主旋翼轉速 = 尾旋翼轉速
計算公式Formula for Calculations
請注意: 當主旋翼轉速低於2300rpm 時，建議使用105mm尾旋翼。
當主旋翼轉速高於2300rpm 時，建議使用95mm尾旋翼
Main Rotor Gear Ratio Tail Rotor Gear Ratio
主旋翼齒輪比 尾旋翼齒輪比
Main Gea Motor Pinion Gear Main Rotor Gear Ratio Tail Driven Gear Tail Bevel Gear Tail Rotor Gear Ratio
主齒盤齒數 馬達齒數 齒輪比 上傘齒盤 尾前傳動傘齒 齒輪比
100 ÷
10
=
10 66 ÷ 14 = 4.71
11 9.09
12 8.33
1.使用魔鬼氈將電池黏附於電池板上，並確認黏合後位置如。
2.再將束帶束緊電池與電池板。
魔鬼氈(公.母)
電池板
電池

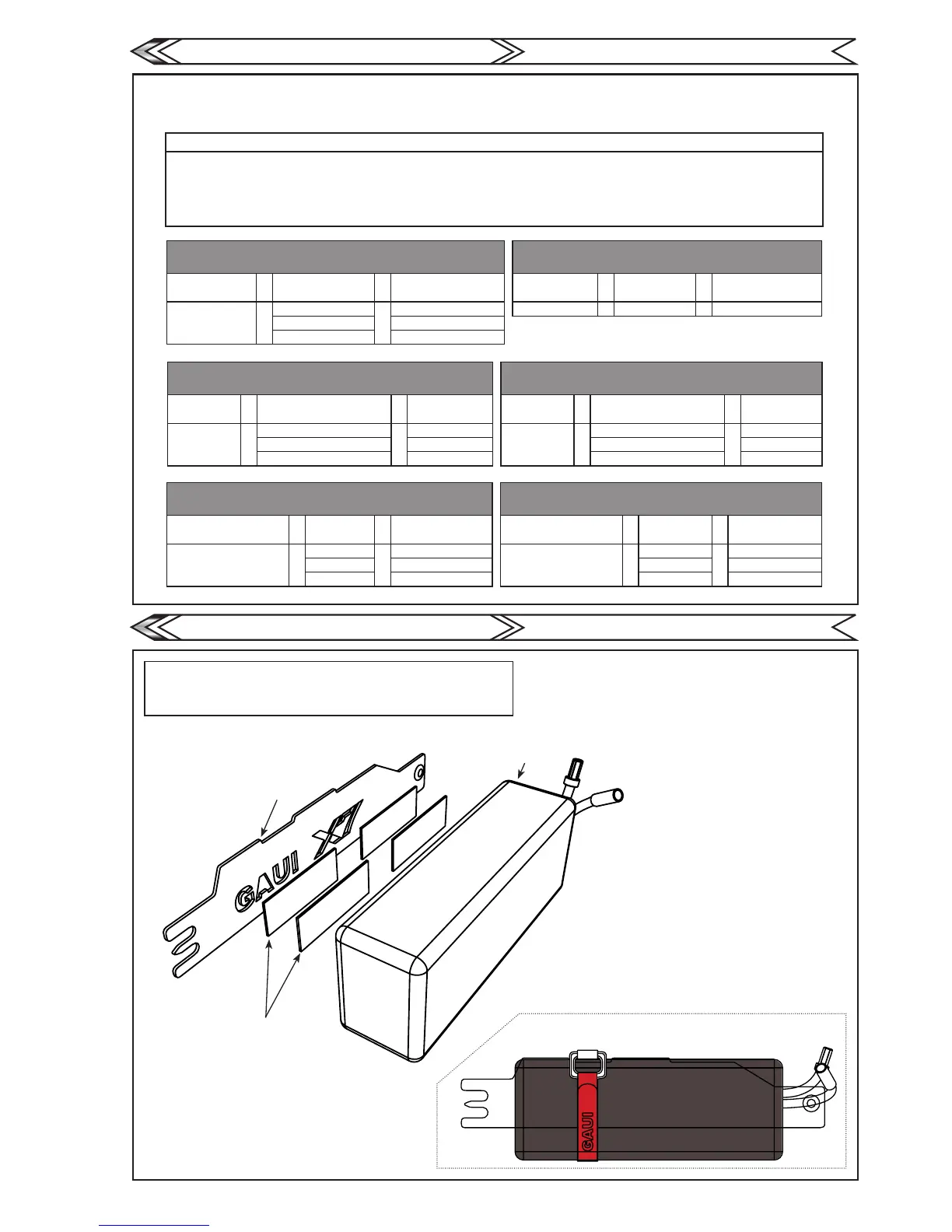

Gear Ratio Comparison Sheet
Battery Assembly-1
1. Use hook and loop strap for xing the battery on the battery tray as illustrated.
2. Fasten with a hook and loop tape on the battery.
Battery tray
Hook and loop tape (hooked, fuzzy)
Battery
1. When using 44.4V batteries and 440KV motor, motor RPM is 19536.
2. When using 44.4V batteries and 500KV motor, motor RPM is 22200.
Battery Voltage × Motor = Motor RPM
Main Gea ÷ Motor Pinion Gear = Main Rotor Gear Ratio
Motor RPM ÷ Main Rotor Gear Ratio = Head Speed
Tail Driven Gear ÷ Tail Bevel Gear = Tail Rotor Gear Ratio
Tail Rotor Gear Ratio × Head Speed = Tail Rotor Speed
Notice: When head speed is below 2300rpm, use 105mm tail blades.
When head speed is above 2300rpm, use 95mm tail blades.
1.400KVMotor & Head Speed 2.500KVMotor & Head Speed
1.440KV馬達 & 尾旋翼轉速 2.500KV馬達 & 尾旋翼轉速
Tail Rotor Gear Ratio Head Speed Tail Rotor Speed Tail Rotor Gear Ratio Head Speed Tail Rotor Speed
尾旋翼齒輪比 主旋翼轉速 尾旋翼轉速 尾旋翼齒輪比 主旋翼轉速 尾旋翼轉速
4.71 ×
1953.60 rpm
=
9209.83 rpm
4.71 ×
2220 rpm
=
10465.71 rpm
2148.96 rpm 10130.81 rom 2442 rpm 11512.29 rpm
2344.32 rpm 11051.79 rpm 2664 rpm 12558.86 rpm
1.400KVMotor & Head Speed 2.500KVMotor & Head Speed
1.440KV馬達 & 主旋翼轉速 2.500KV馬達 & 主旋翼轉速
RPM
Main Rotor Gear Ratio Head Speed
RPM
Main Rotor Gear Ratio Head Speed
主旋翼齒輪比 主旋翼轉速 主旋翼齒輪比 主旋翼轉速
19536 ÷
10
=
1953.60 rpm
22200 ÷
10
=
2220 rpm
9.09 2148.96 rpm 9.09 2442 rpm
8.33 2344.32 rpm 8.33 2664 rpm
