GAUI X7 - Landing Gear and Chassis Components; Landing Gear Assembly; Divider Frame Posts Assembly

13
GAUI
GAUI
TAI SHIH HOBBY CORPORATION
TAI SHIH HOBBY CORPORATION
M3x5___________
4
M3x14__________
4
M3x14
M3x14
M3x5
M3x5
M3x5
M3x5
M3x20
M3x20
M3x20
支撐架
腳架固定座
隔板鋁柱(14.2mm)
減震墊
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
將腳架固定座置入機身並鎖上M3x14螺絲。
M3x20__________
4
支撐架組裝
隔板鋁柱組裝

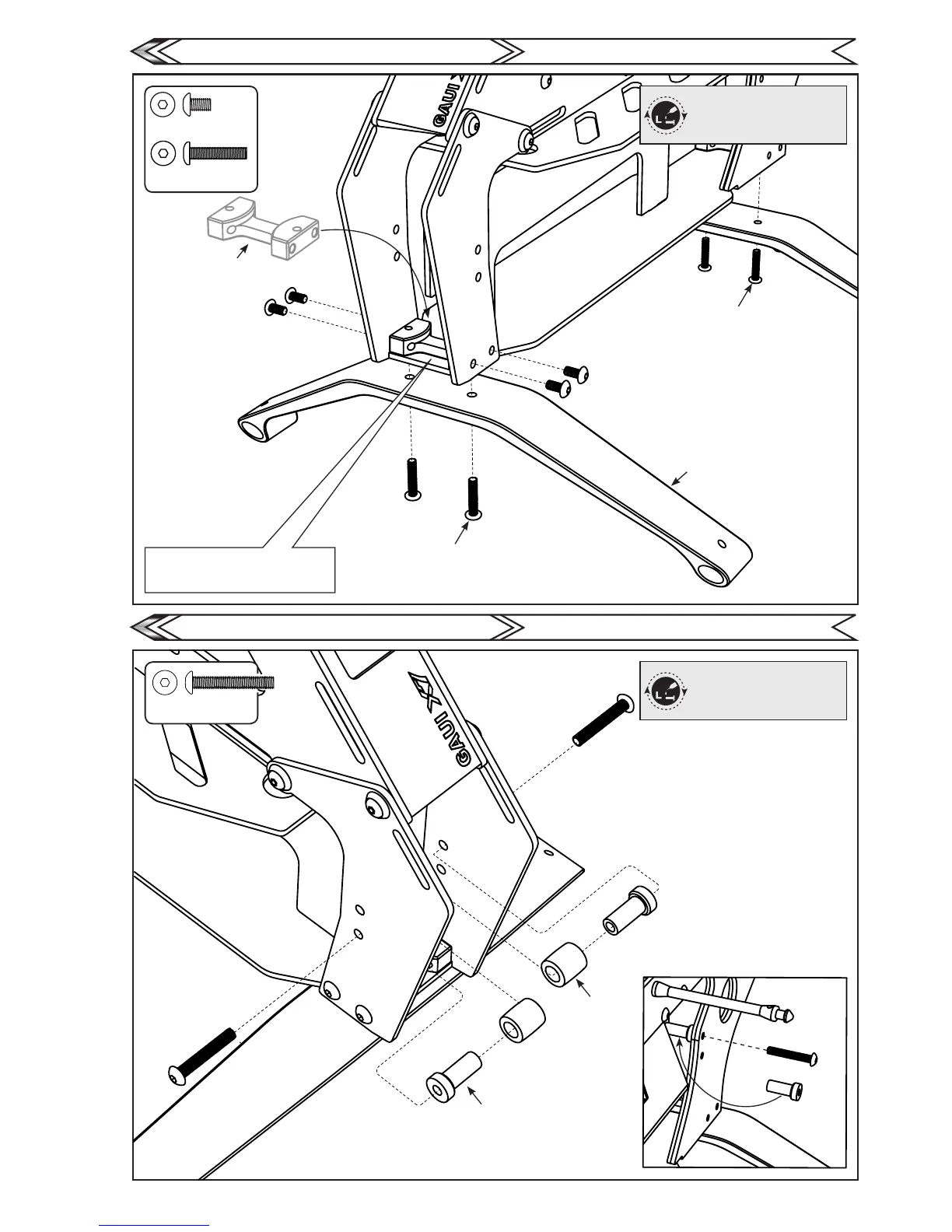

Landing Gear Assembly
Divider Frame Posts Assembly
Landing gear mount
Landing gear
Damper
Divider frame post(14.2mm)
Install the landing gear mount inside the
main frame and x the M3x14 screws.
