GAUI X7 - CF Bottom Frame Assembly

12
GAUI
TAI SHIH HOBBY CORPORATION
GAUI
TAI SHIH HOBBY CORPORATION
M3x12__________
1
M3x12
M3x5___________
1
M3x8___________
2
M3x8
M3x8
M3x5
前腳板
中隔板
底板
電池固定柱
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
將中隔板崁入固定板與底板。
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.

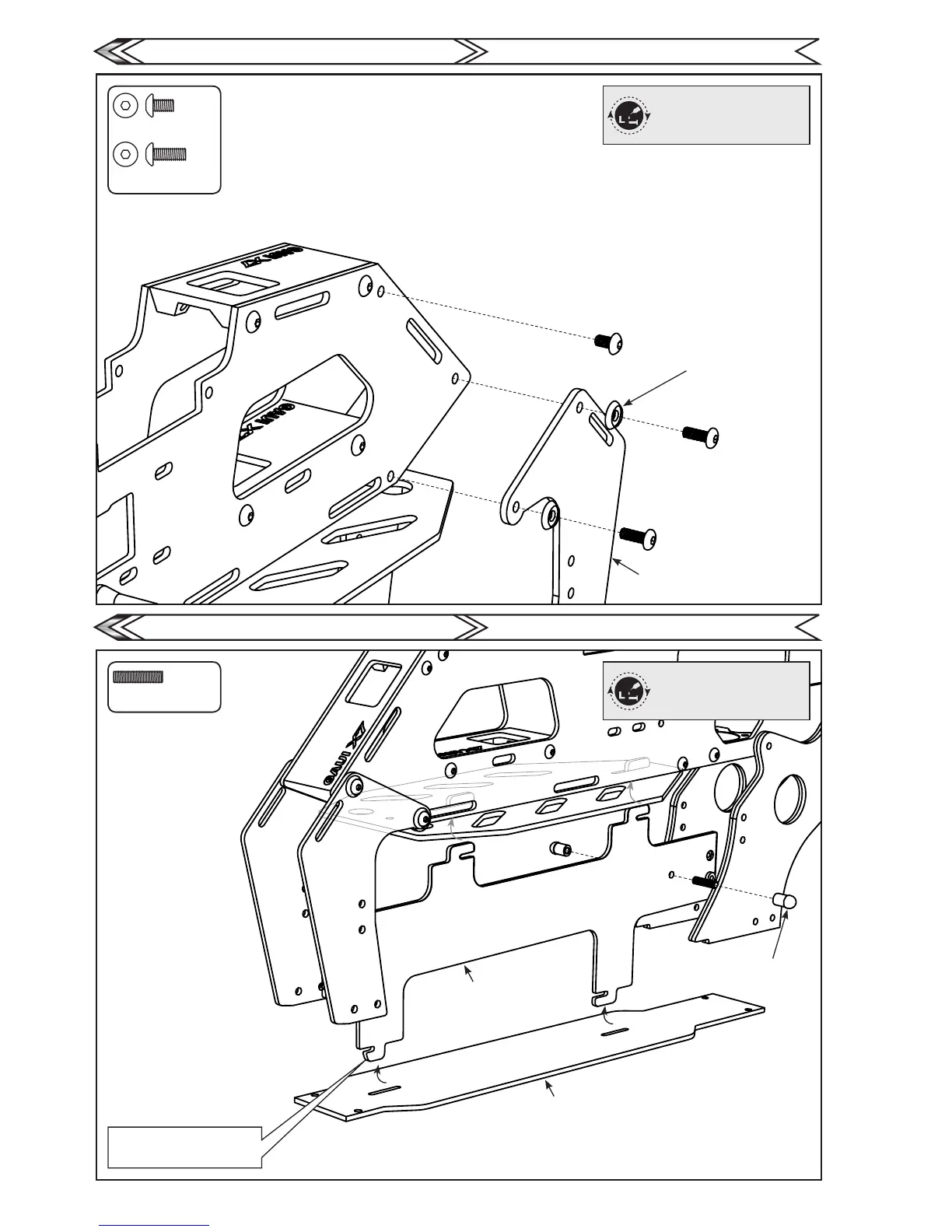

機體側板組裝(右)- 6
機體底板組裝
Main Frame Assembly (Right)-6
CF Bottom Frame Assembly
Front brace set
Frame middle divider
Bottom frame
Battery post
Insert the middle divider into the
anchor frame and bottom frame.
螺絲墊片
Countersunk Washer
