M3x5
組裝(艙罩支柱A型)時可使用直徑2以下的圓棒插入
孔內並旋緊艙罩支柱。
M3x10
M3x10
M3x10
M3x12
M3x5
M3x5
M3x5
M3x5
M3x5___________
1
M3x5___________
4
M3x12__________
1
M3x10__________
2
螺絲均需上止滑劑
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
All Screws on side plates should
be applied with thread lock.
後腳板組

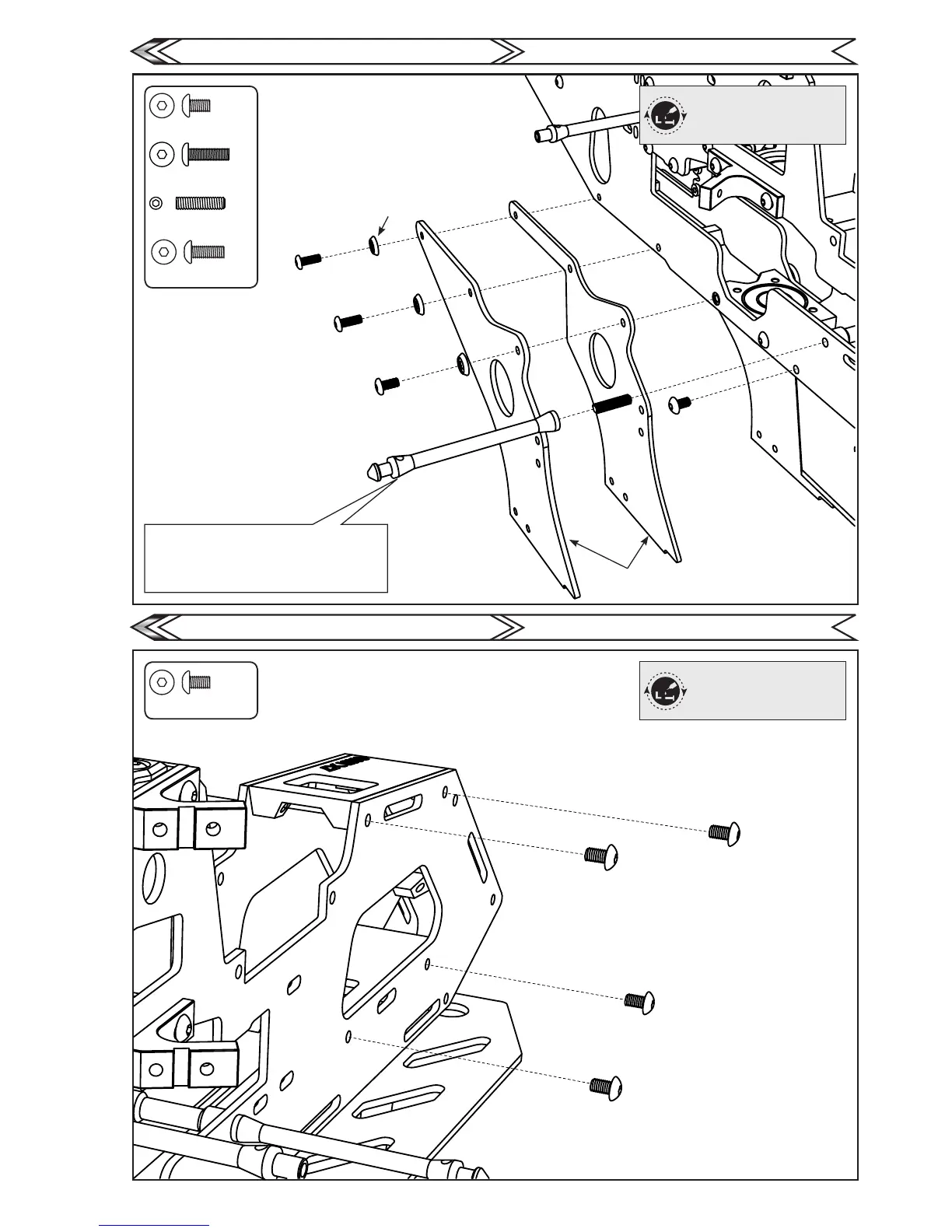

機體側板組裝(右)-4
機體側板組裝(右)-5
M3x8___________
1
Main Frame Assembly (Right)-4
Main Frame Assembly (Right)-5
When assembling the canopy posts, x the M3x12
screw inside the post, use a stick as tool to tighten
the canopy posts.
Back brace set
螺絲墊片
Countersunk Washer
To Next Page
