螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
M3x4___________
2
M3x5___________
2
M3x5
M3x5
M3x4
M3x4
M3x12
M3x5
M3x5
M3x5
M3x5
M3x4
M3x4
M3x4
M3x4___________
3
M3x5___________
4
M3x12__________
1
螺絲均需上止滑劑
All Screws on side plates should
be applied with thread lock.
組裝(艙罩支柱B型)時先將M3x12螺絲鎖入支柱內，
在使用直徑2以下的圓棒插入孔內並旋緊艙罩支柱。

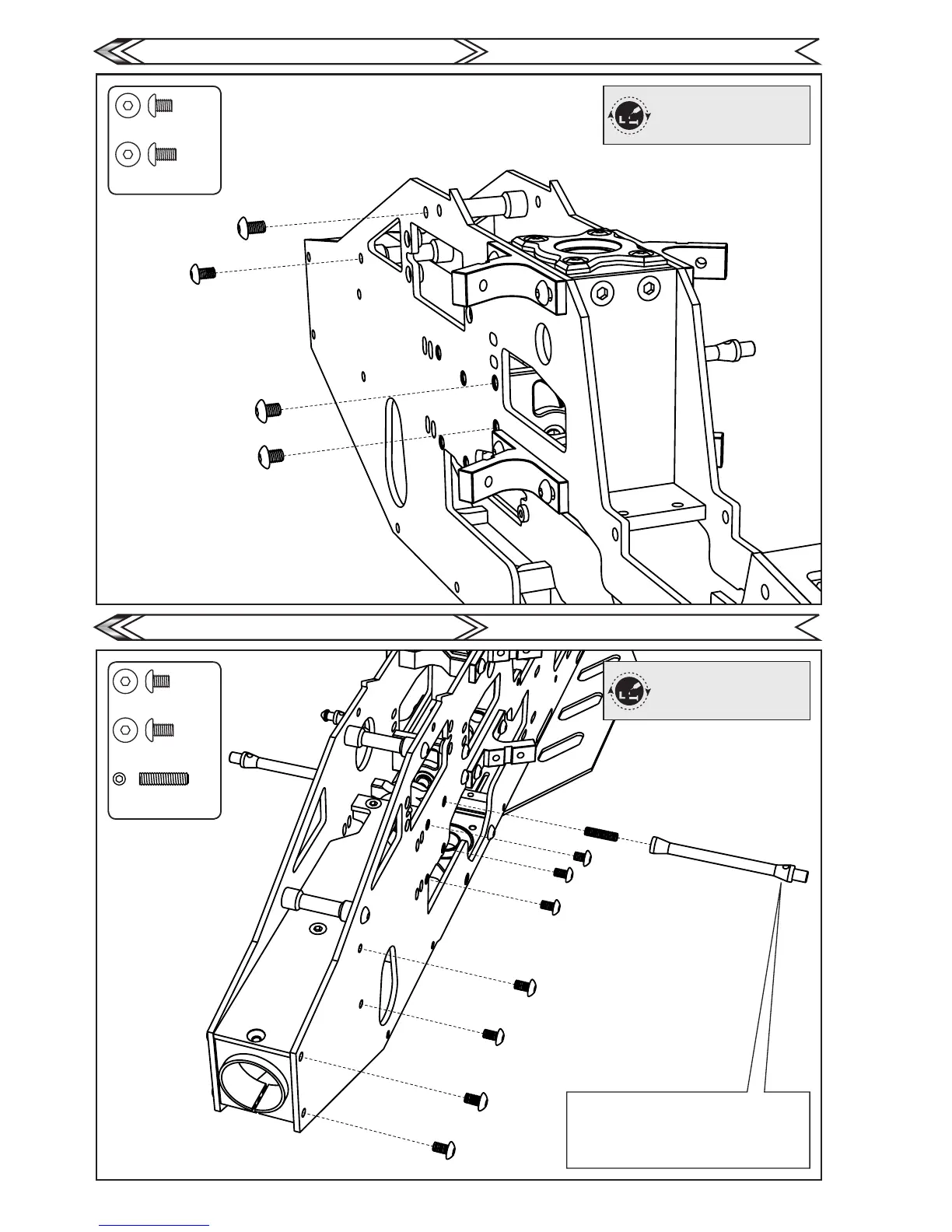

機體側板組裝(右)-2
機體側板組裝(右)-3
Main Frame Assembly (Right)-2
Main Frame Assembly (Right)-3
When assembling the canopy posts, x the M3x12
screw inside the post, use a stick as tool to tighten
the canopy posts.
