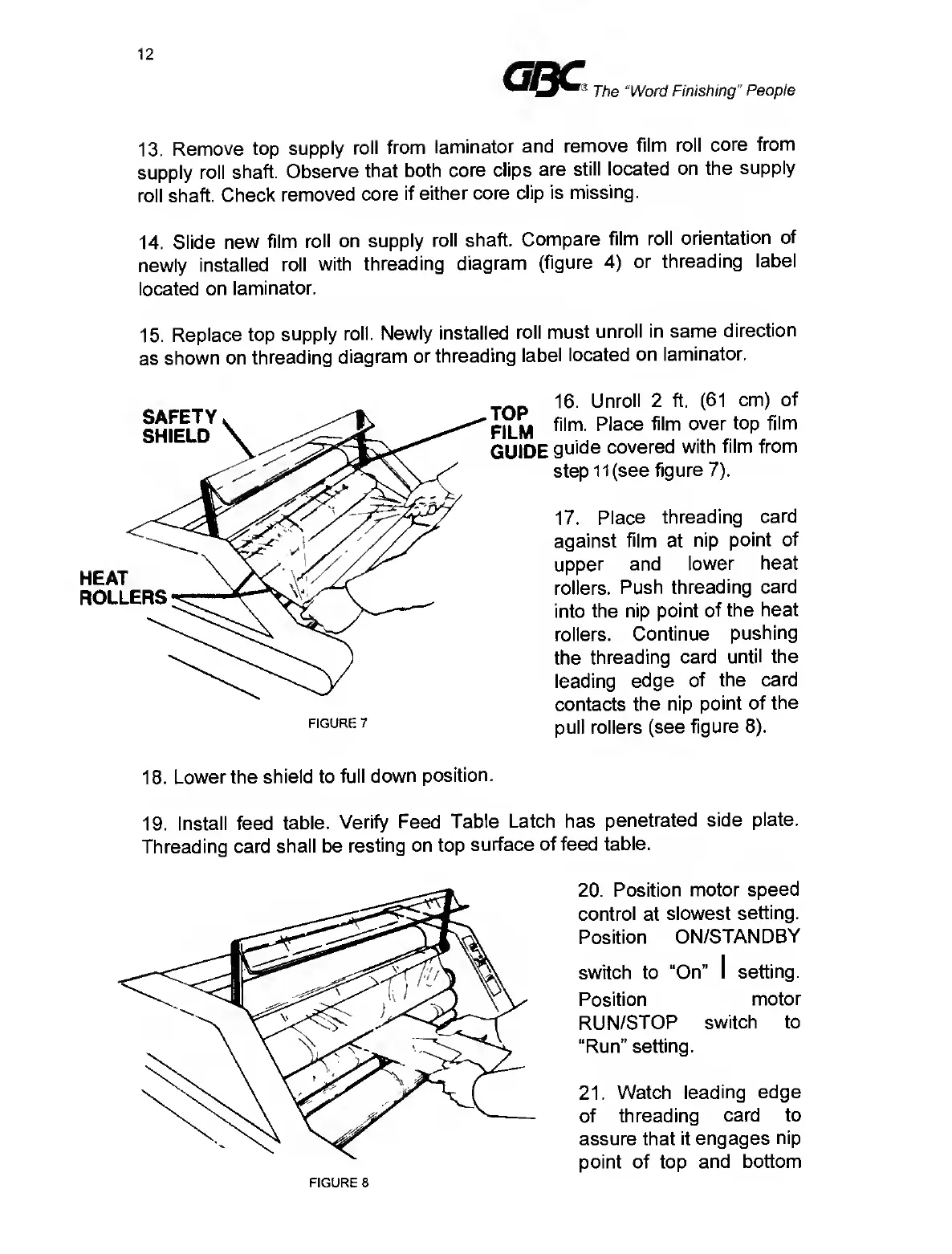

GBC GBC4250 - Page 12

The “Word Finishing’’ People
13. Remove top supply roll from laminator and remove film roll core from
supply roll shaft. Observe that both core clips are still located on the supply
roll shaft. Check removed core if either core clip is missing.
14. Slide new film roll on supply roll shaft. Compare film roll orientation of
newly installed roll with threading diagram (figure 4) or threading label
located on laminator.
15. Replace top supply roll. Newly installed roll must unroll in same direction
as shown on threading diagram or threading label located on laminator.
16. Unroll 2 ft. (61 cm) of
FILM
GUIDE guide covered with film from
step 11 (see figure 7).
17. Place threading card
against film at nip point of
upper and lower heat
rollers. Push threading card
into the nip point of the heat
rollers. Continue pushing
the threading card until the
leading edge of the card
contacts the nip point of the
FIGURE 7
pull rollers (see figure 8).
18. L ower the shield to full down position.
19. I nstall feed table. Verify Feed Table Latch has penetrated side plate.
Threading card shall be resting on top surface of feed table.
20. Position motor speed
control at slowest setting.
Position ON/STANDBY
switch to “On” I setting.
Position motor
RUN/STOP switch to
“Run” setting.
21. Watch leading edge
of threading card to
assure that it engages nip
point of top and bottom
FIGURE 8
