4. D o not allow remaining film to pass through the laminator if there is any
exposed liquefied or tacky adhesive. Liquefied or tacky adhesive will
deposit on heat rolls if the following procedure is not observed.
Reinstall the feed table. Place overlapping sheets of clean, white paper
across the full width of the feed table. Lower the shield. Position the
ON/STANDBY switch in the “On”, denoted I. position. Set the Speed
Control at “Slow”. Position the RUN/STOP switch at the “Run” position.
Slide all sheets of paper into the heat rollers’ nip point until they are
grasped by the laminate and passed completely through the laminator with
the remaining film. Be certain that there is no exposed adhesive
contacting the rollers and that the paper and film completely exit the
laminator.
5. S et the ON/STANDBY switch in the “Standby”
O position.
6. L ift shield to full upright position.

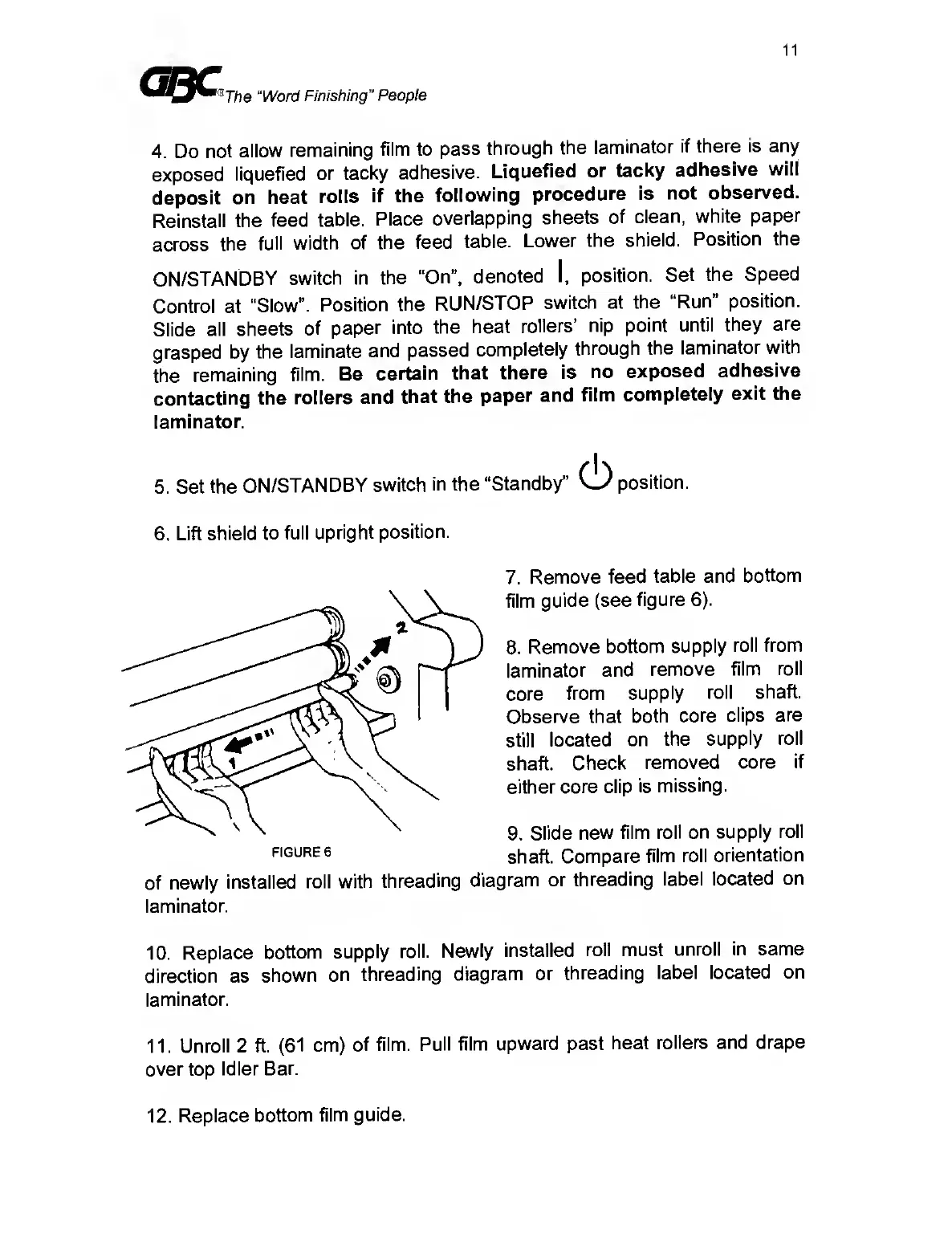

7. Remove feed table and bottom
film guide (see figure 6).
8. Remove bottom supply roll from
laminator and remove film roll
core from supply roll shaft.
Observe that both core clips are
still located on the supply roll
shaft. Check removed core if
either core clip is missing.
9. Slide new film roll on supply roll
shaft. Compare film roll orientation
of newly installed roll with threading diagram or threading label located on
laminator.
10. Replace bottom supply roll. Newly installed roll must unroll in same
direction as shown on threading diagram or threading label located on
laminator.
11. Unroll 2 ft. (61 cm) of film. Pull film upward past heat rollers and drape
over top Idler Bar.
12. R eplace bottom film guide.
