E. “ WAIT” LAMP: Flashes when the temperature of the heat rollers is
insufficient for the selected speed setting. The occurrence of a flashing wait
light will be signified by an audible alarm (beep).
F. FEED (SUPPORT) TABLE:
The Feed Table is used to
position items for lamination.
The laminator will operate
only with the Feed Table and
Feed Table Latch properly
installed.
G. SAFETY SHIELD: Prevents
entanglement, entrapment and
inadvertent contact with the
heat rollers. The laminator will
operate only when the Safety
Shield is located in the full down position. Power to the laminator is
removed when the Safety Shield Is lifted.
H. TABLE INTERLOCK LATCH- Used to lock Feed Table into position and
activate an interlock. The interlock latch is located at the left underside of the
feed table. The table cannot be removed without retracting the latch to the
right while lifting the table upwards and away from the laminator. The
laminator will not operate when the feed table is removed and/or the
Interlock latch is retracted.
I. FEED GUIDE- The Feed Guide permits aligning the item(s) to be
laminated. Reposition the adjustable feed guide by loosening the knob on
top of the guide. Slide the Feed Guide to the desired position and tighten the
knob to secure the Feed Guide in place. The Feed Guide is used to keep
longer items straight. The Feed Guide may also be used to feed small items
side by side by positioning the feed guide towards the center of the feed
table and placing the smaller items against each side of the Feed Guide as
they are being introduced into the nip point of the heat rollers.
J. HEAT ROLLERS- Silicone rubber coated aluminum tubes. Used to heat
the laminating film and compress the heated film to the items being
laminated. Heat is provided by an internal heating element. The Safety
Shield causes the rollers to separate for loading new film or close once the
laminating film is loaded.
K. IDLER BAR-One provided for each film supply roll. Used to direct the film
to the Heat Rollers. Bottom Idler Bar is removable to ease film loading.

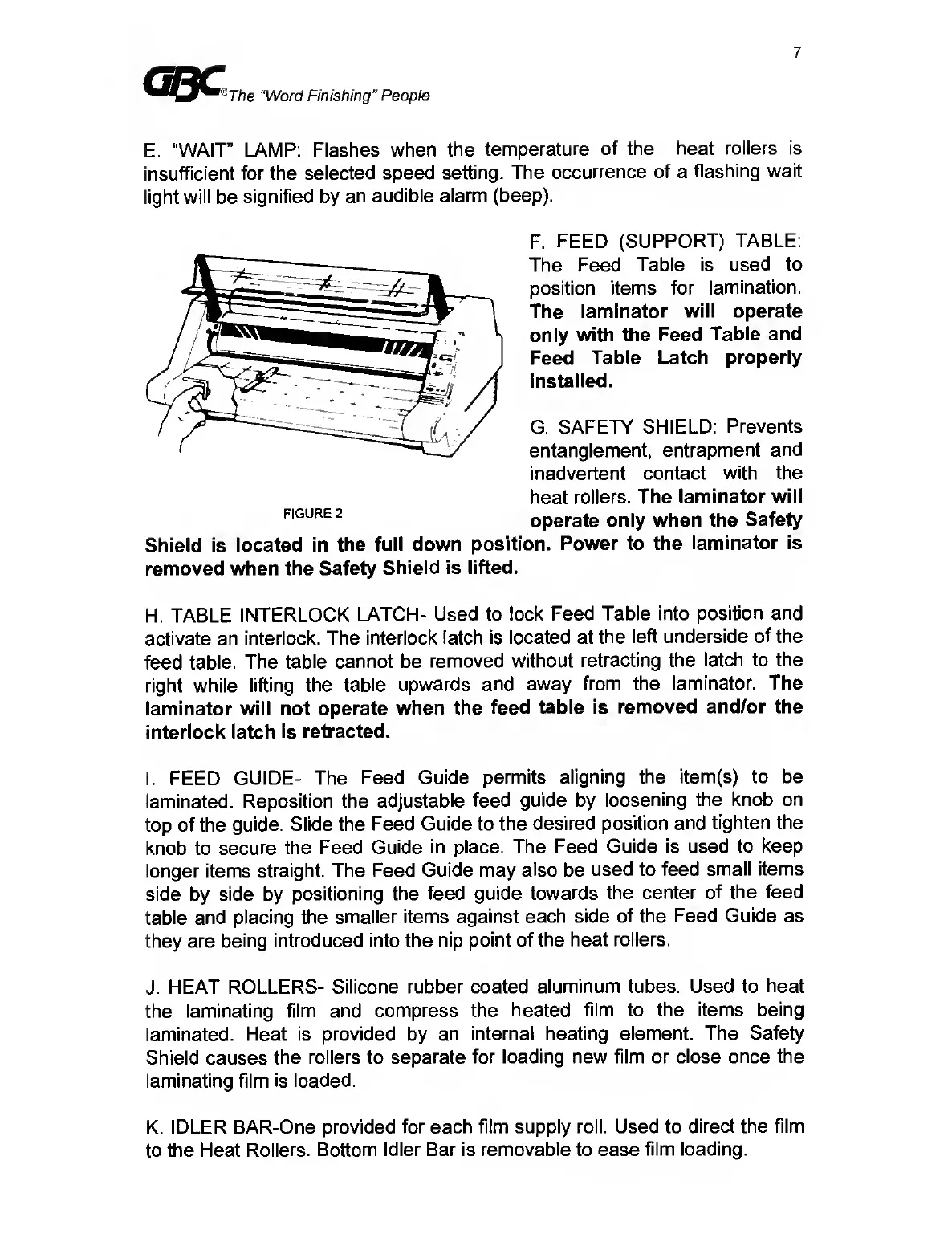

FIGURE 2
