CHAPTER 1: COMMUNICATIONS GUIDE FIELDBUS INTERFACE

MM300 MOTOR MANAGEMENT SYSTEM – COMMUNICATIONS GUIDE 93

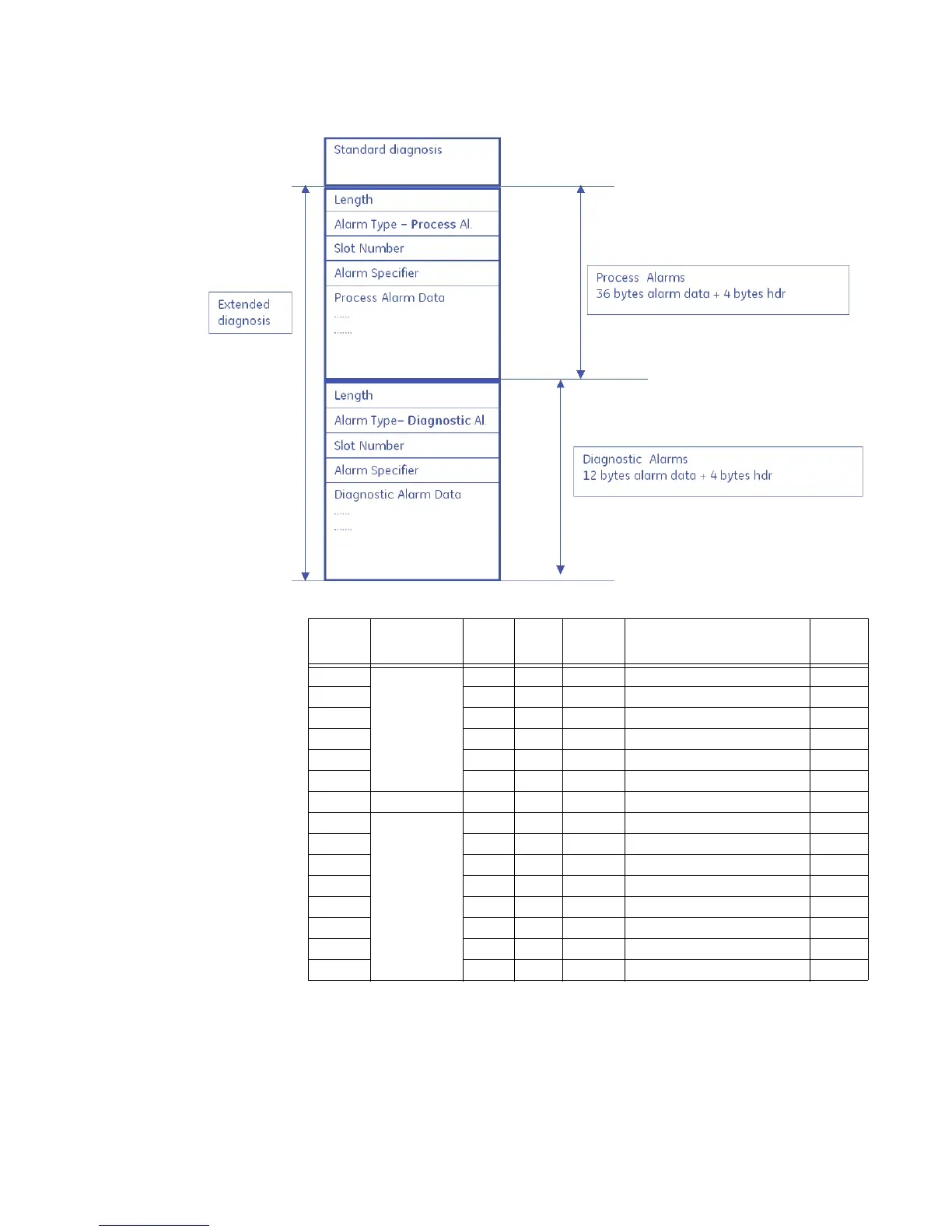

Table 16: DPV1 diagnostic alarms

Byte Bit GSE Bit # Ext.

Diag

Byte

Standard

Diagnosis

0 Station Status 1

1 Station Status 2

2 Station Status 3

3 Master Address

4 Man Id

5 Man Id

6 Length 0

Alarm Type 7 0 0 Alarm Type - Process Alarm 1

7 1 1 1

7 2 2 1

7 3 3 1

7 4 4 1

7 5 5 1

7 6 6 1

7 7 7 1
