GE Profile 22 - Location, Dimensions, Clearances, and Controls

49
SafetyInstructions OperatingInstructions InstallationInstructions TroubleshootingTips ConsumerSupport

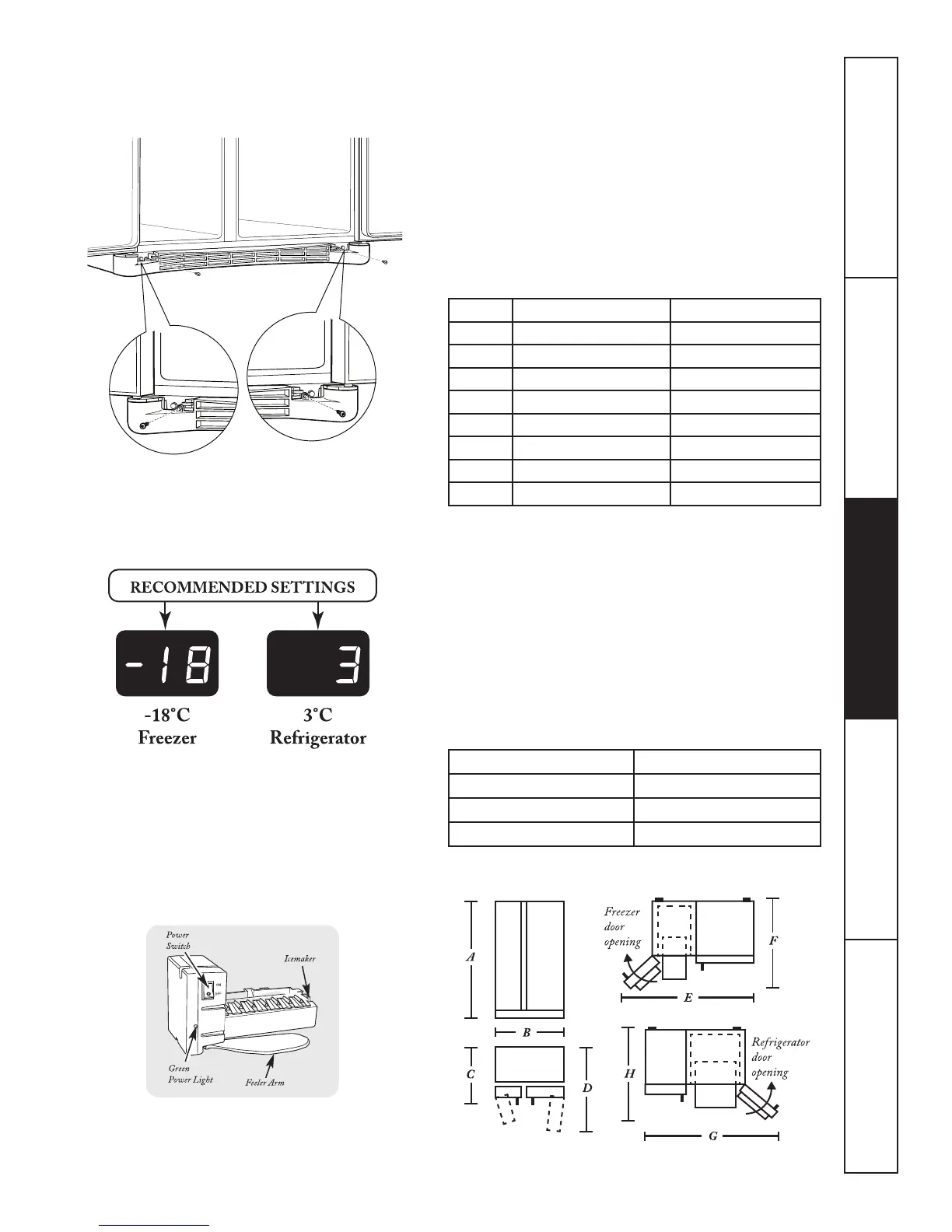

REPLACETHEBASEGRILLE
Replace the grille by installing the two phillips
headscrew.
SETTHECONTROLS
Set the controls to the recommended setting.
STARTTHEICEMAKER
Set the ice maker power switch to the I (on) position. The
ice maker will not begin to operate until it reaches its
operating temperature of -9°C (15°F) or below. It will then
begin operation automatically. It will take 2-3 days to fill
the ice bin.
Note:In lower water pressure conditions, the water valve
may turn on up to 3 times to deliver enough water to the
ice maker.
REFRIGERATORLOCATION
• Do not install the refrigerator where the temperature
will go below 16°C (60°F) because it will not run often
enough to maintain proper temperatures.
• Do not install the refrigerator where the temperature
will go above 37°C (100°F) because it will not
perform properly.
• Install it on a oor strong enough to support it fully
loaded.
DIMENSIONS(mm)
22’ CAPACITY*** 23’ CAPACITY***
A* 1733 1733
B 908 908
C** 786 738
D 1170 1158
E 1260 1243
F 991 969
G 1371 1358
H 1054 919
* The height does not include hinges.
** The depth includes handles.
*** Values can change according to the door style, only
the maximum values are shown.
CLEARANCES
Allow the following clearances for easy installation,
proper air circulation and plumbing and electrical
connections:
22’ AND 23’ CAPACITY
SIDES 4 mm
TOP 25 mm
BACK 13 mm
