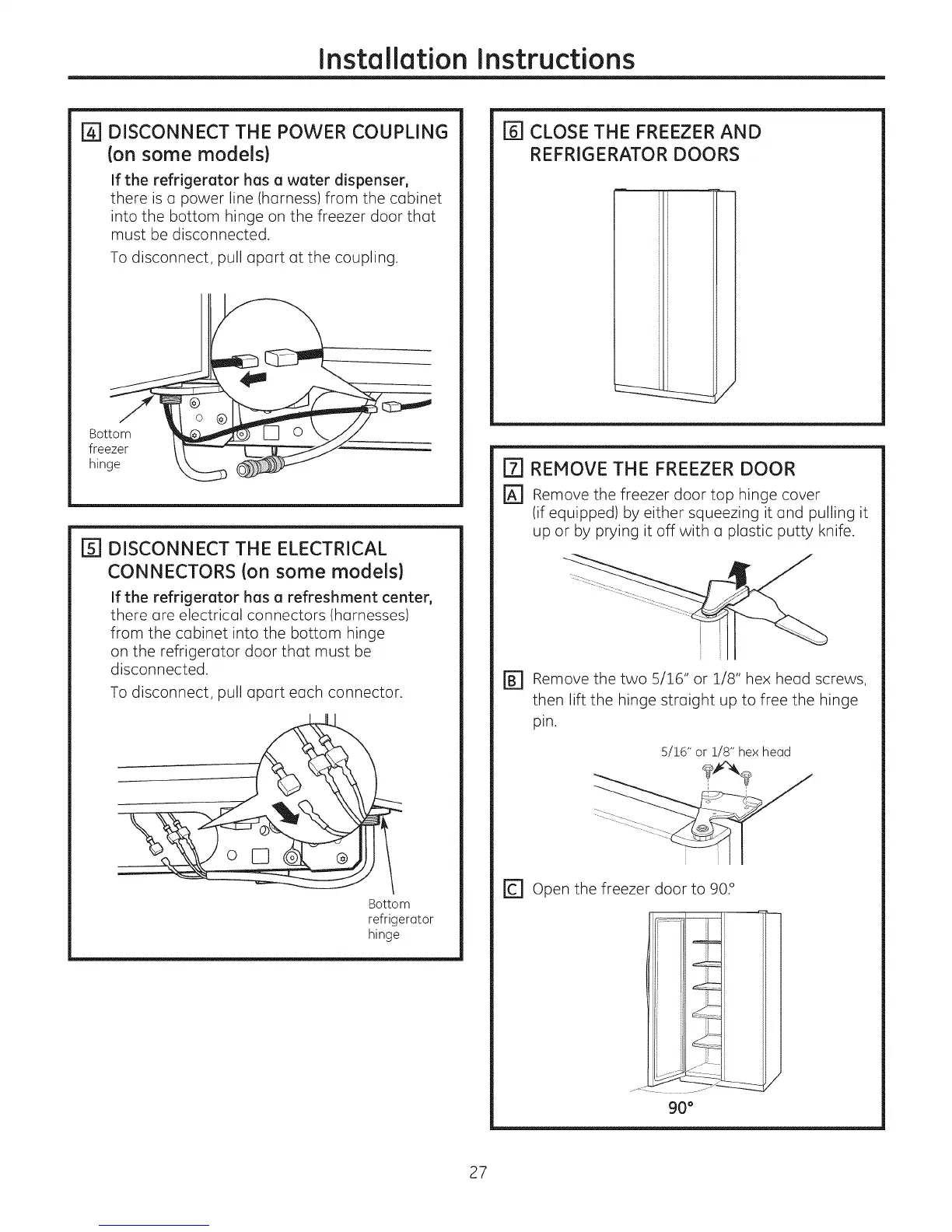

Installation Instructions
[_] DISCONNECT THE POWER COUPLING
(on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the cabinet
into the bottom hinge on the freezer door that
must be disconnected.
To disconnect, pull apart at the coupling.
Bottom
freezer
hing_z _
% DISCONNECT THE ELECTRICAL
CONNECTORS (on some models)
If the refrigerator has a refreshment center,
there are electrical connectors (harnesses)
from the cabinet into the bottom hinge
on the refrigerator door that must be
disconnected.
To disconnect, pull apart each connector.
Bottom
refrigerator
hinge
[_] CLOSE THE FREEZER AND
REFRIGERATOR DOORS
[] REMOVE THE FREEZER DOOR
r_ Remove the freezer door top hinge cover
(if equipped) by either squeezing it and pulling it
up or by prying it off with a plastic putty knife.
FB1 Remove the two 5/16" or 1/8" hex head screws,
then lift the hinge straight up to free the hinge
pin.
5/16" or 1/8" hex head
rcl open the freezer
doorto 90?
I
I
t
i
jl .j ....
90':'
i
J
J
J
i
J
J
i
J
J
i
J
i
i
J
J
i
J
27
