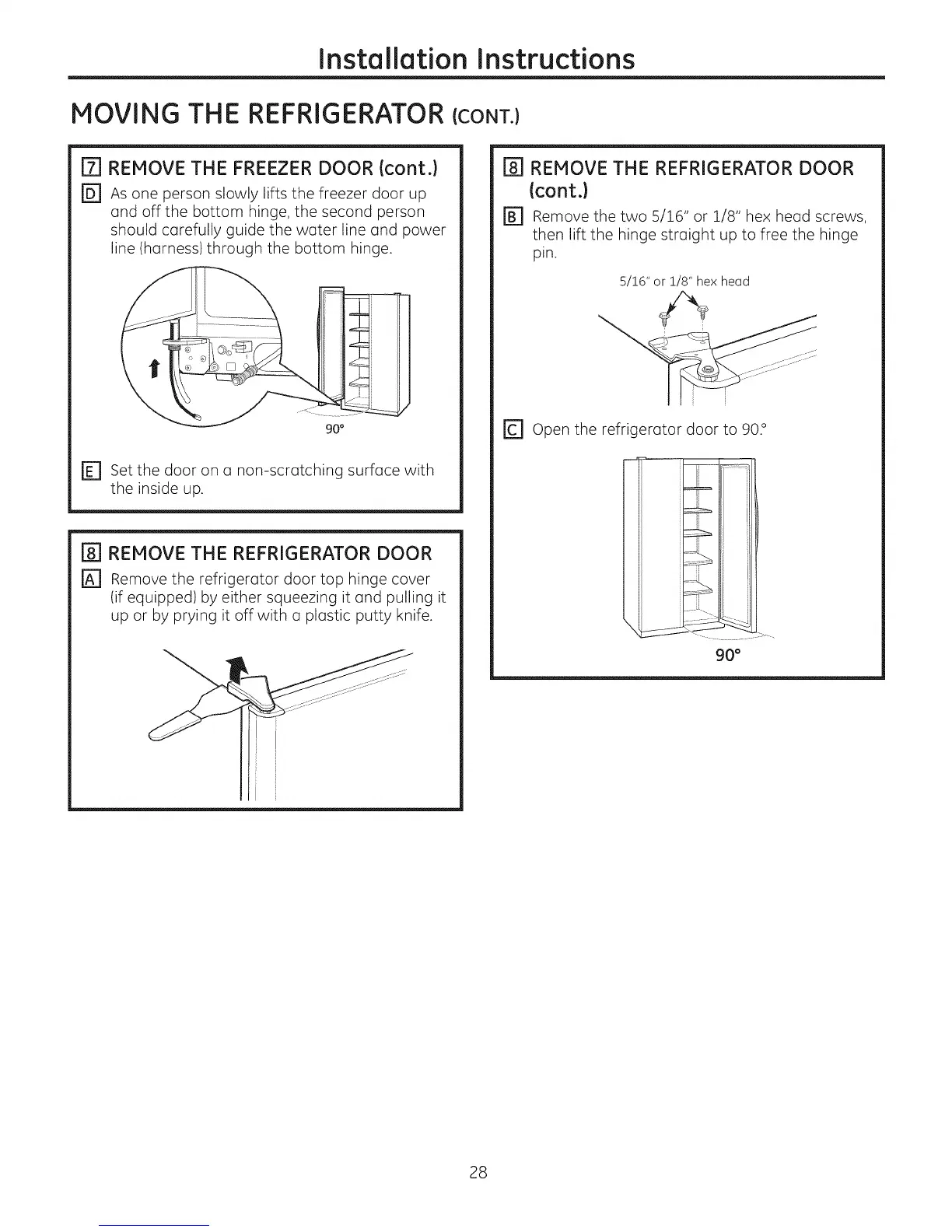

Installation Instructions
MOVING THE REFRIGERATOR (CONT.}
ITI REMOVE THE FREEZER DOOR (cont.)
r_ As one person slowly lifts the freezer door up
Gnd off the bottom hinge, the second person
should corefully guide the woter line and power
line (harness) through the bottom hinge.
r_ set the door on a non-scratching surface with
the inside up.
[] REMOVE THE REFRIGERATOR DOOR
r_ Remove the refrigerotor door top hinge cover
(if equipped) by either squeezing it and pulling it
up or by prying it off with a plastic putty knife.
REMOVE THE REFRIGERATOR DOOR
(cont.}
r_ Remove the two 5/16" or 1/8" hex head screws,
then lift the hinge straight up to free the hinge
pin.
5/16" or 1/8" hex head
q
r_ open the refrigerator door to 90 °
ii
i
....u....... i
90 °
28
