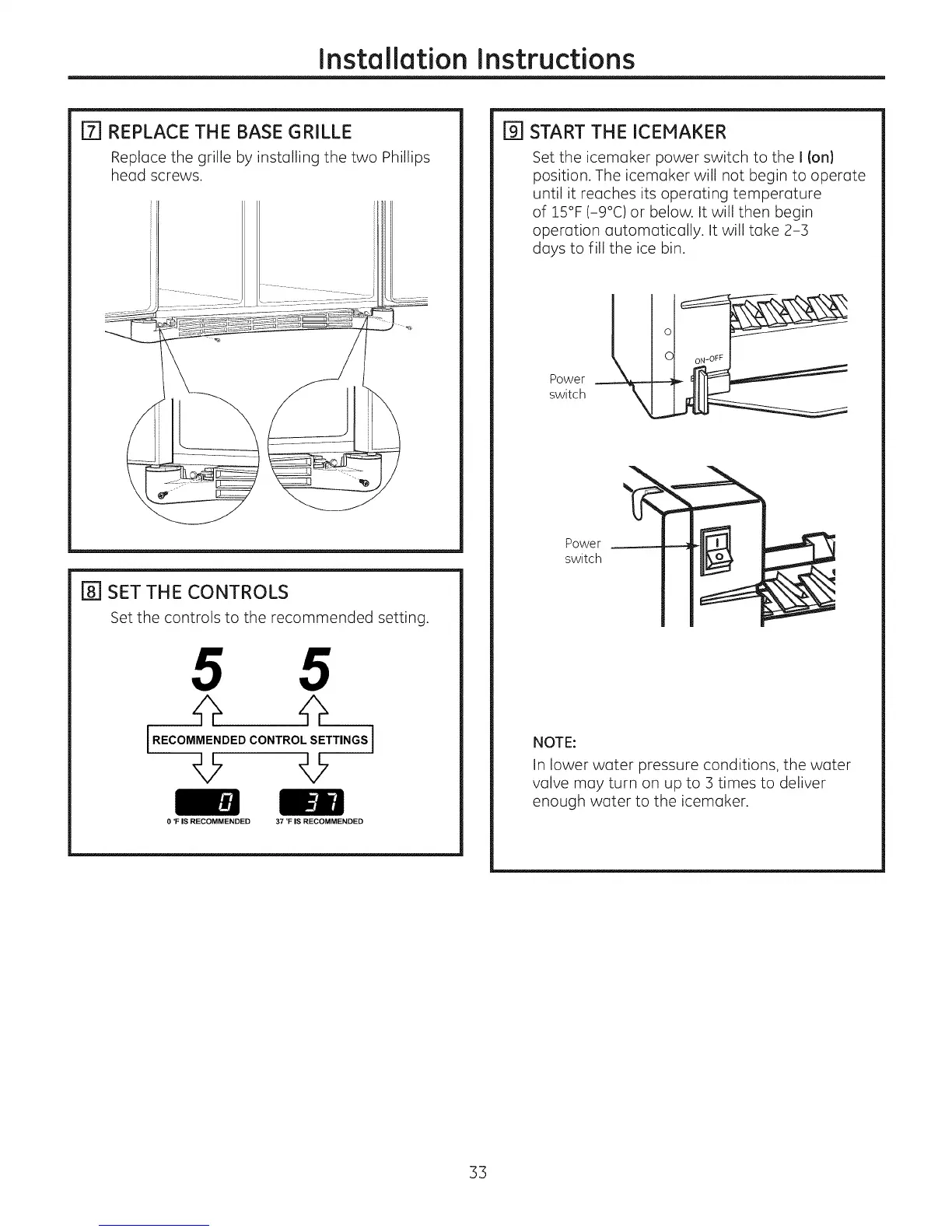

Installation Instructions
m REPLACE THE BASE GRILLE
Replace the grille by installing the two Phillips
head screws.
rs] SET THE CONTROLS
Set the controls to the recommended setting.
5 5
[R coE°CON,RO,SE,,,Nosl
0 °F IS RECOMMENDED 37 °F IS RECOMMENDED
r9] START THE ICEMAKER
Set the icemaker power switch to the I Ion)
position. The icemaker will not begin to operate
until it reaches its operating temperature
of 15°F (-9°C) or below. It will then begin
operation automatically. It will take 2-5
days to fill the ice bin.
Power _ o
switch
Power
switch
NOTE:
In lower water pressure conditions, the water
valve may turn on up to 3 times to deliver
enough water to the icemaker.
33
