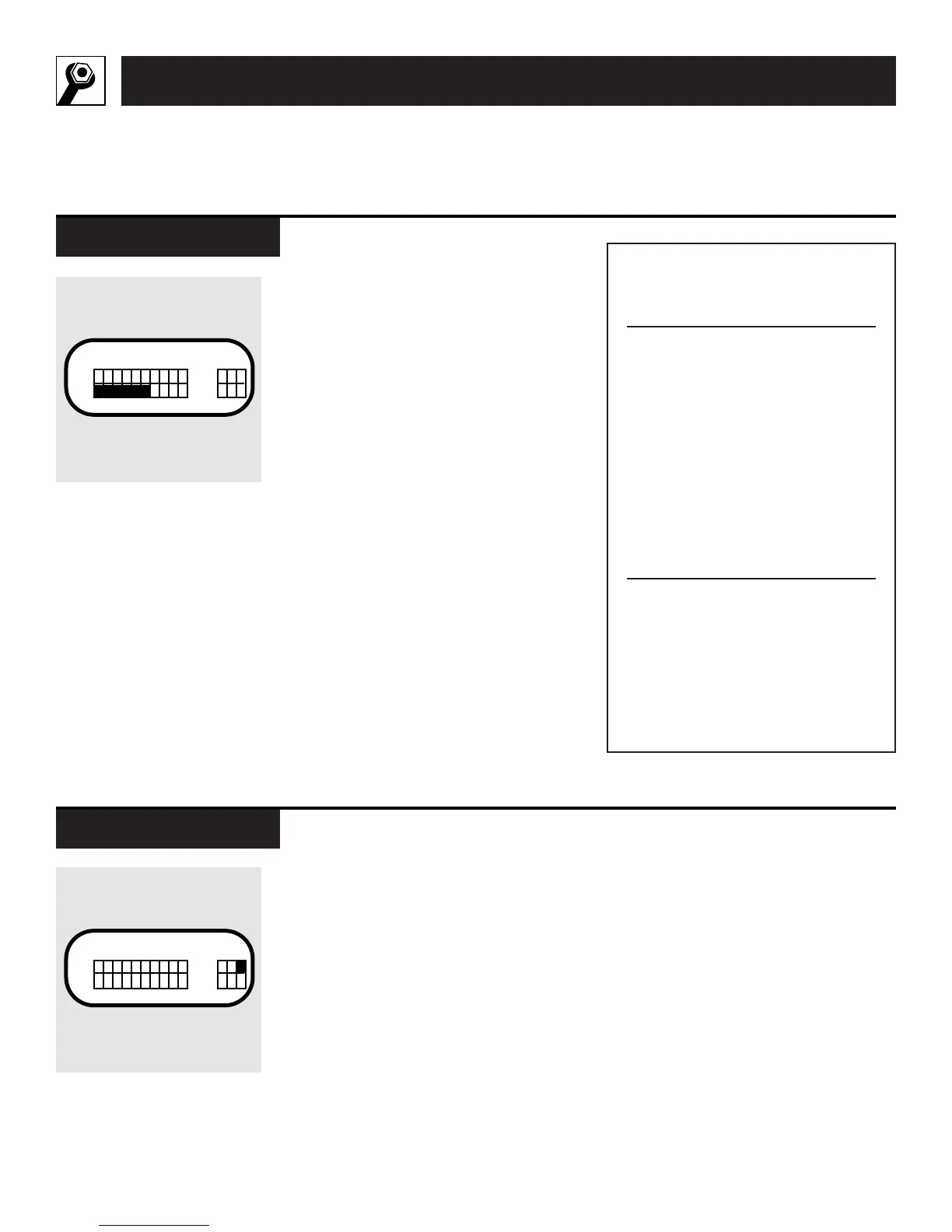

18
Installation Instructions
Temperature limiting can reduce
energy costs by limiting the lowest
temperature that can be set on
cooling and the highest tempera-
ture that can be set on heating.
Temperature limiting is controlled
by setting the first six auxiliary
switches.
The first three are used to select
cooling range limits and the next
three are used to select heating
range limits.
Temperature Limiting
1 2 3 4 5 6
ON
OFF
ON
OFF
COOLING LIMITS
Limit Switch Temp Range
Up/On F.
NONE 62 to 85
1 64 to 85
1 & 2 67 to 85
2 69 to 85
2 & 3 71 to 85
1 & 2 & 3 73 to 85
1 & 3 75 to 85
3 77 to 85
HEATING LIMITS
Limit Switch Temp Range
Up/On F.
NONE 60 to 85
4 60 to 80
4 & 5 60 to 76
5 60 to 74
5 & 6 60 to 73
4 & 5 & 6 60 to 71
4 & 6 60 to 69
6 60 to 67
The Zoneline has a diagnosis
feature. When switch 13 is moved
to the
ON
(up) position, the unit
will go through an operations
check of all components which
takes about two minutes. This diag-
nostic tool is intended for use by a
qualified technician.
Diagnosis Switch
Auxiliary Controls
13
ON
OFF
ON
OFF
Auxiliary Controls
