Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting Description
12, 13 - +24V DC 24V DC supply
voltage. Maximum
output current is
200mA total for all
24V loads. Useable for
digital inputs and
external transducers.
18 E-01 [8] Start
Digital inputs.
19 E-02 [0] No
operation
32 E-05 [0] No
operation
33 E-06 [0] No
operation
27 E-03 [0] No
operation
Selectable for either
digital input or
output. Default setting
is input.
29 E-04 [14] JOG
20 - Common for digital
inputs and 0V
potential for 24V
supply.
Analog Inputs/Outputs
39 -
Common for analog
output
42 AN-50 Speed 0 -
High Limit
Programmable analog
output. The analog
signal is 0–20mA or
4–20mA at a
maximum of 500
Ω
50 - +10V DC 10V DC analog supply
voltage. 15mA
maximum commonly
used for potenti-
ometer or thermistor.
53 AN-1# Reference Analog input.
Selectable for voltage
or current. Switches
A53 and A54 select
mA or V.
54 AN-2# Feedback
55 -
Common for analog
input
Serial Communication
61 -
Integrated RC filter for
cable shield. ONLY for
connecting the shield
when experiencing
EMC problems.
68 (+) O-3# RS-485 Interface. A
control card switch is
provided for
termination resistance.
69 (-) O-3#
Terminal Description
Digital Inputs/Outputs
Terminal Parameter
Default
Setting Description
Relays
01, 02, 03 E-24 [0] [0] Alarm Form C relay output.
Usable for AC or DC
voltage and resistive
or inductive loads.
04, 05, 06 E-24 [1] [0] Running

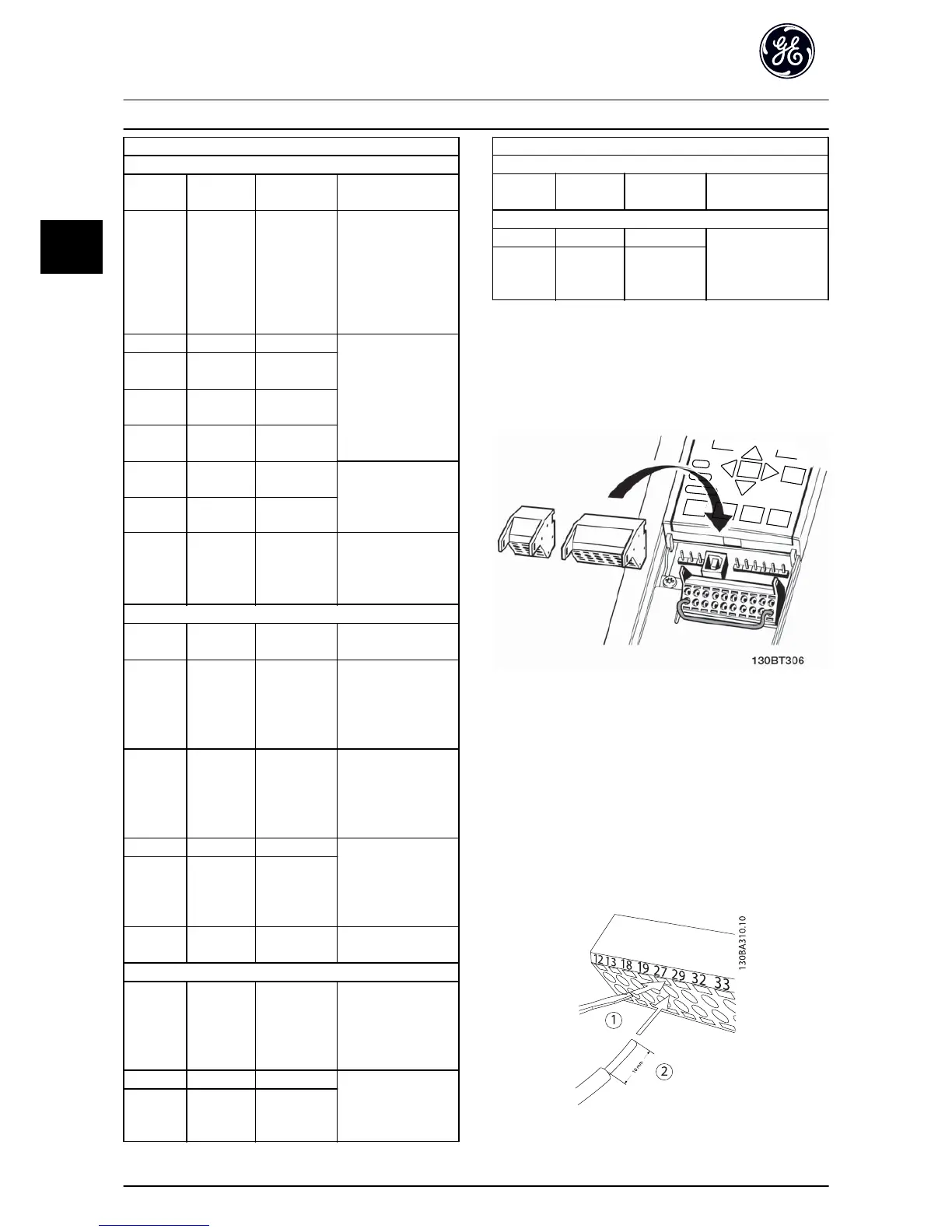

Table 3.2 Terminal Description
3.4.5.3 Wiring to Control Terminals
Control terminal connectors can be unplugged from the
drive for ease of installation, as shown in Illustration 3.12.
Illustration 3.12 Unplugging Control Terminals
1. Open the contact by inserting a small screwdriver
into the slot above or below the contact, as
shown in Illustration 3.13.
2. Insert the bared control wire into the contact.
3. Remove the screwdriver to fasten the control wire
into the contact.
4. Ensure the contact is firmly established and not
loose. Loose control wiring can be the source of
equipment faults or less than optimal operation.
Illustration 3.13 Connecting Control Wiring
Installation AF-600 FP Quick Guide
10 DET-759A
