3.4.6 Serial Communication
Connect RS-485 serial communication wiring to terminals
(+)68 and (-)69.
•
Shielded serial communication cable is
recommended
•
See 3.4.2 Earth (Grounding) Requirements for
proper grounding

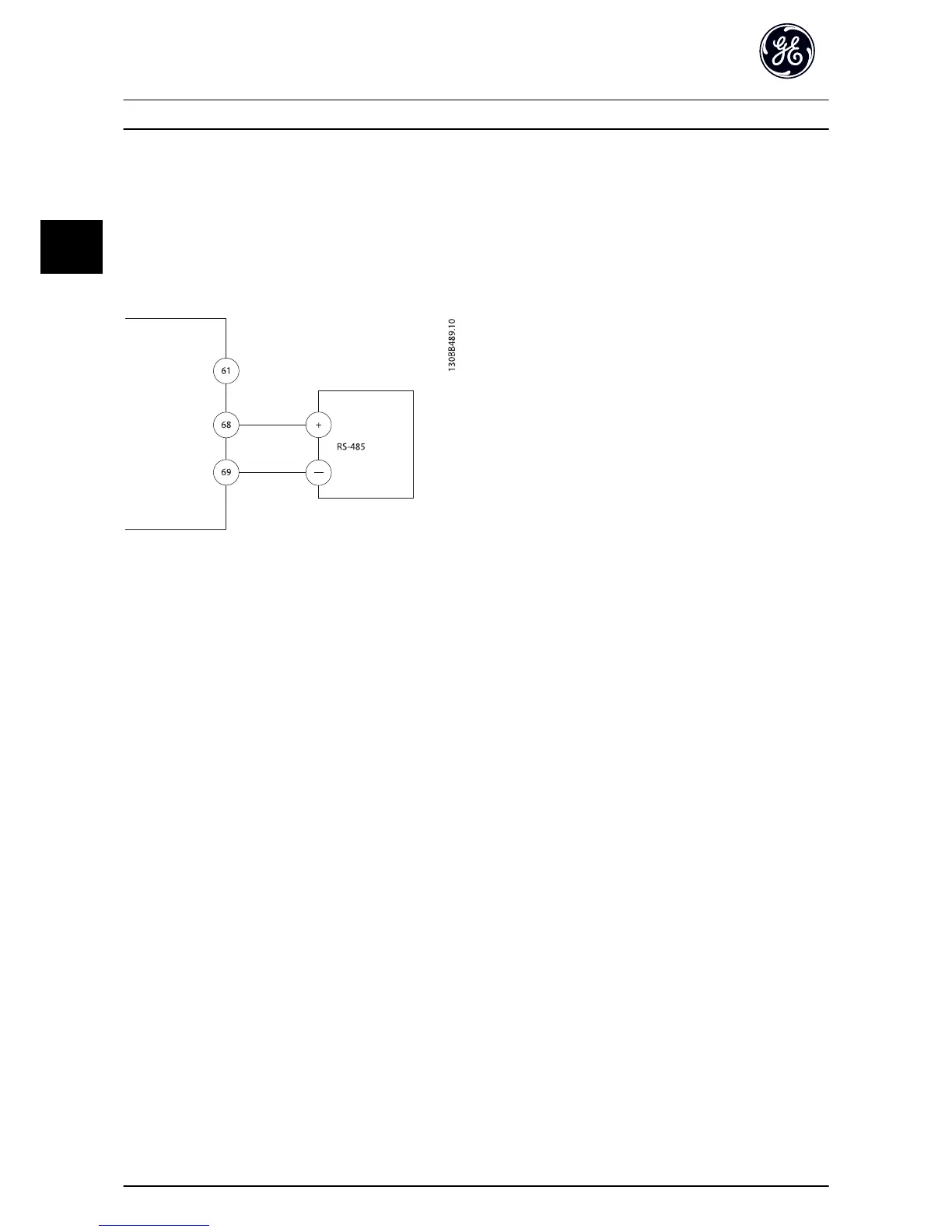

Illustration 3.15 Serial Communication Wiring Diagram
For basic serial communication set-up, select the following
1. Protocol type in O-30 Protocol.
2. Drive address in O-31 Address.
3. Baud rate in O-32 Drive Port Baud Rate.
•
Four communication protocols are internal to the
drive. Follow the motor manufacturer wiring
requirements.
Drive profile
Modbus RTU
Metasys N2
®
Apogee FLN
®
•
Functions can be programmed remotely using
the protocol software and RS-485 connection or
in parameter group O-## Options / Comms
•
Selecting a specific communication protocol
changes various default parameter settings to
match that protocol’s specifications along with
making additional protocol-specific parameters
available.
•
Option cards which install into the drive are
available to provide additional communication
protocols. See the option-card documentation for
installation and operation instructions
Installation AF-600 FP Quick Guide
12 DET-759A
