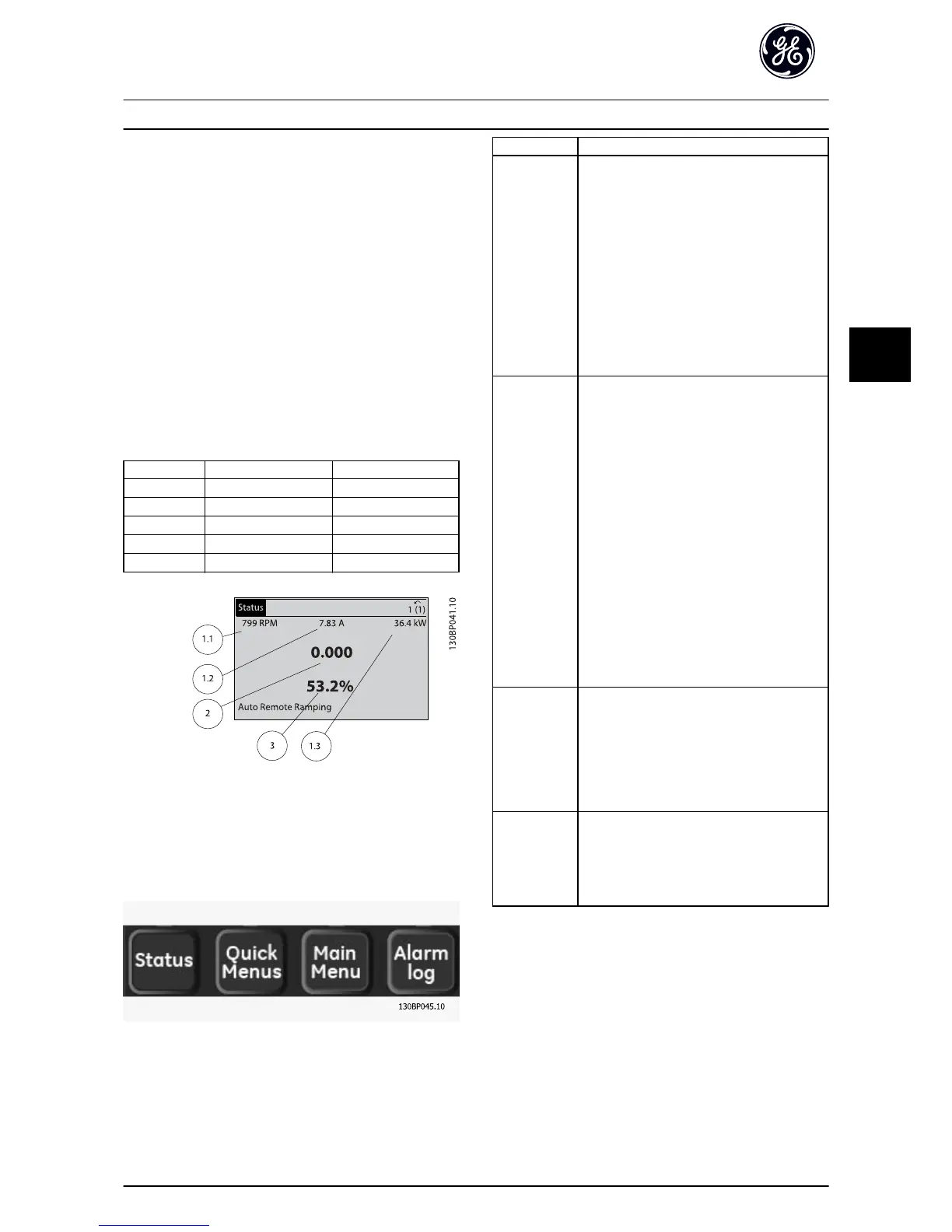

5.1.2 Setting Keypad Display Values
The display area is activated when the adjustable
frequency drive receives power from AC line voltage, a DC
bus terminal, or an external 24 V supply.
The information displayed on the keypad can be
customized for user application.
•
Each display readout has a parameter associated
with it.
•
Options are selected in the menu Keypad Set-up.
•
Display 2 has an alternate larger display option.
•
The adjustable frequency drive status at the
bottom line of the display is generated automat-
ically and is not selectable.
Display Parameter number Default setting
1.1 K-20 Motor RPMs
1.2 K-21 Motor current
1.3 K-22 Motor power (kW)
2 K-23 Motor frequency
3 K-24 Reference in percent
5.1.3 Display Menu Keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key Function
Status Press to show operational information.
•
In Auto mode, press and hold to toggle
between status read-out displays
•
Press repeatedly to scroll through each
status display.
•
Press and hold [Status] plus [
▲
] or [
▼
] to
adjust the display brightness
•
The symbol in the upper right corner of the
display shows the direction of motor
rotation and which set-up is active. This is
not programmable.
Quick Menu Allows access to programming parameters for
initial set-up instructions and many detailed
application instructions.
•
Press to access Quick Start for sequenced
instructions to program the basic frequency
controller set-up
•
Press to access Fan Macros, Pump Macros,
Compressor Macros, or Closed Loop for
sequenced instructions to program
applications
•
Press to access Trending for realtime
logging on keypad display.
•
Press to access Parameter Data Check for
changes in parameter data set.
•
Follow the sequence of parameters as
presented for the function set-up
Main Menu Allows access to all programming parameters.
•
Press twice to access top-level index
•
Press once to return to the last location
accessed.
•
Press and hold to enter a parameter
number for direct access to that parameter.
Alarm Log Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the drive before it entered
the alarm mode, select the alarm number
using the navigation keys and press [OK].
User Interface AF-600 FP Quick Guide
DET-759A 19
5
