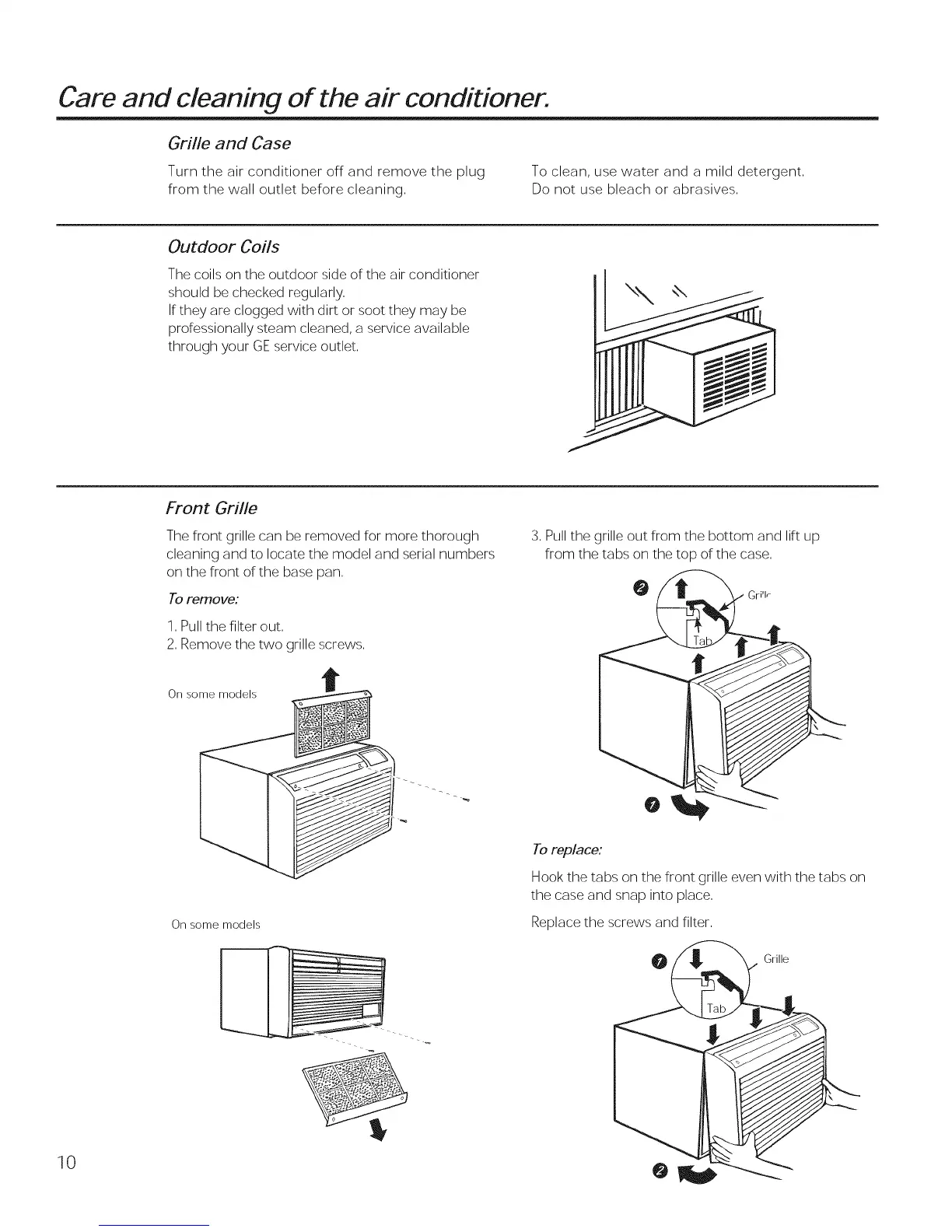

Care and cleaning of the air conditioner.
Grifle and Case
Turn the air conditioner off and remove the plug To clean, use water and a mild detergent,
from the wall outlet before cleaning, Do not use bleach or abrasives,
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly,
If they are clogged with dirt or soot they may be
professionally steam cleaned, a service available
through your GE service outlet,
10
Front Grille
The front grille can be removed for more thorough
cleaning and to locate the model and serial numbers
on the front of the base pan,
To remove:
1, Pull the filter out,
2, Remove the two grille screws,
On some models I
i
On some models
3, Pull the grille out from the bottom and lift up
from the tabs on the top of the case,
To replace:
Hook the tabs on the front grille even with the tabs on
the case and snap into place,
Replace the screws and filter,
0_/ Grille
