GE AJCM08 - An Existing Wall Case; Installation

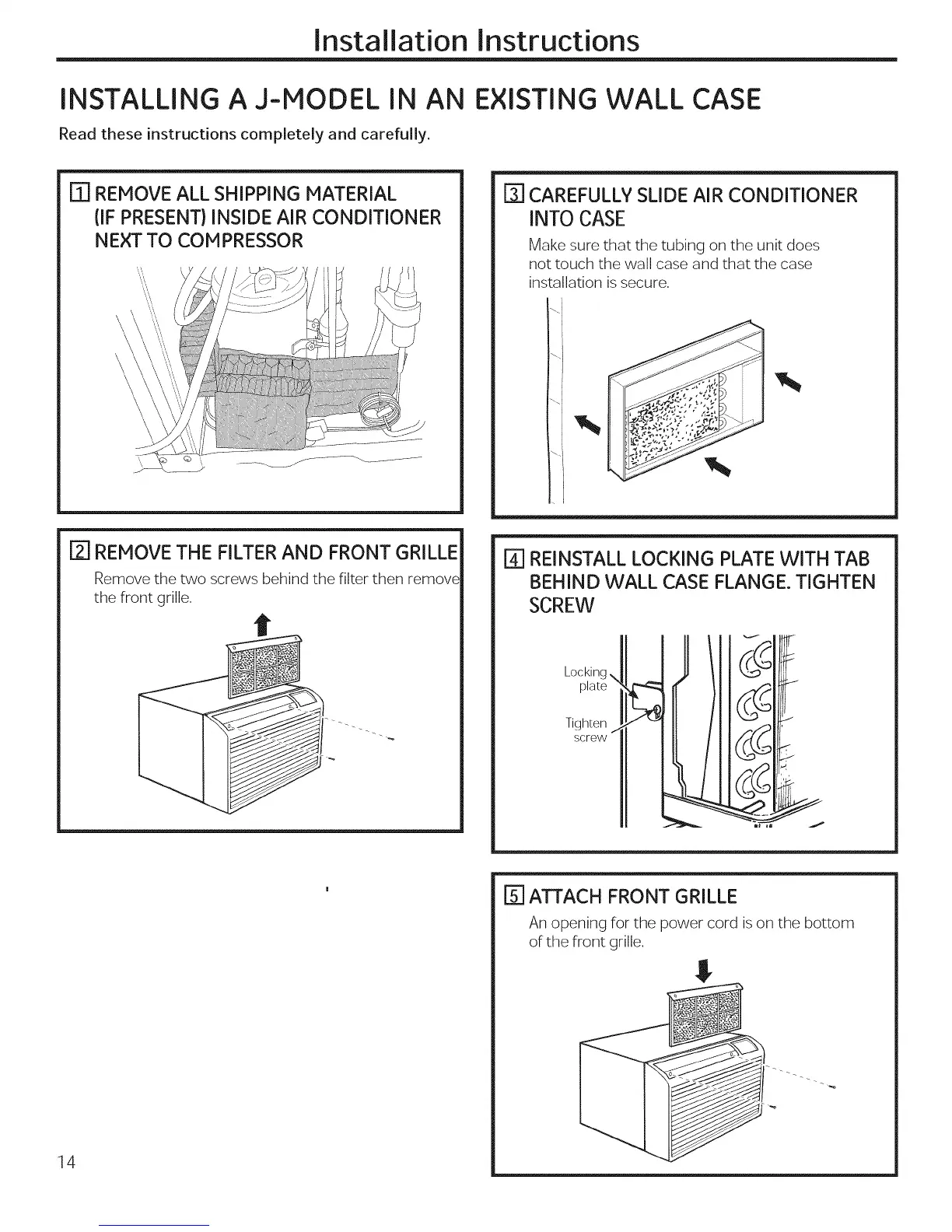

Installation Instructions
INSTALLING A J-MODEL IN AN
Read these instructions completely and carefully.
IT] REMOVE ALL SHIPPING MATERIAL
{IF PRESENT} INSIDE AIR CONDITIONER
NEXT TO COMPRESSOR
EXISTING WALL CASE
r_ CAREFULLY SLIDE AIR CONDITIONER
INTO CASE
Make sure that the tubing on the unit does
not touch the wall case and that the case
installation issecure.
jj j_.--JJ
[_] REMOVE THE FILTER AND FRONT GRILLE
Remove the two screws behind the filter then remove
the front grille.
t
P
1_ REINSTALL LOCKING PLATE WITH TAB
BEHIND WALL CASE FLANGE. TIGHTEN
SCREW
Locking\
plate
Tighten /
screw
/
,iili
((
14
1-51ATTACH FRONT GRILLE
An opening for the power cord is on the bottom
of the front grille.
!
