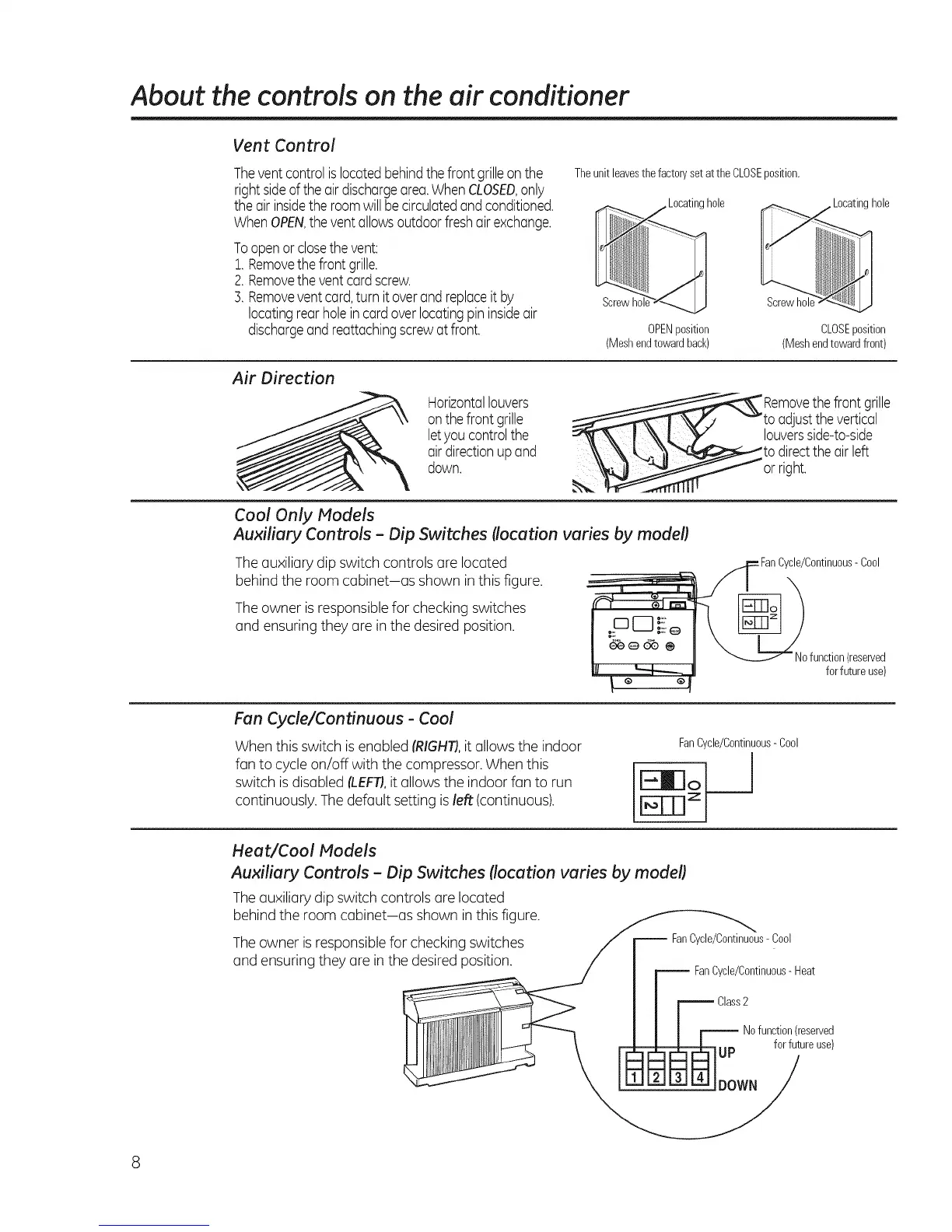

About the controls on the air conditioner
Vent Control
Theventcontrolislocatedbehindthefrontgrilleon the
rightsideoftheair dischargearea.WhenCLOSED,only
theair insidetheroomwill becirculatedand conditioned.
WhenOPEN,the ventallowsoutdoorfreshairexchange.
Toopenor closethe vent:
1.Removethefront grille.
2. Removetheventcardscrew.
3. Removeventcard,turn itoverandreplaceitby
locatingrearholein cardoverlocatingpininsideair
dischargeandreattachingscrewat front.
Theunitleavesthefactorysetatthe CLOSEposition.
ocatinghole
OPENposition
(Meshendtowardback)
hole
Screwhel
CLOSEposition
(Meshendtowardfront)
Air Direction
Horizontallouvers
onthefront grille
letyou controlthe
airdirectionupand
down.
Cool Only Models
Auxiliary Controls - Dip Switches (location varies by model)
Theauxiliary dip switch controls are located
behind the room cabinet-as shown in this figure.
Theowner is responsiblefor checking switches
and ensuring they are in the desired position.
front grille
tjustthe vertical
louversside-to-side
theairleft
ght.
- Cool
(reserved
forfuture use)
Fan Cycle/Continuous - Cool
When this switch is enabled (RIGHT),it allows the indoor
fan to cycleon/off with the compressor. When this
switch isdisabled (LEFT),it allows the indoor fan to run
continuously.The default setting isleft (continuous).
FanCycle/Continuous-Cool
Heat/Cool Models
Auxiliary Controls - Dip Switches (location varies by model)
Theauxiliary dip switch controls are located
behind the room cabinet-as shown in this figure.
Theowner is responsiblefor checkingswitches
and ensuring they are in the desired position.
FanCycle/Continuous- Cool
FanCycle/Continuous- Heat
,t__ Class2
m Nofunction(reserved
UP forfutureuse)
DOWN
