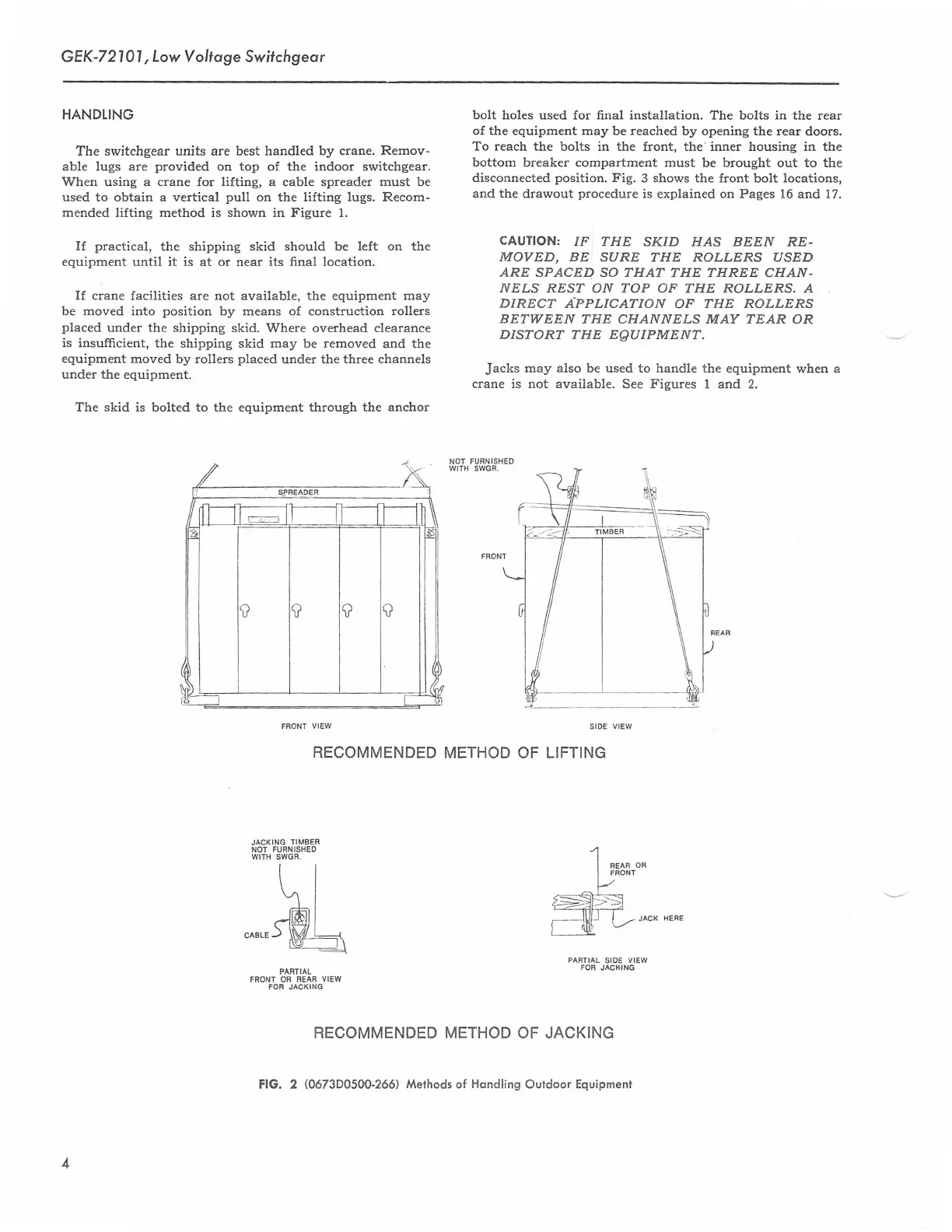

The switchgear units are best handled
by crane.
Remov-
able
lugs
are
provided
on
top of
the indoor
switchgear.
When using a
crane
for lifting, a cable spreader must be
used to obtain a vertical
pull
on the lifting lugs, Recom-
mended lifting method is shown in Figure 1.
If
practical,
the shipping skid should
be left on the
equipment until it is at or near its final location.
If
crane facilities are not available, the equipment
may
be moved into
position
by means of construction rollers
placed
under the
shipping skid. Where overhead clearance
is insufficient, the
shipping skid may be removed
and the
equipment
moved by rollers
placed
under
the
three
channels
under the equipment.
The skid is
bolted
to
the equipment
through the anchor
FRONT
VIEW
RECOMMENDED
JACKING
TIMBER
NOT
FURNISHED
VJITH SWGF.
ll
'1
I
-lffill
"^"..)
[v_L_\
PARTIAL
FRONT OR REAR
VIEW
FON
JACKING
RECOMMENDED METHOD OF JACKING
bolt holes used for final installation.
The bolts in
the
rear
of the
equipment
may be reached
by opening the rear
doors,
To
reach the bolts in the
front,
the'inner housing in the
bottom breaker compartment must
be brought out to the
disconnected
position.
Fig.
3
shows
the front
bolt
locations,
and
the drawout
procedure
is
explained on Pages 16 and 17.
CAUTION:
IF THE
SKID fI.4S BEEN RE-
MOVED, BE
SURE THE ROLLERS USED
ARE SPACED
SO
THAT
THE THREE CHAN-
NEI,S
RES? O1V
TOP
OF THE ROLLERS. A
DIRECT
APPLICATION
OF
THE ROLLERS
BETWEEN
THE CHANNELS
MAY
TEAR
OR
DISTORT THE ESUIPMENT,
Jacks
may also be used to handle the
equipment when a
crane is not
available. See Figures 1 and
2.
NOT
FUFNISHED
WITH
SWGR.
srDE vlEw
METHOD OF LIFTING
JACK
HERE
PARTIAL
SIDE
VIEW
FOR
JACI(ING
FlG.
2
(0673D0500-266)
Methods of
Hondling
Outdoor Equipment
