3-10 ApexPro™ 2001989-351A
Installation and configuration
245A

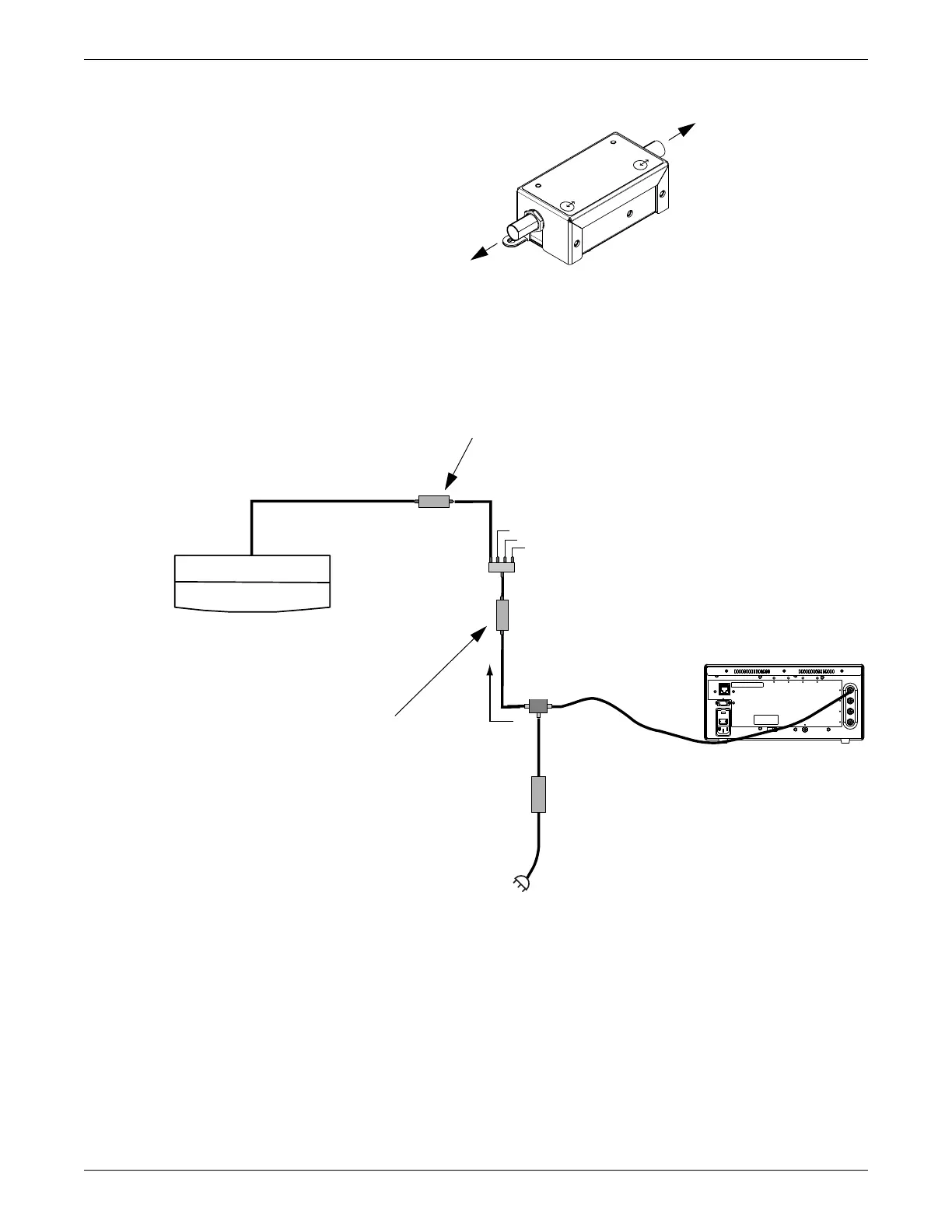

Do not install antenna amplifiers backwards. Note the markings on the amplifier for
installation orientation. If connected backwards, the LED will illuminate, however the
amplifier will not work correctly; there will be signal loss instead of gain.
250A
To receiver system
To antenna
>200 Ft.
Bias
Tee
Power Supply
Antenna
Amplifier
Receiver System
Antenna
To other antennas
DC
4:1
Antenna
Amplifier
Installing antenna amplifier here
increases gain for all antennas
connected to splitter.
Installing antenna amplifier here
increases gain for only one
antenna run.
