GE ApexPro Technical Manual

Troubleshooting
2001989-351A ApexPro™ 5-11
a. Press SPAN.
b. Press F1 - MANUAL SPAN.
c. Press 25.
d. Press kHz.
e. Press ENTER.
8. Set the analyzer reference amplitude to -30 dB.
a. Press AMPT.
b. Press 30.
c. Press GHz/-dBm.
d. Press ENTER.
9. Place the transmitter face up in front of the stand. See the figure below. Make
sure the placement of the transmitter is consistent.
10. Turn on MARKER and place it on the peak of the signal.
11. Turn on averaging to average over 10 samples.
a. Press TRACE.
b. Press F1 - TRACE MODE.
c. Select AVERAGE.
d. Press ENTER.
12. Move away from the analyzer. Your body will affect the measurement, so make
sure your hands are at least 3 feet away from the analyzer, antenna, and
transmitter.
13. Watch the peak signal for 30 seconds and record the highest value you see.
14. Put the transmitter into Pause Alarm mode to force the transmitter to transmit an
RF signal.
To put the transmitter into Pause Alarm mode, do the following:

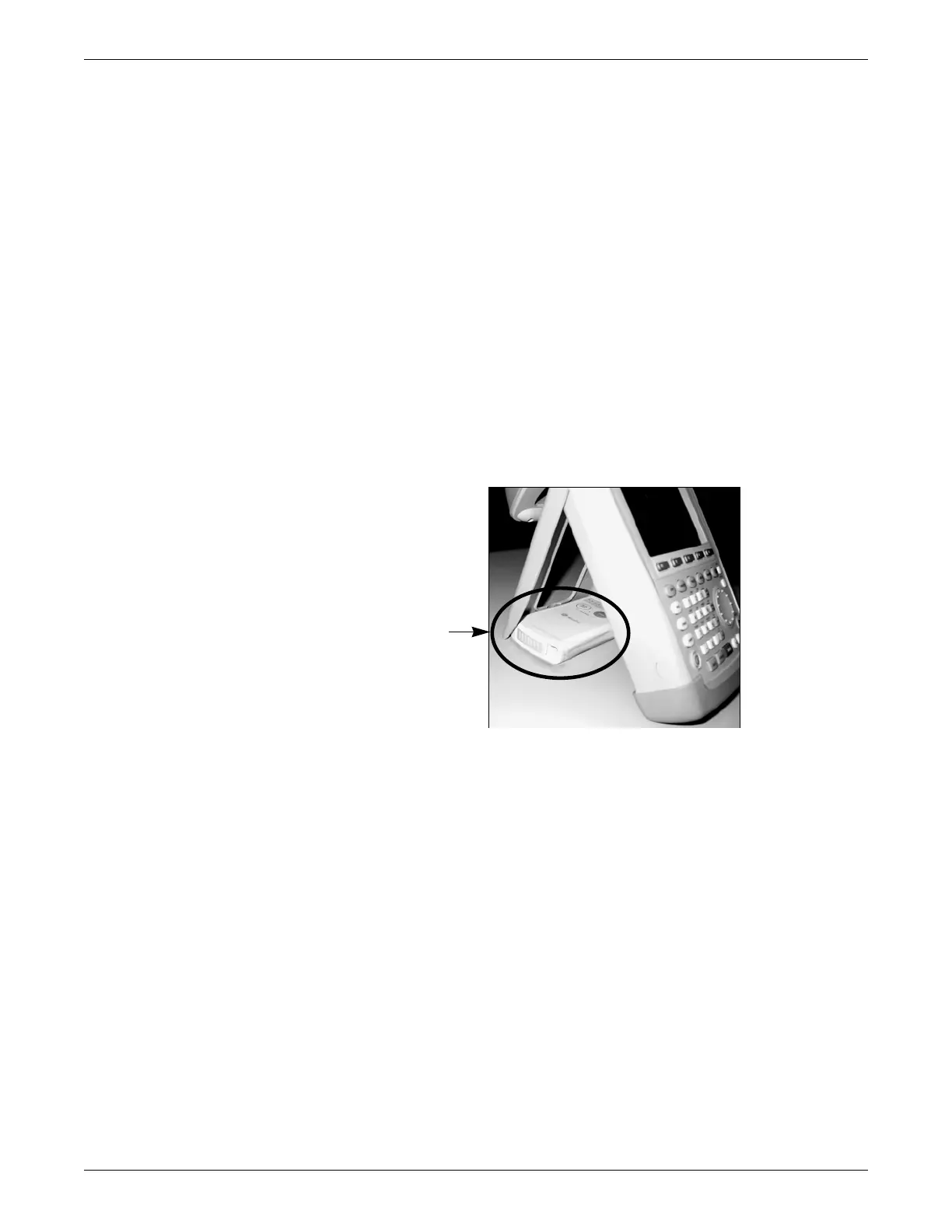

Transmitter
position
