3. Install Main Window Panel and
Extension Panels (cont)

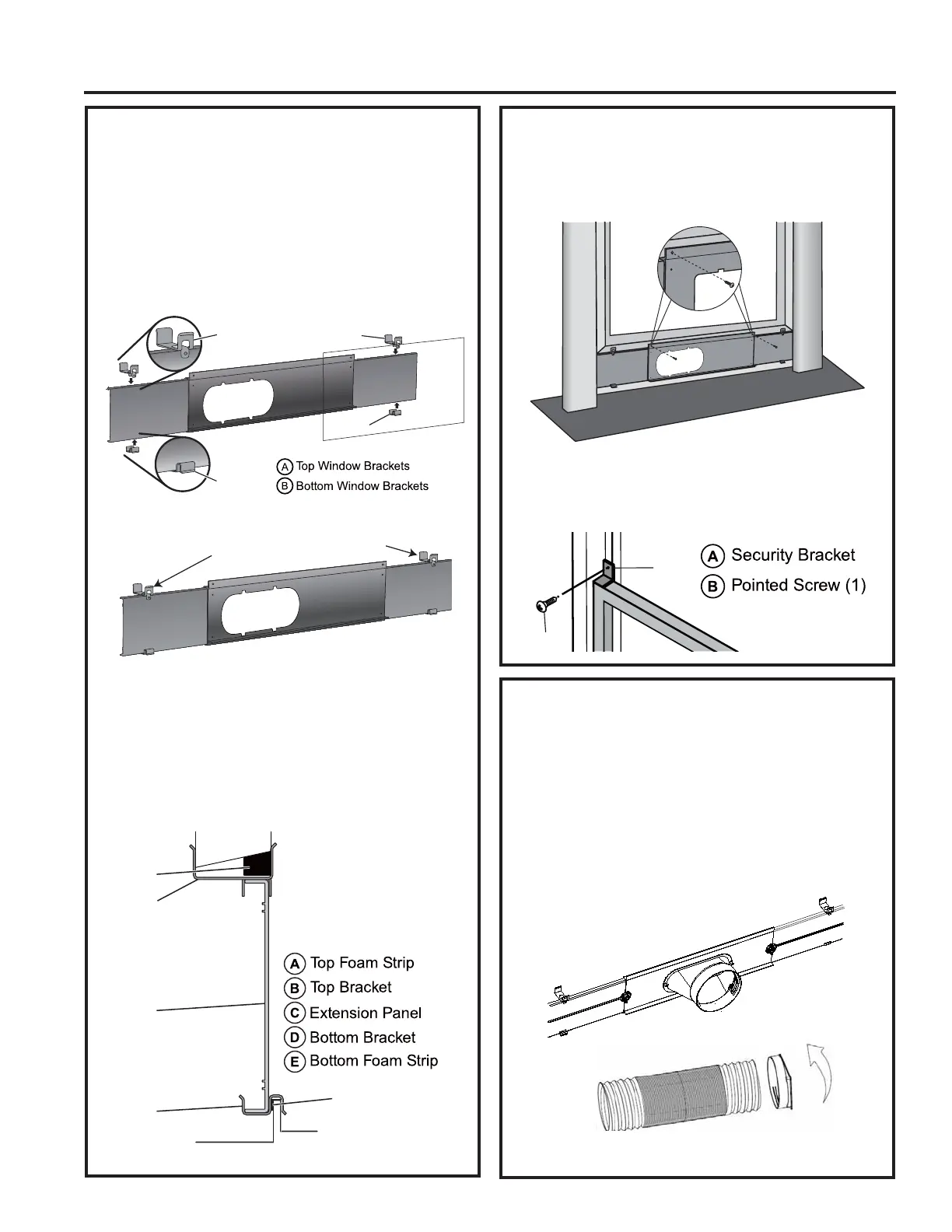

6. Place the window panel assembly in the window,
and using the screws provided, fasten the
assembly to the window sill and window frame.
7. Using one pointed screw, install the Security
bracket to the window.
NOTE: The security bracket prevents the window
from being opened from the outside.
B
A
3. Install Main Window Panel and
Extension Panels (cont)
4. For vinyl windows only.
Skip to step 6 for wood windows.
Place the two top window brackets and two bottom
window brackets where they will best support the
extension panels. Use painted screws to attach top
bracket to the support panels.
5. Apply the top foam strip (provided) across the
top of the window panel assembly, and then
apply the bottom foam strip (provided) across the
bottom front edge of the window panel assembly,
as shown.
A
B
C
D
E
Typical Vinyl Window Installation
Use only for vinyl
A
B
A
B
Before Assembly
Attach with pointed screw(2).
After Assembly
4. Attach Exhaust Hose to the
Exhaust Nozzle
1. Grasp both ends of the exhaust hose and gently
pull to expand fully the ends of the hose. Note:
Do not attach multiple hoses to extend the length,
this would decrease the cooling efficiency and may
cause damage to the air conditioner.
2. Turn hose clockwise and screw into the nozzle in
the window panel. Attach adapter to other end of
hose by turning clockwise.
