GE APFD06JASW

49-5000527 Rev. 3 9

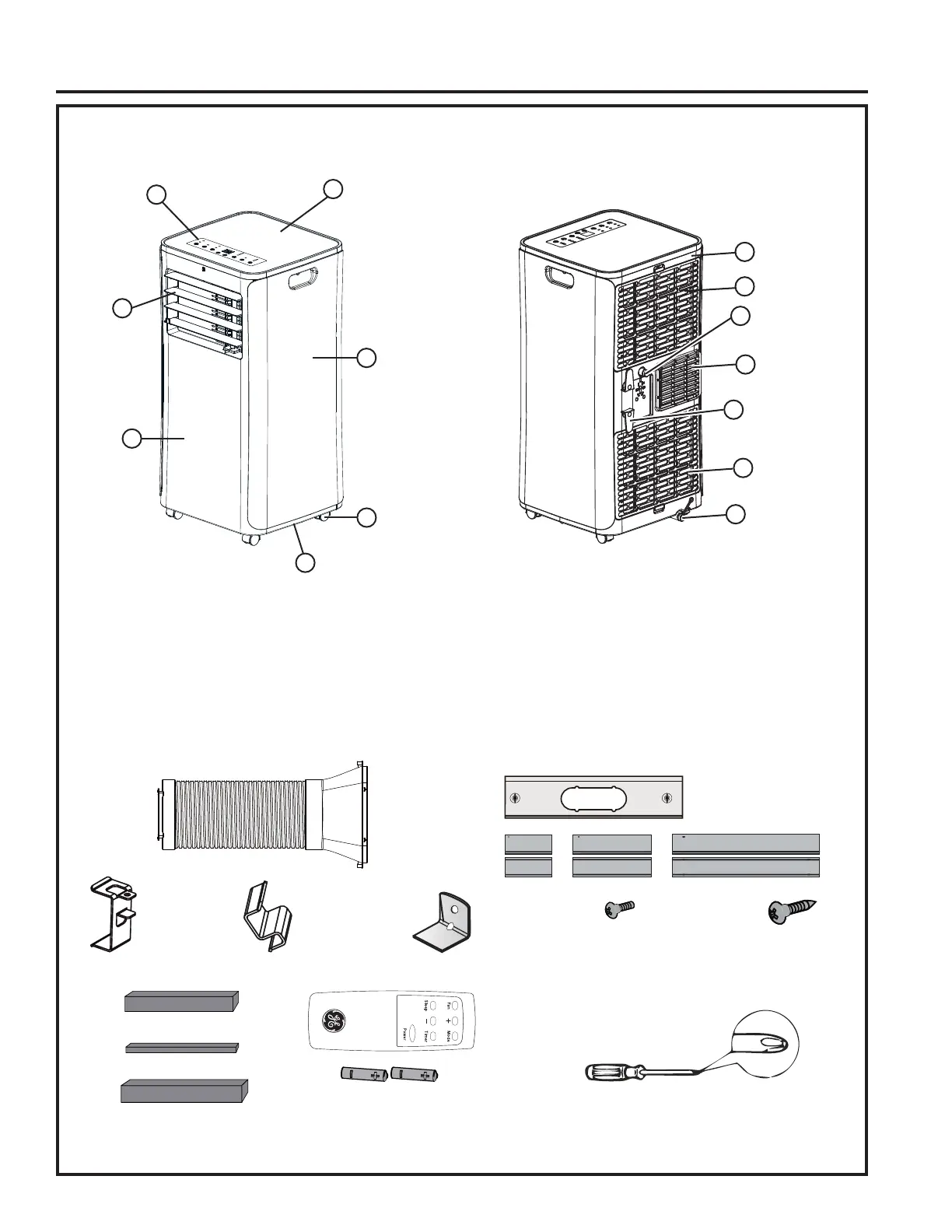

PARTS INCLUDED
(Appearance may vary)
1. Top Cover
2. Control Panel
3. Side Panel
4. Air Outlet / Louver
5. Front Housing
6. Rear Housing
7. Caster
8. Base Pan
9. Upper Filter
10. Upper Continuous Drain
11. Cord Wrapping Post
12. Exhaust Air Vent
13. Lower Filter
14. Lower Drain
INSTALLATION INSTRUCTIONS
Installation Instructions
2
1
3
7
8
5
4
9
6
10
12
11
13
14

Exhaust Hose Assembly
Remote Control
Batteries (2)
Phillips head screwdriver
(Not Included)
TOOLS YOU WILL NEED
Window Mounting Kit
1 pc – 20” Center Panel
SF±ï»๜´(QWHQVLRQ
1 pc – 9” Extension
2 pc – 16” Extensions
Pointed Screws (7)
2 – Top Window Bracket
1 – Security Bracket
4 – Main Window Panel
Security BracketBottom Window Bracket (2)Top Window Bracket (2)
Top Foam Strip
Bottom Foam Strip
Foam Strip
Flat Tip Screw
For exhaust nozzle to
main window panel.
