GEAppliances.com
Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.
I^ I
I_WARNINGI/fyour rangeisremovedforcleaning,servicingoranyreason,be
sure the anti-tip device is reengaged properly when the range is replaced. Failure to take
this precaution could result in tipping of the range and cause injury.
Tocheck if the bracket is installed and engaged properly, carefully tip the range forward. The
bracket should stop the range within 4 inches.If it does not, the bracket must be reinstalled.
If the range is pulled from the wall for any reason, always repeat this procedure to verify the
range is properly secured by the anti-tip bracket.
Ifyour range has no anti-tip bracket, call !.800.626.8774 to receive one at no cost.
Turnall controls OFF before removing the
burner parts.

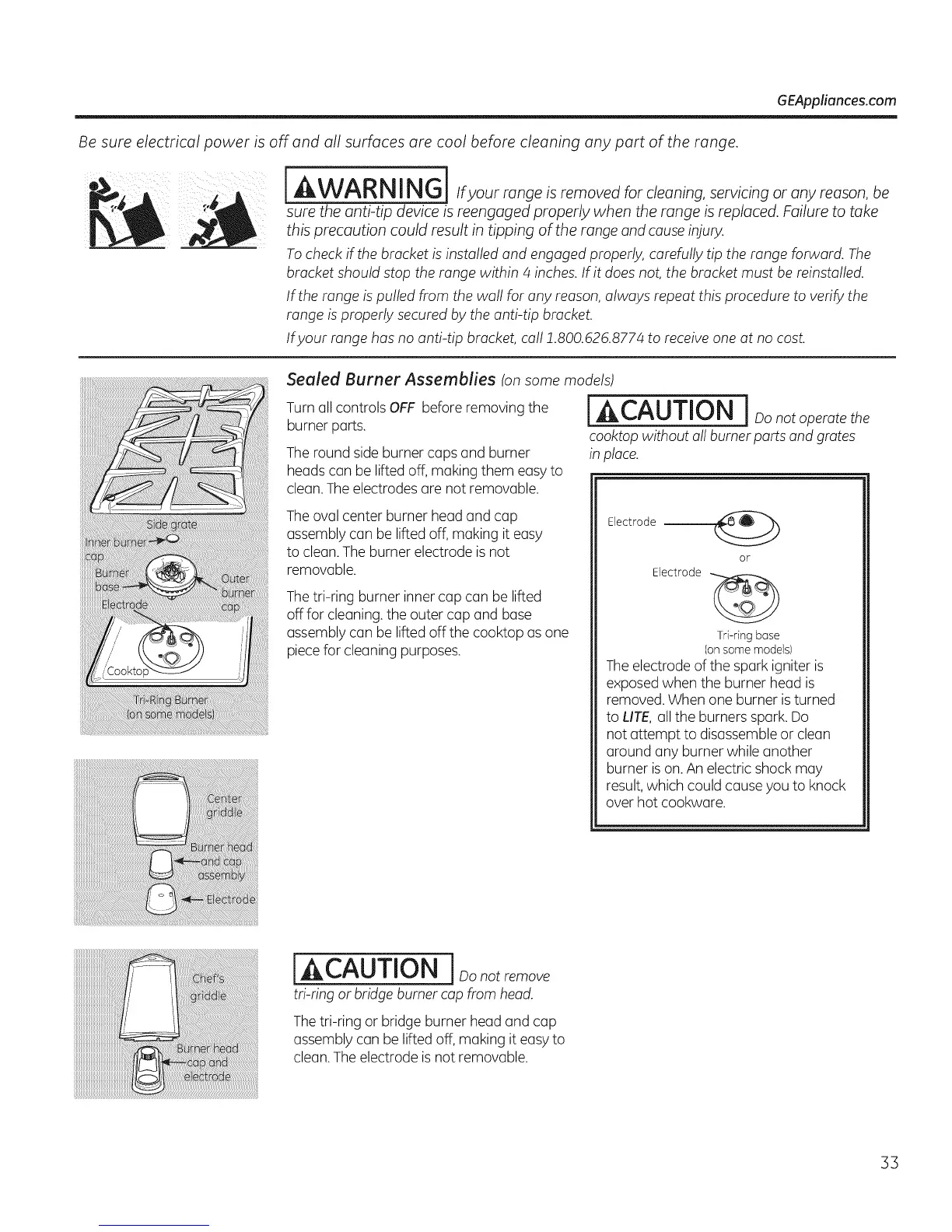

Theround side burner caps and burner
heads can be lifted off, making them easy to
clean.The electrodesare not removable.
Sealed Burner Assemblies fan some models)
[ACAUTION i _onotoperotethe
cooktop without all burner parts and grates
in place.
Theoval center burner head and cap
assembly can be lifted off,making it easy
to clean. Theburner electrode isnot
removable.
Thetri-ring burner inner cap can be lifted
off for cleaning, the outer cop and base
assembly can be lifted off the cooktop as one
piecefor cleaning purposes.
Electrode --
or
Electrode
Tri-dng bose
(onsome models)
Theelectrode of the spark igniter is
exposed when the burner head is
removed.When one burner isturned
to LITE,all the burners spark.Do
not attempt to disassembleor clean
around any burner while another
burner ison. An electric shock may
result,which could cause you to knock
over hot cookware.
!iiiiiiiiiiiiiiii
IACAUTION I_onotremove
tri-ring or bridge burner cap from head.
Thetri-ring or bridge burner head and cap
assembly can be lifted off, making it easyto
clean. Theelectrode isnot removable.
33
