GE Arize Element L1000 Gen2 - Light Module Installation; Installation of Module Brackets

4
Arize Element
®
L1000 Gen2 Installation Guide
1 Installation of the Light Module
Install brackets at location A.
Press down on bracket until hooks snap into
place. Ensure bracket hooks catch bottom
edge of heatsink.
Slide down bracket along channels.
SNAP! SNAP!
If not preassembled, install light module brackets on light module.

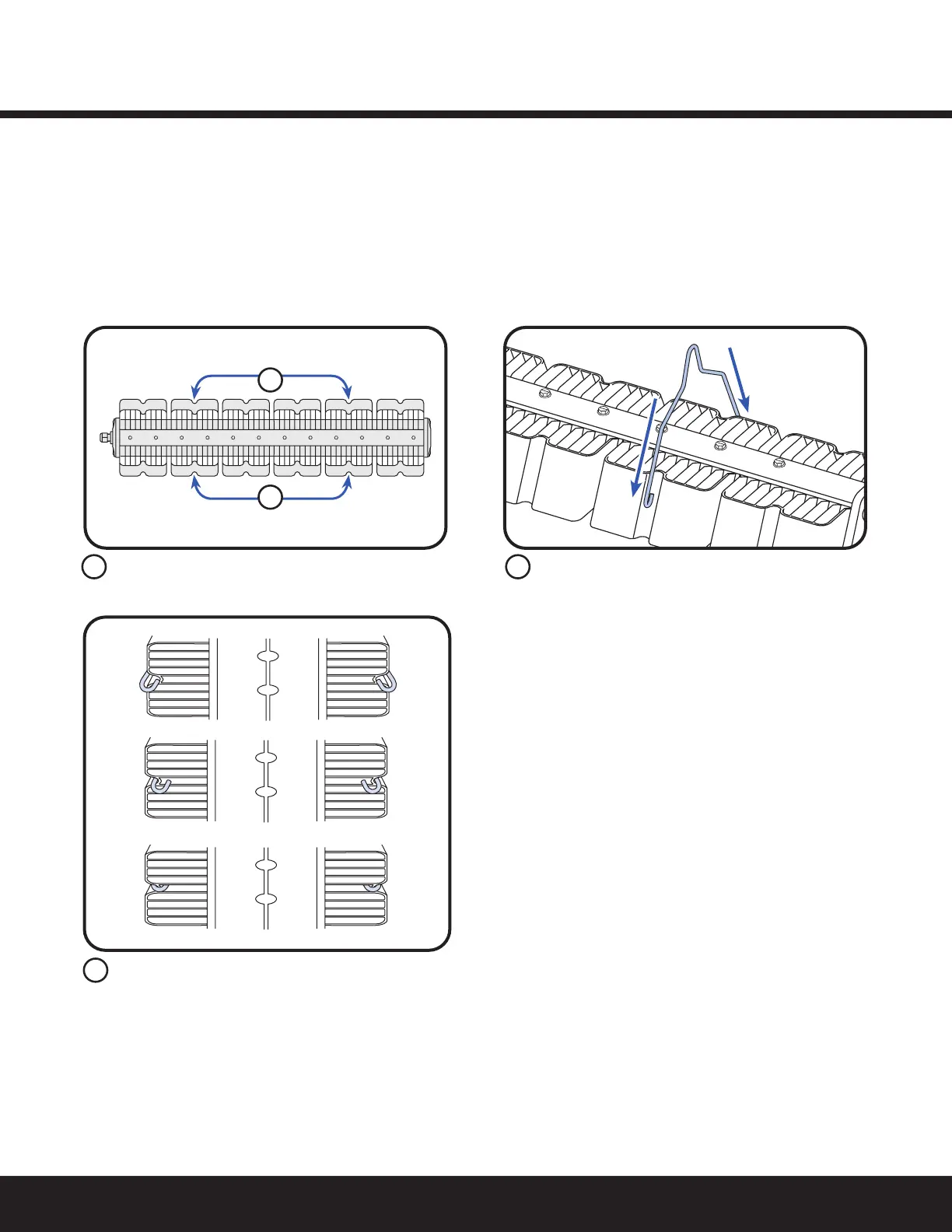

1.1 Installation of Module Brackets
1
3
2
A
A
