GE Arize Element L1000 Gen2 - Selection of Mounting Hardware; Installation with Standard and Offset Hangers

5
Arize Element
®
L1000 Gen2 Installation Guide
Place light module hanger
over structural member and
snap hanger in place.
Hang one xture bracket on one hook, hang opposite xture
bracket onto other hook by pressing hanger arms together.

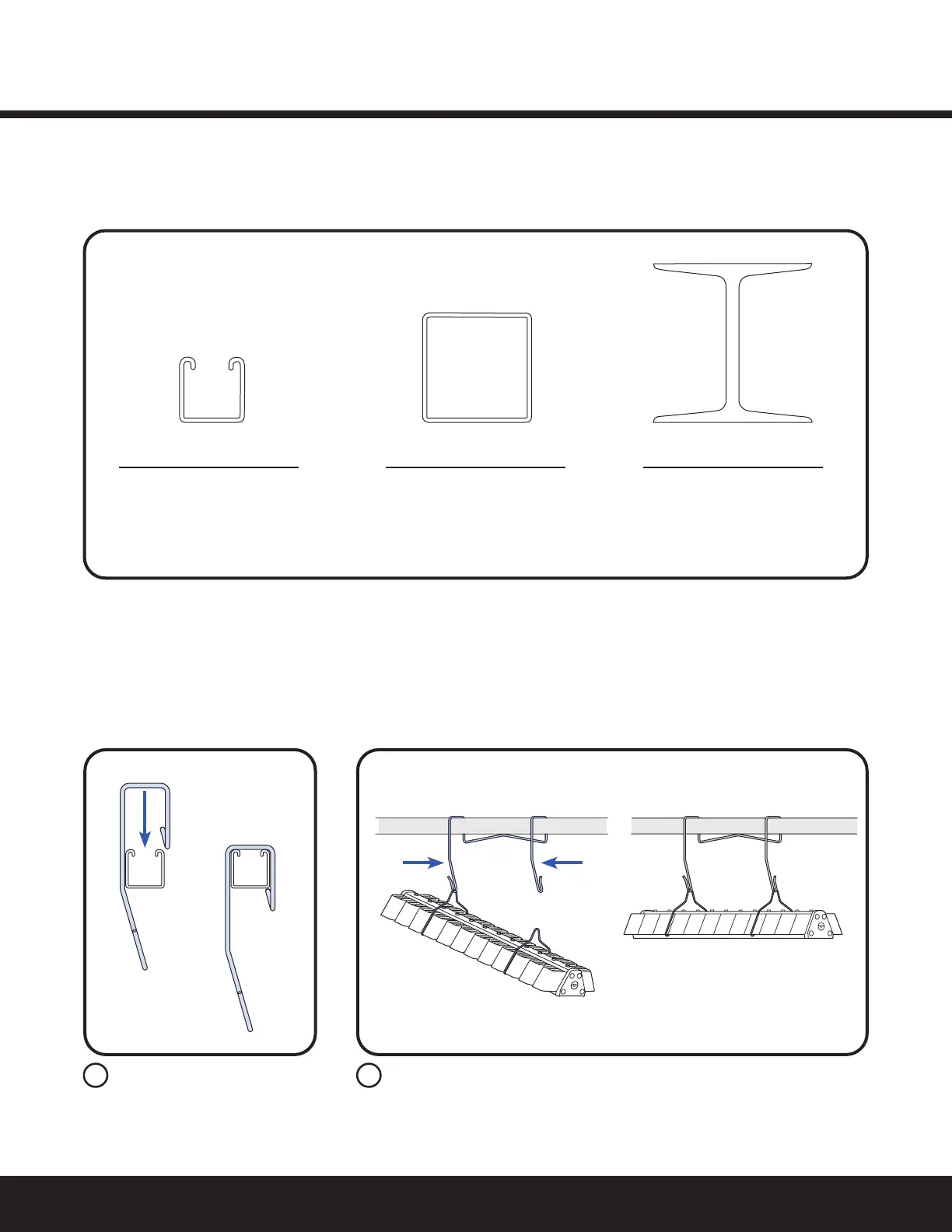

Based on the cross section of the structural member select the correct hanger or mounting cable.
1.2 Selection of Mounting Hardware
1.3 Installation with Standard and Oset Hangers
SNAP!
Use standard hanger 41 mm
OR
Oset hanger 41 mm
to clear the bottom of the Unistrut
Use standard hanger 70 mm Use 0.5 m or 1.5 m universal cable
OR
Perpendicular (90°)
universal mounting kit
Unistrut 41 mm Square 70 mm Other Structural Members
1 2
